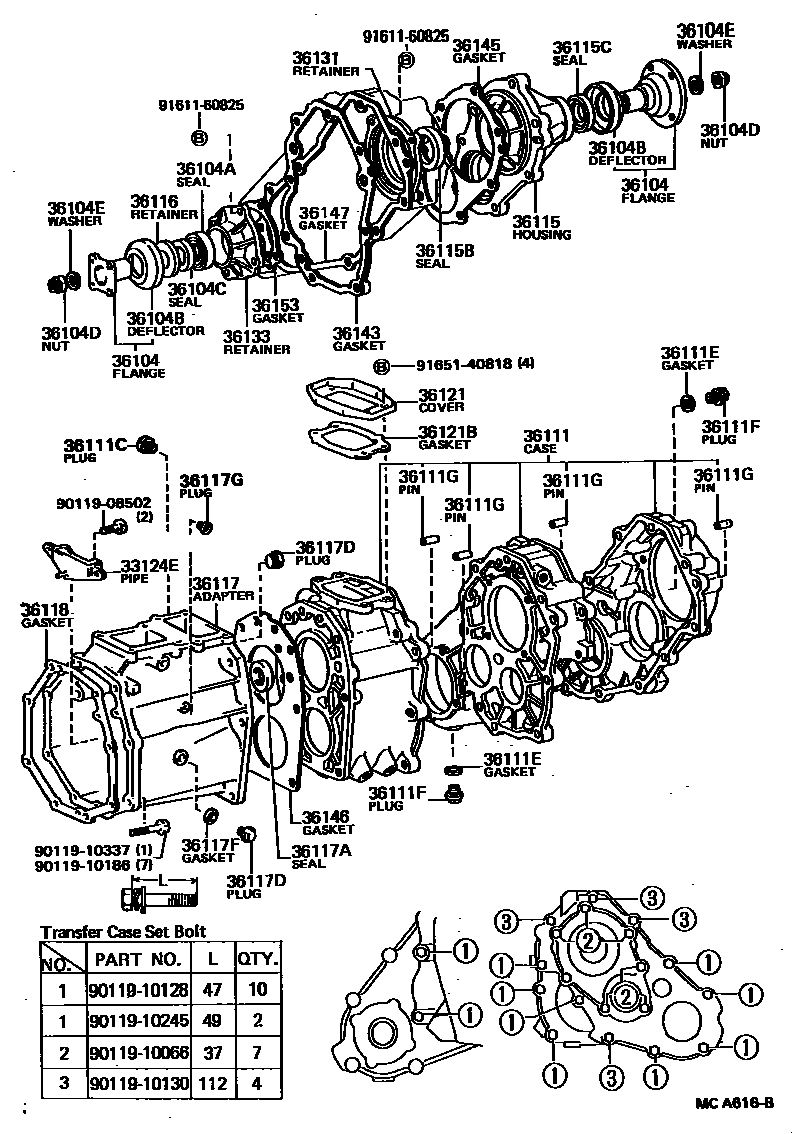

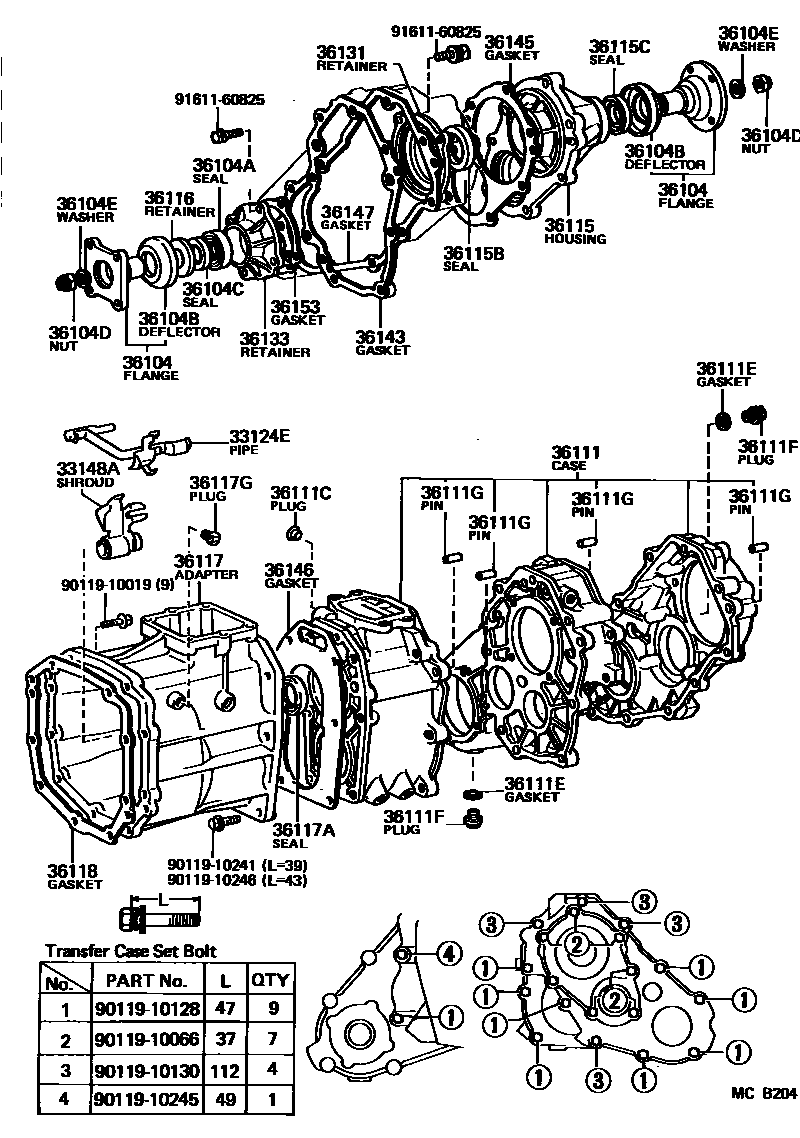

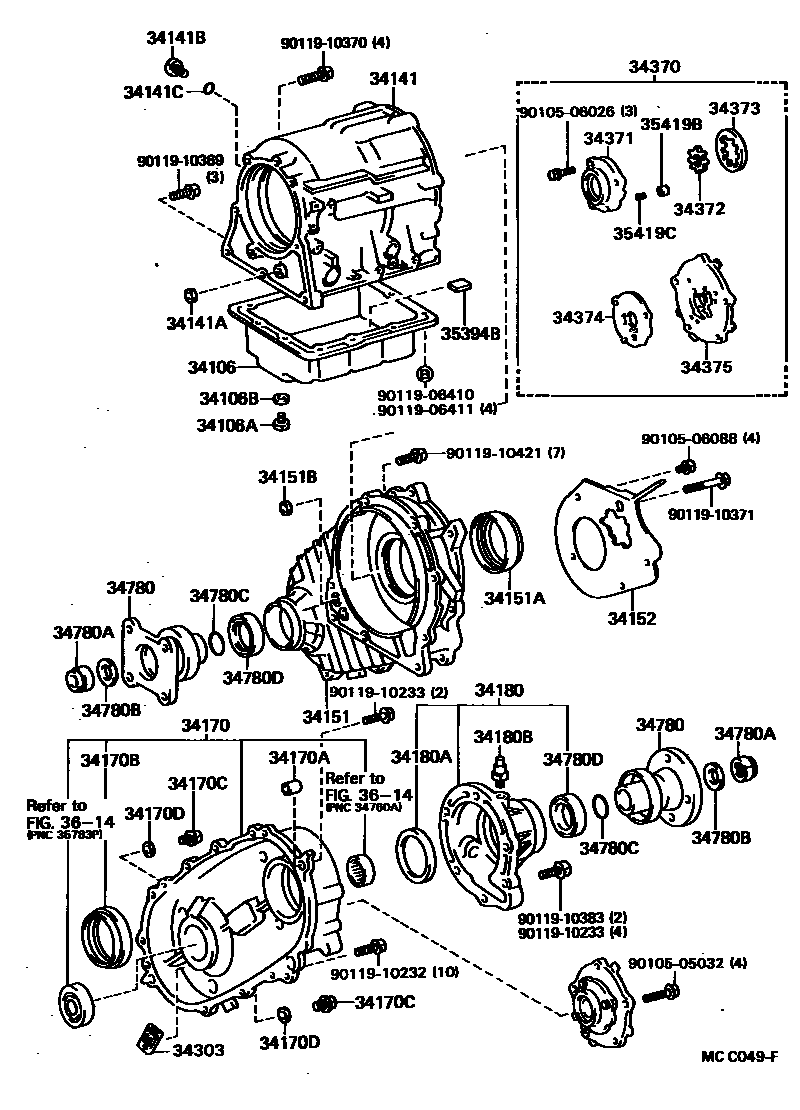

Toyota HILUX Transfer Case & Extension Housing — Figure 3609
Toyota HILUX EPC diagram 3609, Transfer Case & Extension Housing, with 3 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33124E | Oil collector pipe (for transfer case) | 33106-35010 · 33124-35020 |
| 33148A | No. 1 gear cover (for transfer case) | 33148-22010 |
| 34106 | Transfer case oil pan sub-assembly | 34106-35010 |
| 34106A | Screw plug (for transfer case oil pan) | 90341-10006 |
| 34106B | Gasket (for transfer case oil pan) | 35178-30010 |
| 34141 | automatic transfer case | 34141-35010 |
| 34141A | Gasket (for automatic transfer case) | 35148-16010 |
| 34141B | Screw plug (for automatic transfer case) | 90341-08001 |
| 34141C | O-ring (for automatic transfer case) | 90301-06196 |
| 34151 | Transfer case front chain box | 34151-35020 |
| 34151A | Oil seal (for transfer case chain case) | 90316-58002 |
| 34151B | Gasket (for transfer case front chain case) | 35148-16010 |
| 34152 | Transfer case chain oil sump | 34152-35010 |
| 34170 | Transfer case rear chain box assembly | 34170-35020 |
| 34170A | Direct sales (for transfer case chain box) | 90250-13003 |
| 34170B | Oil seal (for transfer case chain case) | 90316-58002 |
| 34170C | Screw plug (for transfer case chain case) | 90341-18021 · 90341-18049 |
| 34170D | Gasket (for transfer case chain case) | 90430-18008 |
| 34180 | Transfer case extension housing assembly | 34180-35010 |
| 34180A | Extended shell sump | 34182-35010 · 34182-35011 |
| 34180B | Breather plug (for transfer case extension housing) | 90930-03031 |
| 34303 | Transfer case oil filter sub-assembly | 34303-35010 |
| 34370 | Transfer case oil pump assembly | 34370-35010 |
| 34371 | Automatic transfer case oil pump body | 34371-35010 |
| 34372 | Transfer case oil pump drive gear | 34372-35010 |
| 34373 | Transfer case oil pump driven gear | 34373-35010 |
| 34374 | Automatic transfer case oil pump plate | 34374-35010 |
| 34375 | Automatic transfer case oil pump cover | 34375-35010 |
| 34780 | Flange fork assembly | 34780-35010 · 34780-35020 |
| 34780A | Nut (for flange fork) | 90179-20001 |
| 34780B | Flat washer (for flange fork) | 90201-20005 |
| 34780C | O-ring (for flange fork) | 90301-26190 |
| 34780D | Oil seal (for flange fork) | 90316-40001 |
| 35394B | Oil filter magnet (for transfer case) | 35394-30011 |
| 35419B | One-way valve | 35419-35010 |
| 35419C | Compression spring (for one-way valve) | 90501-06015 |
| 36104 | Combination flange (for transfer case output shaft) | 33309-35030 · 33309-35040 |
| 36104A | T-type oil seal (for transfer case output shaft) | 90311-38016 |
| 36104B | Dust cover (for transfer case output shaft) | 33325-35020 |
| 36104C | Dust seal (for transfer case output shaft) | 90303-38010 |
| 36104D | Nut (for transfer case output shaft) | 90179-20001 |
| 36104E | Flat washer (for transfer case output shaft) | 90201-20005 |
| 36111 | transfer case | 36103-35012 · 36103-35013 · 36103-35030 · 36103-35031 |
| 36111C | Screw plug (for transfer case) | 90341-14008 |
| 36111E | Gasket (for transfer case) | 90430-18007 · 90430-18008 |
| 36111F | Screw plug (for transfer case) | 90341-18006 · 90341-18057 · 90341-18081 |
| 36111G | Direct sales (for transfer case) | 90250-10232 |
| 36115 | Transfer case extension housing | 36115-35010 |
| 36115B | V-shaped oil seal (for transfer case extension case) | 90312-48001 |
| 36115C | T-type oil seal (for transfer case extension case) | 90311-38140 |
| 36116 | Transfer case extension housing dust seal retainer | 33145-30010 |
| 36117 | Transfer case clutch | 36107-35050 · 36117-35040 · 36117-35090 |
| 36117A | Oil seal (for transfer case clutch) | 90311-32009 · 90311-32011 |
| 36117D | Thread plug (for transfer case adapter) | 90341-18006 · 90341-30003 |
| 36117F | Gasket (for transfer case adapter plug) | 90430-18007 · 90430-18008 |
| 36117G | Headed straight thread plug (for transfer case adapter) | 90341-10065 · 90341-12008 |
| 36118 | Transfer case clutch gasket | 33138-28020 · 33142-22010 |
| 36121 | No. 1 transfer case cover | 36121-35010 |
| 36121B | Transfer case cover gasket | 36147-35010 |
| 36131 | Transfer case output shaft front bearing retainer | 36131-35010 |
| 36133 | Transfer case front drive gear bearing retainer | 36133-35010 |
| 36143 | Front transfer case gasket | 36143-35010 |
| 36145 | Transfer case extension housing gasket | 36145-35010 |
| 36146 | Transfer gearbox gasket | 36146-35020 · 36146-35021 |
| 36147 | Transfer case gasket | 36141-35010 |
| 36153 | Front driving gear bearing retainer gasket | 36153-35010 |
