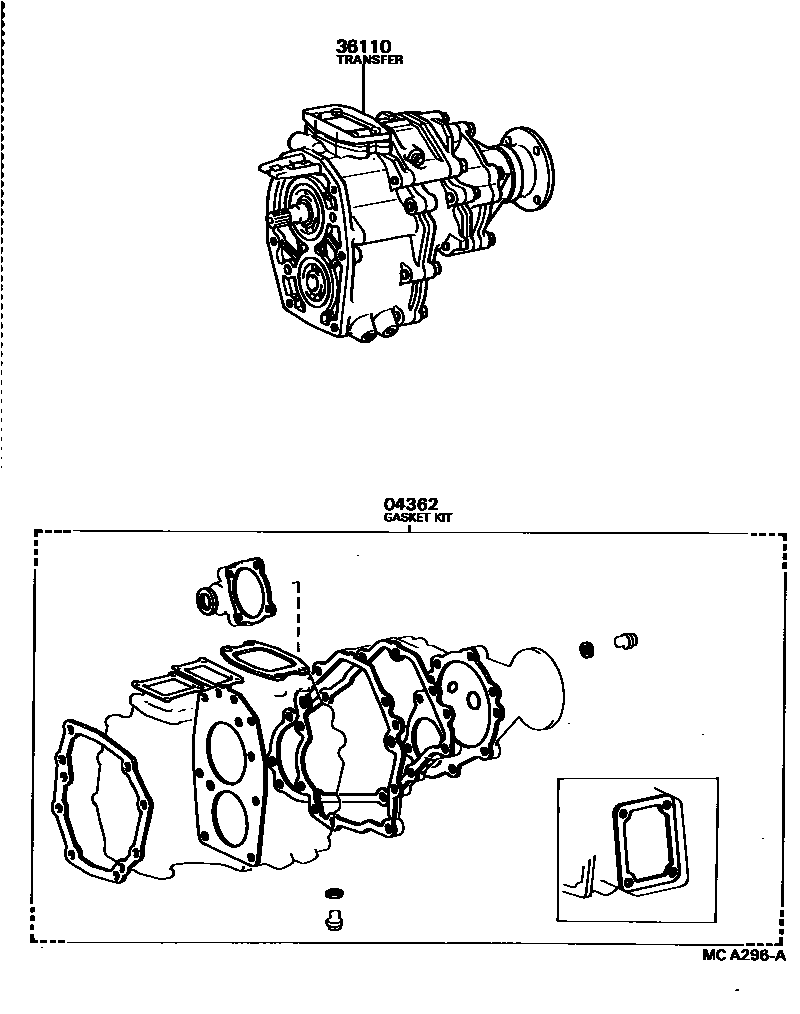

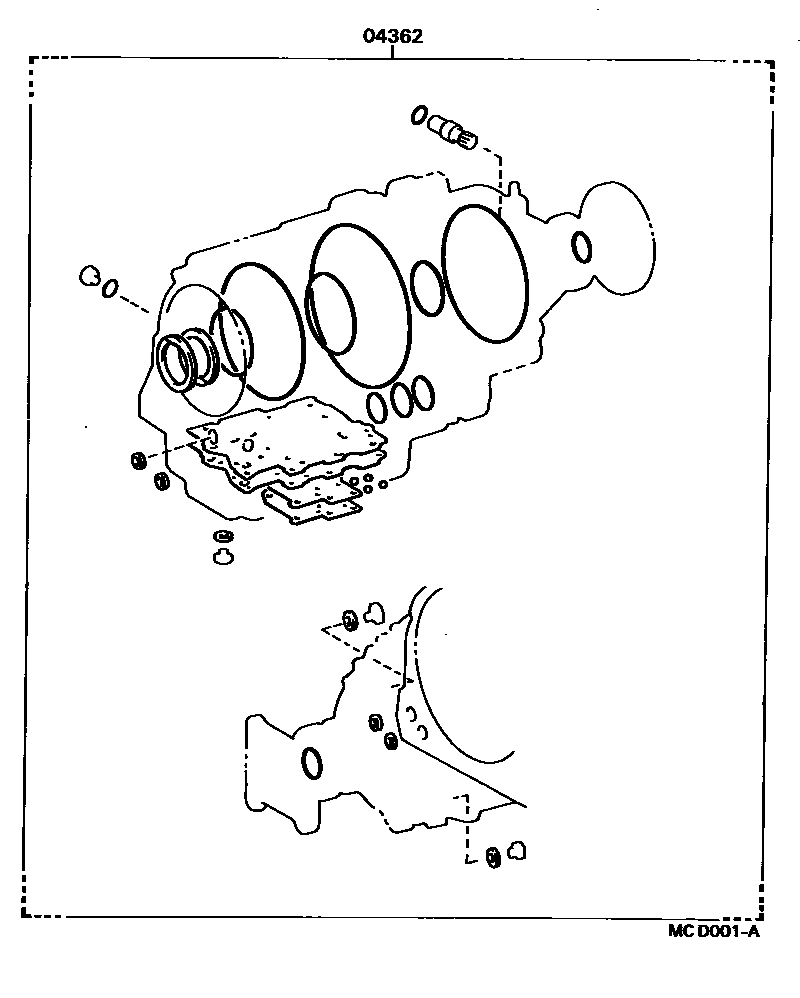

Toyota HILUX Transfer Assembly & Gasket Kit — Figure 3608
Toyota HILUX EPC diagram 3608, Transfer Assembly & Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04362 | Transfer case overhaul gasket assembly | 04362-35012 · 04362-35013 · 04362-35020 |
| 36110 | Transfer case assembly | 36100-35200 · 36100-35201 · 36100-35220 · 36100-35250 · 36100-35260 |
