Toyota HILUX 变速器壳和油底壳(ATM) — Figure 3503

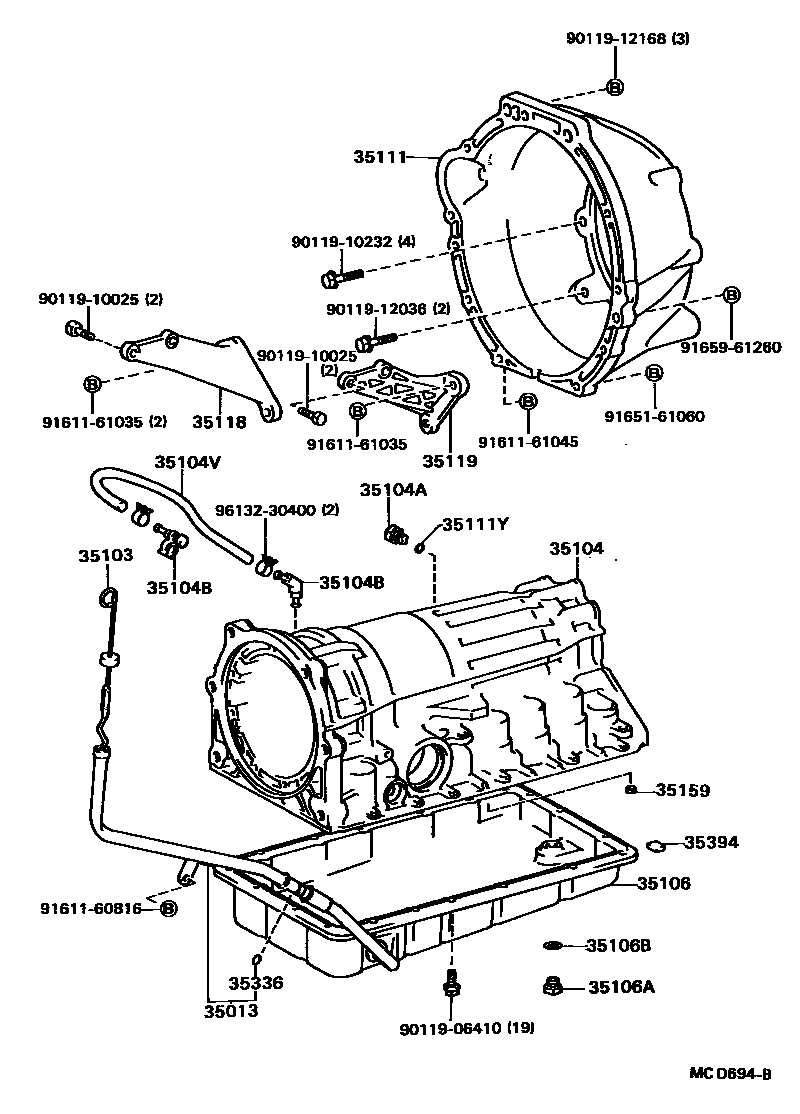

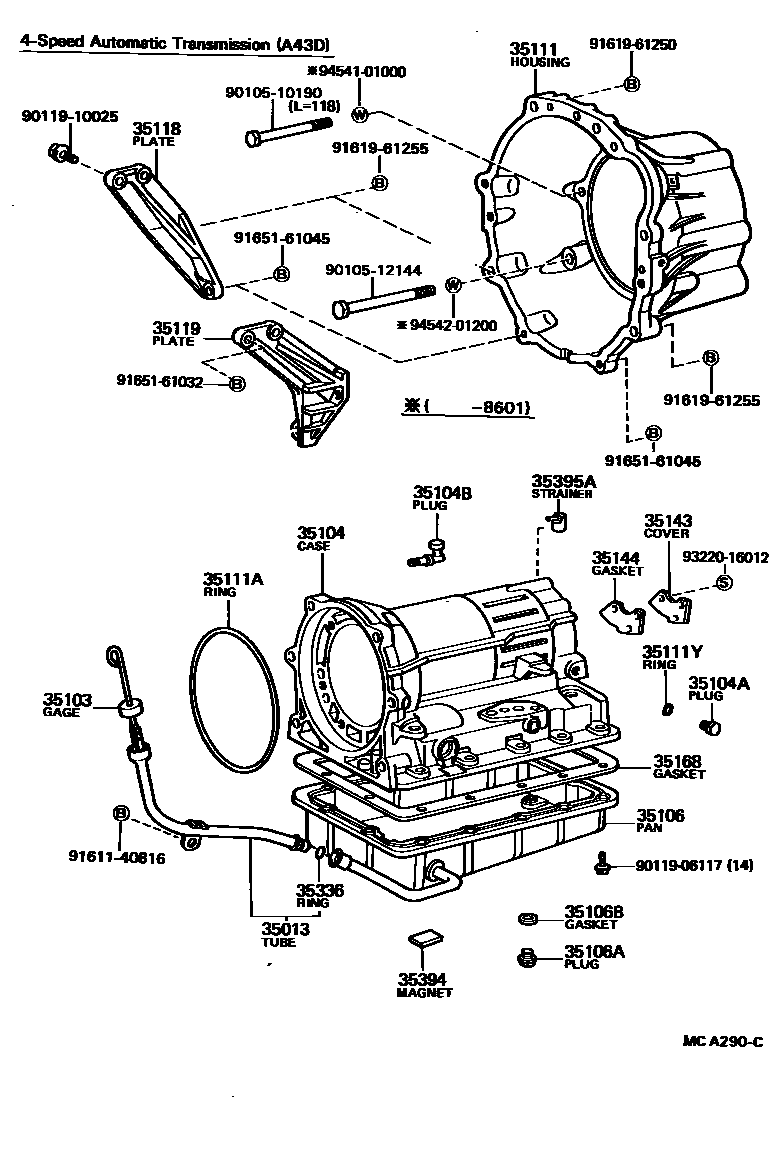

Toyota HILUX EPC diagram 3503, 变速器壳和油底壳(ATM), with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35013 | Transmission oil pipe sub-assembly | 35013-30080 · 35013-35070 |
| 35103 | Transmission oil level scoring assembly | 35103-30101 · 35103-35050 |
| 35104 | Automatic transmission housing sub-assembly | 35104-26020 · 35104-26021 · 35104-35011 |
| 35104A | automatic transmission plug | 90341-08001 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03069 · 90930-03098 · 90930-03099 |
| 35104V | Hoses (for breather plug) | 90445-10020 |
| 35106 | Automatic transmission oil pan sub-assembly | 35106-30040 · 35106-35010 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-10006 |
| 35106B | Drain plug gasket (ATM) | 35178-30010 |
| 35111 | automatic transmission housing | 35111-22060 · 35111-35040 |
| 35111A | O-ring (for automatic transmission housing) | 90301-99006 · 90301-99054 |
| 35111Y | O-ring (for automatic transmission) | 90301-06196 |
| 35118 | Right reinforcement plate (ATM) | 33118-25020 · 33118-28010 |
| 35119 | Left reinforcement plate (ATM) | 33119-25020 · 33119-28010 |
| 35143 | Gearbox rear cover | 35143-22010 |
| 35144 | Transmission rear cover gasket | 35144-22010 |
| 35159 | brake drum gasket | 35159-30010 · 35159-32010 |
| 35168 | Automatic transmission oil pan gasket | 35168-22011 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
| 35395A | governor oil filter | 35395-40010 |
