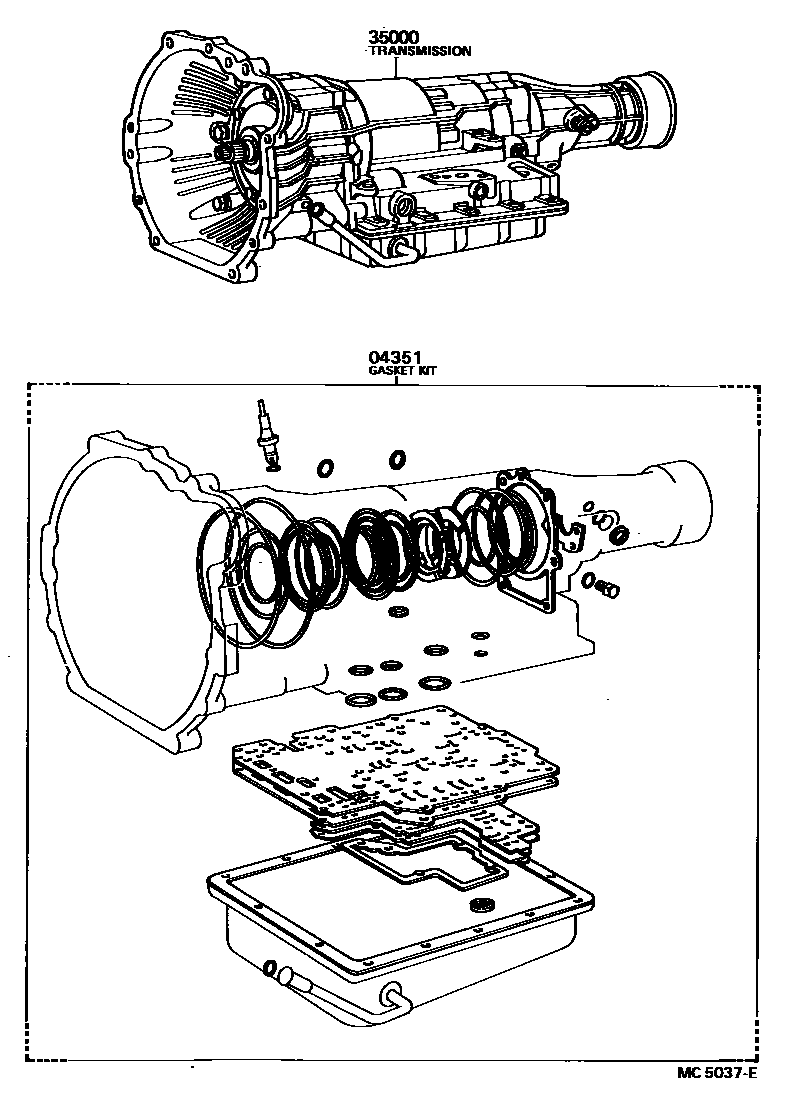

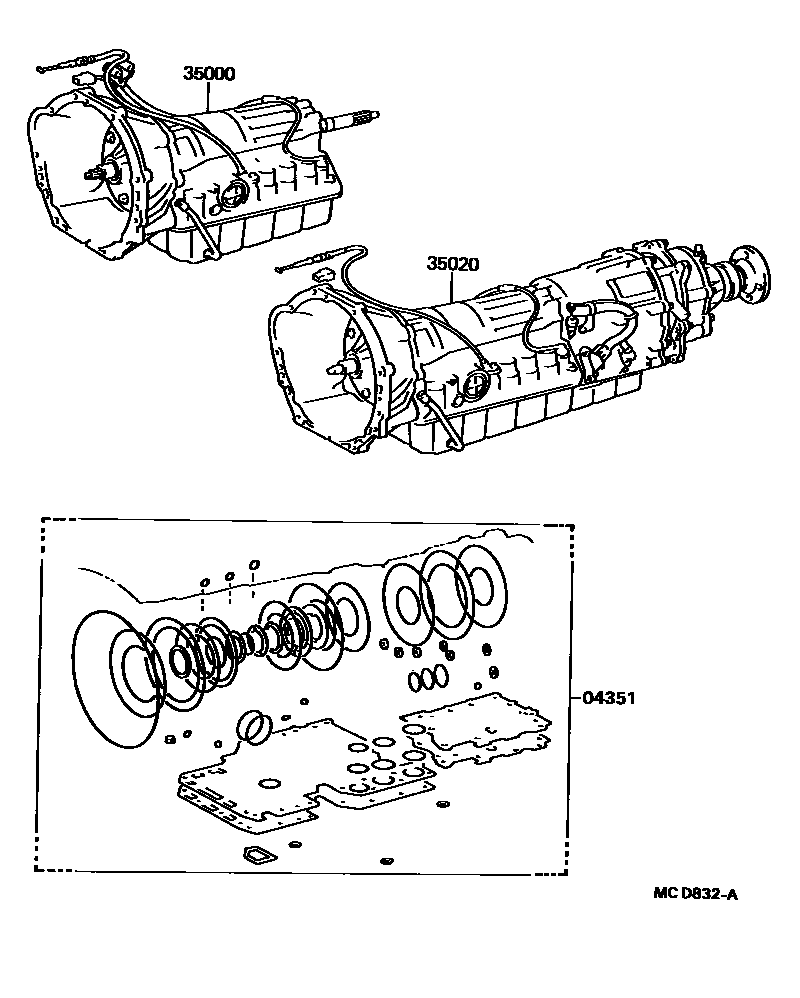

Toyota HILUX 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota HILUX EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351 | Automatic transmission overhaul gasket assembly | 04351-30073 · 04351-30074 · 04351-30075 · 04351-30110 · 04351-35020 |
| 35000 | Automatic transmission assembly | 35000-35170 · 35000-35180 · 35000-35190 · 35000-35310 · 35000-35311 · 35000-35340 |
| 35020 | Transmission assembly with transfer case | 35020-35905 · 35020-35910 |
