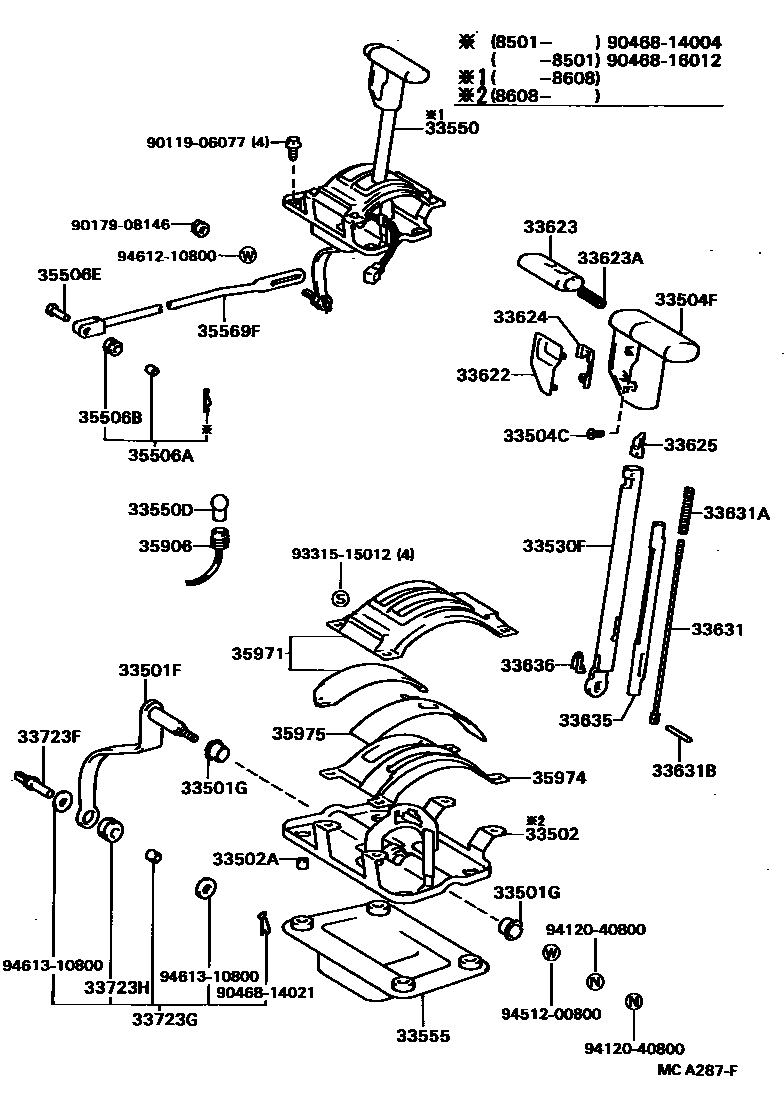

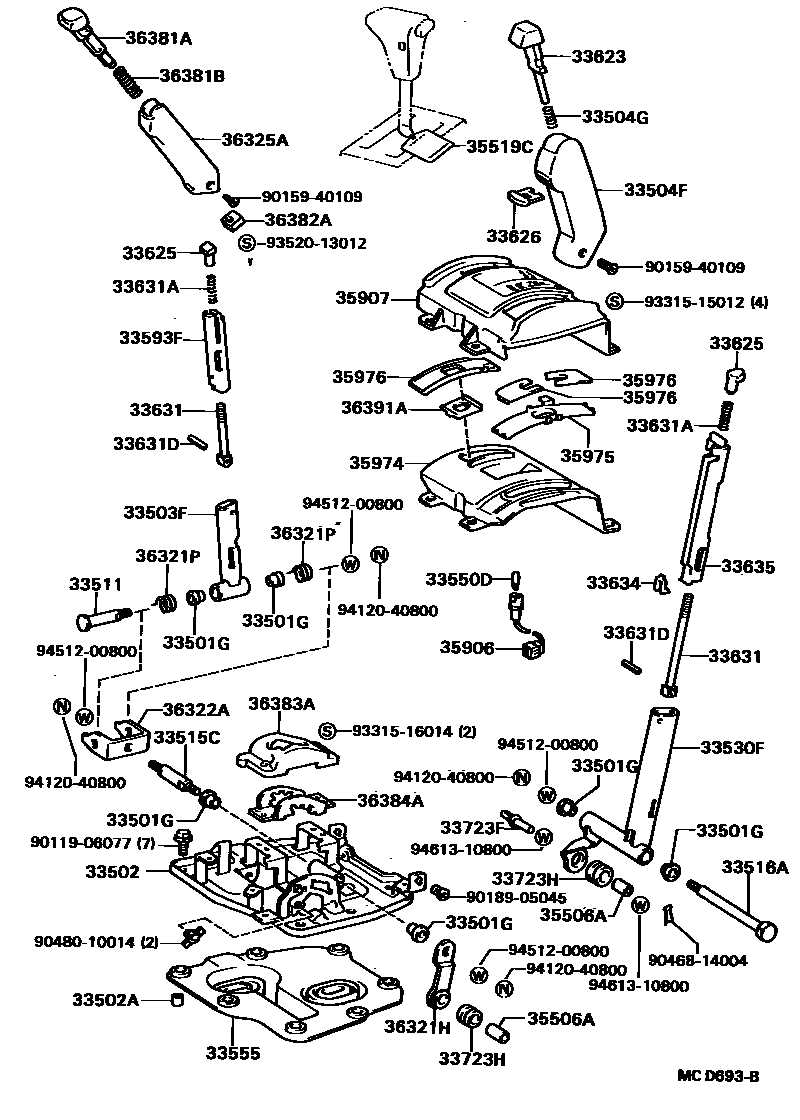

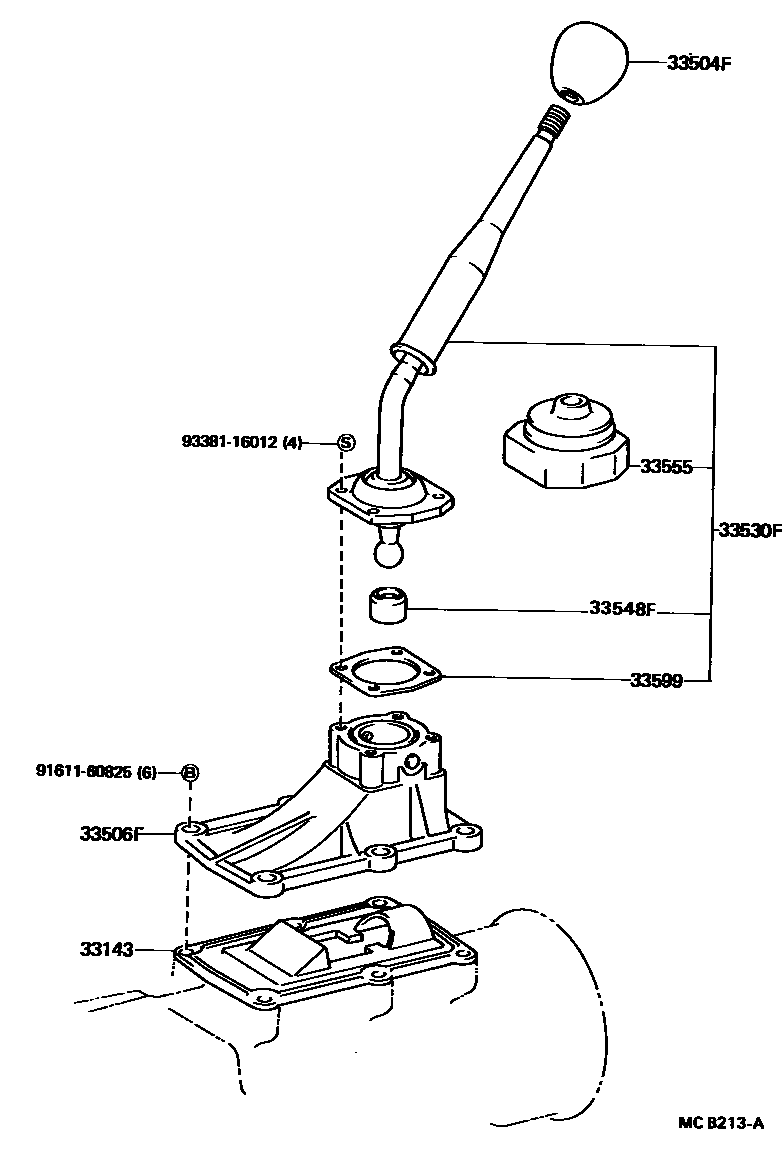

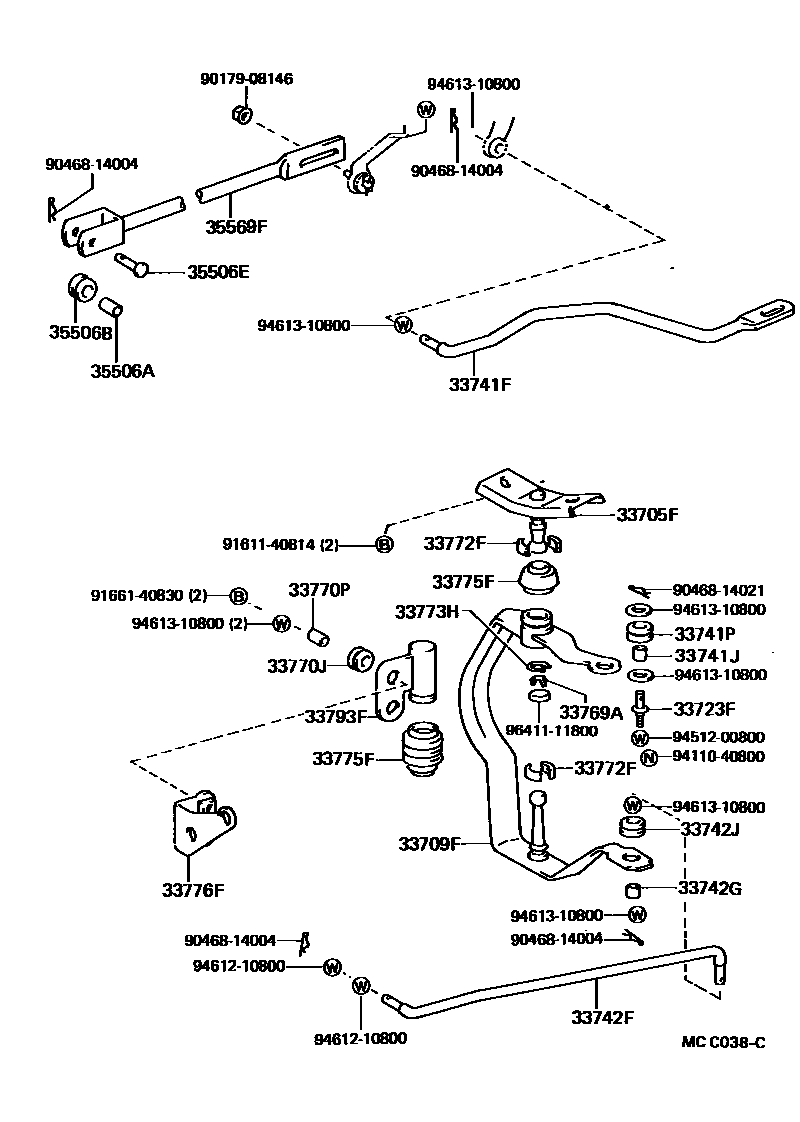

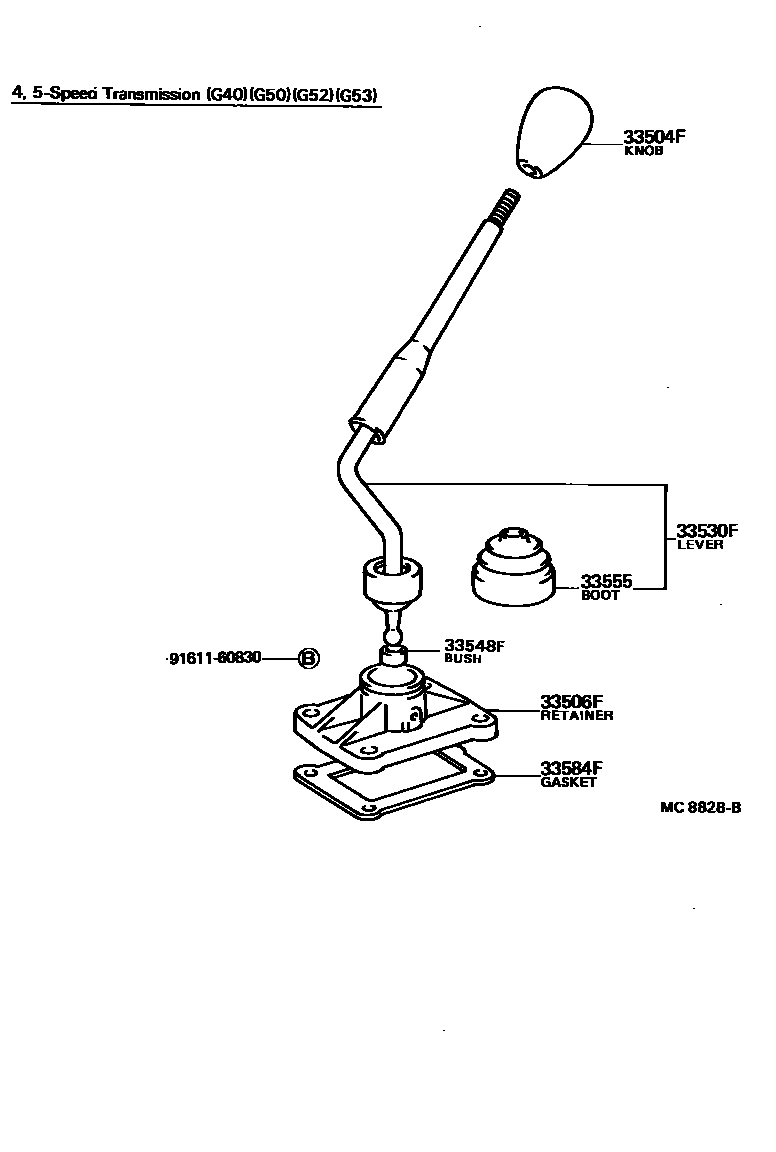

Toyota HILUX Shift Lever & Retainer — Figure 3312
Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 5 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33143 | Extended shell oil baffle | 33143-35020 |
| 33501F | Control shaft sub-assembly (for floor shift) | 33501-35170 |
| 33501G | Bushing (for floor mounted shift control shaft) | 90385-11003 · 90385-16045 |
| 33502 | Shift lever base plate sub-assembly | 33502-35080 · 33502-35110 |
| 33502A | Collar (for securing floor shift) | 90387-06065 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33503-35060 |
| 33504C | Screw (for securing shift lever knob) | 90149-40004 · 90159-40109 |
| 33504G | Compression spring (for shift lever knob) | 90501-07009 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-35070 · 33570-35020 |
| 33511 | Control shaft (for floor shifting) | 33511-35120 |
| 33515C | No. 2 control axis | 33515-35010 |
| 33516A | No. 3 control axis | 33516-35010 |
| 33530F | Shift lever assembly (for floor shift) | 33501-35200 · 33503-35050 · 33530-35040 · 33530-35090 · 33530-35110 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-31010 |
| 33550 | Transmission floor shift assembly | 33550-35110 |
| 33550D | position indicator light bulb | 90981-11018 · 99132-11034 |
| 33555 | Gear shift lever dust cover | 33555-22050 · 33555-35040 · 33555-35060 · 33555-35080 |
| 33584F | Shift lever stop pad (for floor shift) | 33105-35010 |
| 33593F | Spring retainer (for floor shift) | 33593-35010 |
| 33599 | No. 2 shift lever stopper gasket | 33584-22020 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 |
| 33624 | handle cover fixing | 33624-32010 |
| 33625 | Shift lever handle sleeve | 33625-32010 · 33625-35010 · 33625-35020 |
| 33631 | Locking lever | 33631-17010 · 33631-35020 · 33631-35030 |
| 33631A | Compression spring (for locking lever) | 90501-07005 · 90501-08017 |
| 33631B | Slotted spring pin (for locking lever) | 90256-04001 · 90256-04003 |
| 33631D | Grooved pin (for locking lever) | 90256-04001 |
| 33634 | Harness protection device | 33636-35010 |
| 33635 | Cable guide (for gear selector) | 33635-35010 · 33635-35020 |
| 33636 | Cable guide No. 2 (for gear selector) | 33636-35010 |
| 33705F | No. 1 transverse shaft bracket sub-assembly (for floor shift) | 33705-35020 |
| 33709F | No. 1 transverse shaft sub-assembly (for floor shift) | 33709-35110 |
| 33723F | Connecting rod swivel joint (for floor shifting) | 33723-22010 |
| 33723G | Bushing (for floor mounted shift control shaft) | 90999-99017 |
| 33723H | Retaining ring (for floor mounted shift control shaft) | 90480-17177 |
| 33741F | No. 1 shift lever (for floor shift) | 33741-35130 |
| 33741J | Bushing No. 2 (for shift rod or selector linkage) | 90389-08005 |
| 33741P | No. 2 retaining ring (for shift rod or gear selector linkage) | 90480-17177 |
| 33742F | No. 2 shift lever (for floor shift) | 33742-35090 |
| 33742G | Bushing (for No. 2 shift lever) | 90389-08005 |
| 33742J | Retaining ring (for shift lever No. 2) | 90480-17177 |
| 33769A | Transverse axis end spring | 33769-35010 |
| 33770J | Retaining ring (for floor shift cross shaft) | 90480-17177 |
| 33770P | Collar (for horizontal shaft) | 90387-08058 |
| 33772F | No. 1 transverse shaft bracket bushing (for floor shift) | 33772-20010 |
| 33773H | Snap ring (for horizontal axis bracket) | 96151-01600 |
| 33775F | No. 1 transverse shaft dust cover (for floor shift) | 33775-27020 · 33775-35010 |
| 33776F | No. 1 transverse shaft bracket (for floor shift) | 33776-35100 |
| 33793F | No. 2 transverse shaft bracket (for floor shift) | 33793-35010 |
| 35506A | Bushing (for manual valve stem shaft) | 90389-08005 · 90999-99017 |
| 35506B | Retaining ring (for manual valve stem shaft) | 90480-17177 |
| 35506E | Pin with hole (for manual valve stem) | 90240-08054 · 90240-08120 |
| 35519C | Automatic transmission information label | 35519-24010 |
| 35569F | Transmission first gear lever (for floor shift) | 33702-35050 · 33702-35080 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-35020 · 35906-35021 · 35906-35050 · 35906-35051 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-35060 |
| 35971 | position indicator bracket | 35907-35030 |
| 35974 | Position indicator light lower shell | 35974-22020 · 35974-35020 |
| 35975 | Slide cover (for position indicator light) | 35975-35010 · 35975-35030 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-35020 · 35976-35030 |
| 36321H | Transfer case shift lever | 36321-35030 · 36321-35050 |
| 36321P | Spring (for transfer case shift lever) | 90508-26068 · 90508-26069 |
| 36322A | No. 2 transfer case shift lever | 36322-35010 |
| 36381B | Compression spring (for shift lever knob) | 90501-08068 |
| 36382A | Transfer case shift lever button block | 36382-35010 |
| 36383A | Transfer case stop block bracket | 36383-35020 |
| 36384A | Transfer case stop block | 36384-35020 |
| 36391A | transfer case sliding cover | 36391-35020 |
