Toyota HILUX 换档拨叉和换档杆轴(MTM) — Figure 3307

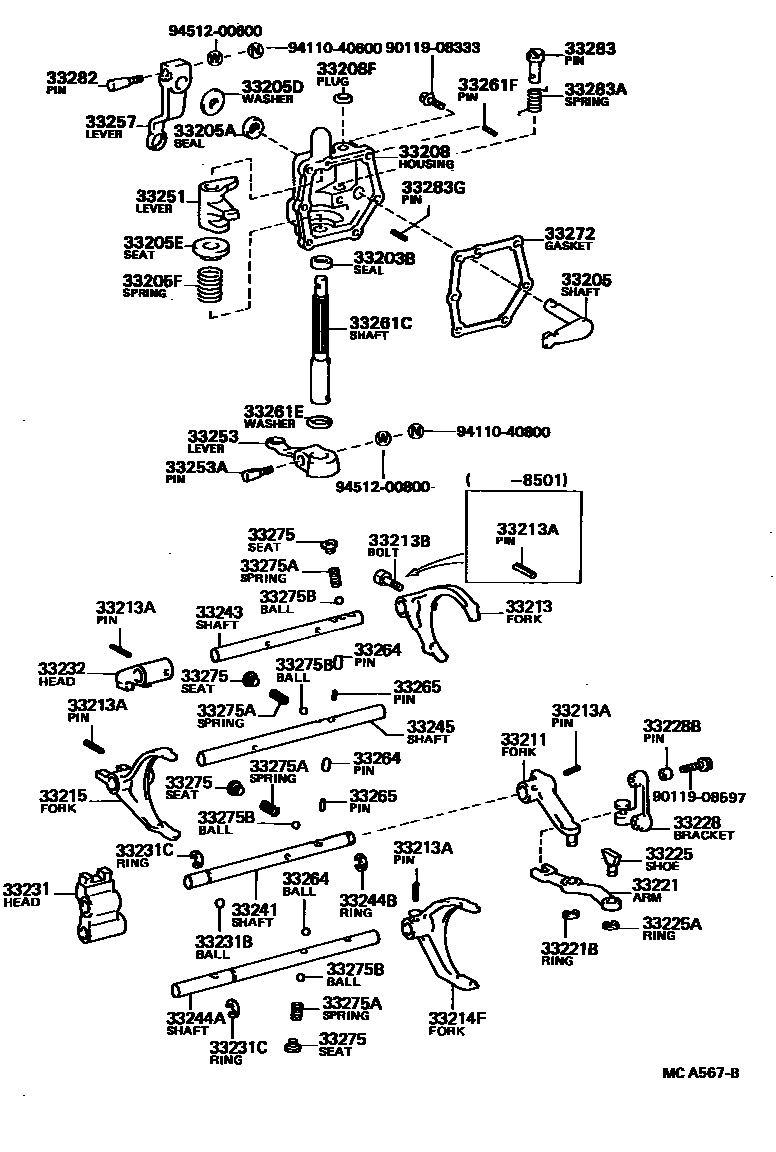

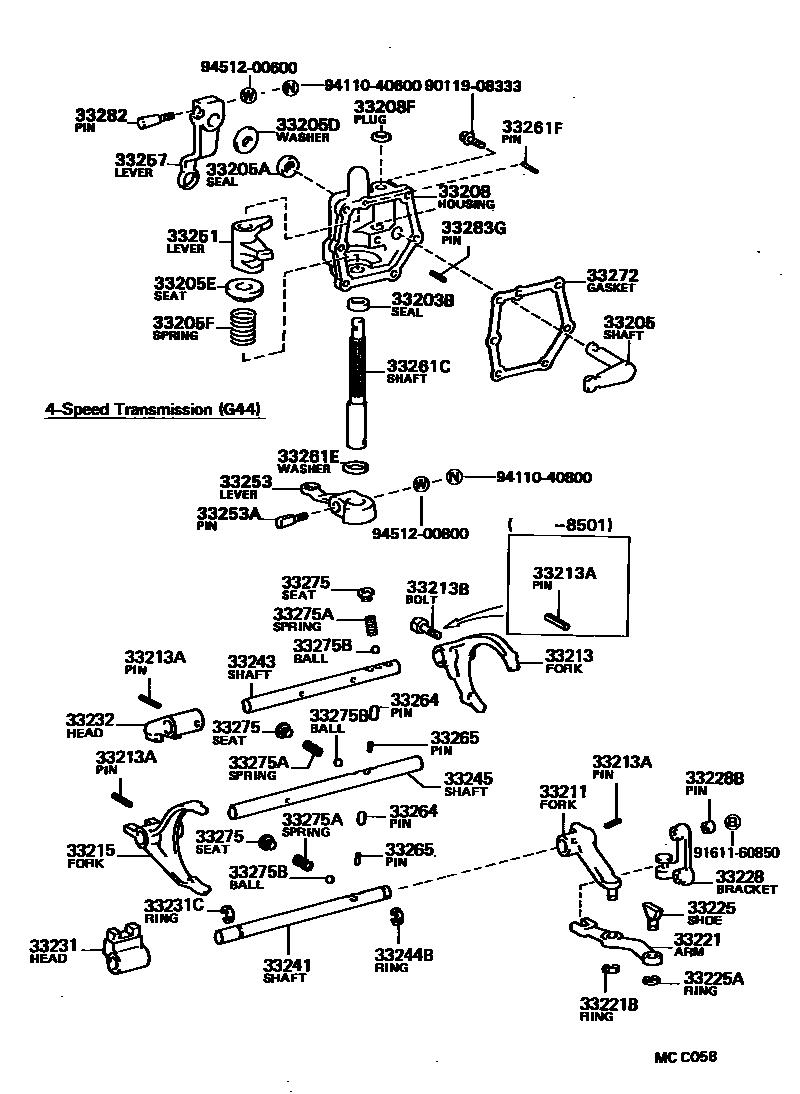

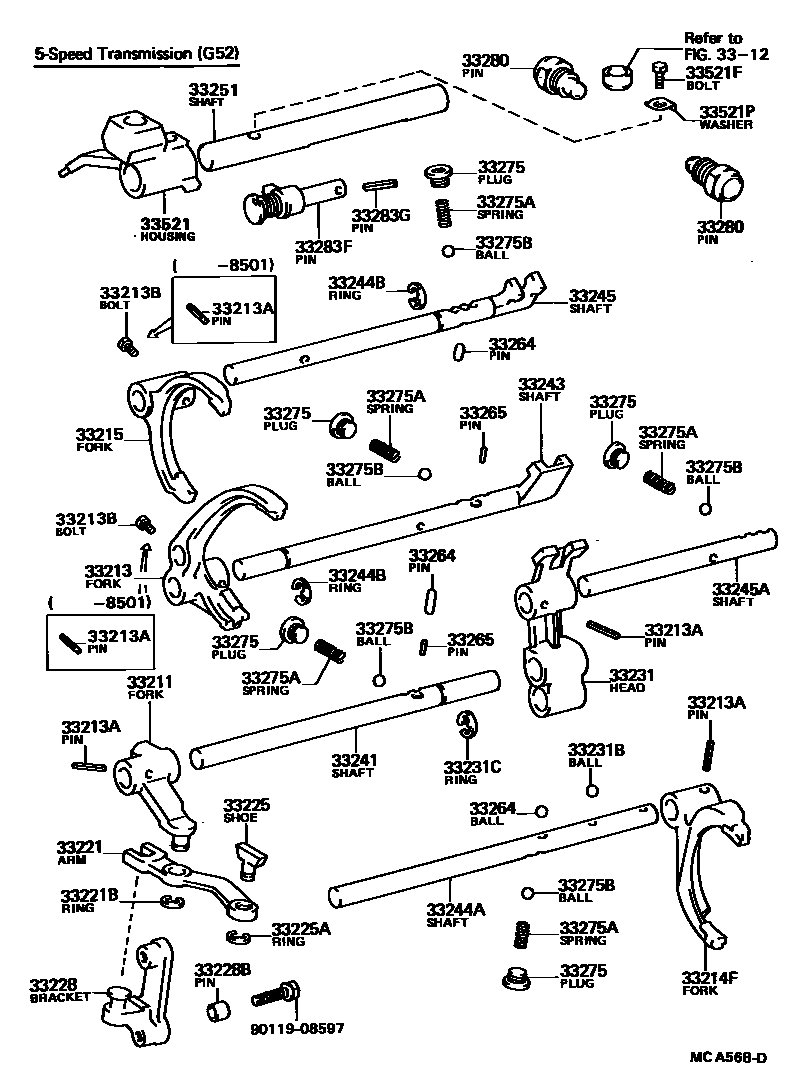

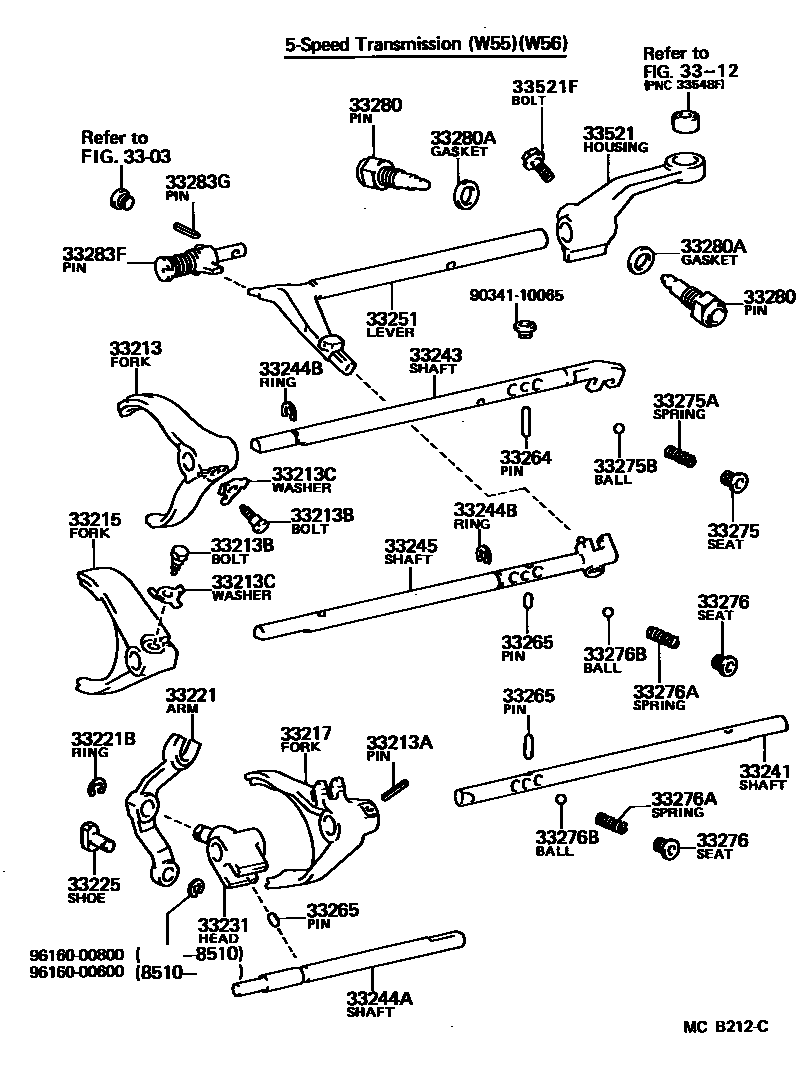

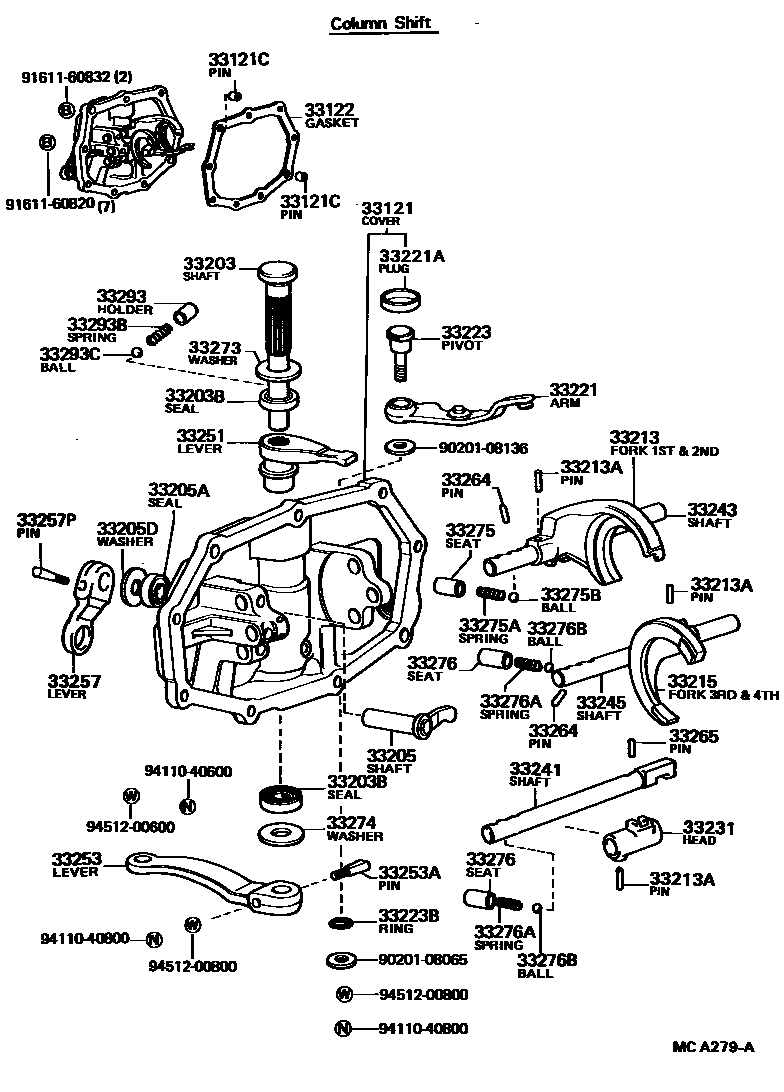

Toyota HILUX EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 5 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33121 | manual gearbox cover | 33102-35040 |
| 33121C | pin (for gearbox cover) | 90253-11001 |
| 33122 | Manual transmission cover gasket | 33122-30020 |
| 33203 | No. 1 shift lever shaft sub-assembly | 33261-30020 |
| 33203B | Oil seal (for shift lever shaft) | 90311-13050 · 90311-18002 · 90312-15003 |
| 33205 | Selector lever shaft sub-assembly | 33262-26010 · 33262-28020 |
| 33205A | Oil seal (for No. 2 shift lever shaft) | 90313-13001 |
| 33205D | Washer (used to secure the outer shift lever oil seal) | 94612-11300 |
| 33205E | Base (for gear selector return spring) | 33276-28010 · 33276-28011 |
| 33205F | Compression spring (for gear selector return) | 90501-18044 |
| 33208 | Shift lever shaft cover sub-assembly | 33271-35030 |
| 33208F | Sealing plug (for shift lever shaft cover) | 90331-12002 · 96411-41200 |
| 33211 | Reverse Shift Fork | 33211-28010 |
| 33213 | First and second gear shift forks | 33212-22020 · 33212-26030 · 33212-28010 · 33212-28021 · 33212-35022 · 33212-35023 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05001 · 90254-05016 |
| 33213B | Bolt (for securing shift fork) | 90105-06052 · 90113-06005 |
| 33213C | Locking washer (for securing shift fork) | 90215-09002 |
| 33214F | Five-speed shift fork | 33214-28010 · 33214-35020 |
| 33215 | Third and fourth gear shift forks | 33213-22030 · 33213-26020 · 33213-28011 · 33213-35031 · 33213-35032 |
| 33217 | Fifth gear and reverse gear shift fork | 33214-22030 |
| 33221 | Reverse shift arm | 33221-22010 · 33221-22011 · 33221-28010 · 33221-30010 |
| 33221A | Sealing plug (for reverse shift arm) | 96411-12500 |
| 33221B | E-ring (for reverse shift arm) | 96160-01000 |
| 33223 | shift arm pivot | 33223-30011 |
| 33223B | O-ring (for shift arm pivot) | 90301-08001 |
| 33225 | shift arm shoe | 33225-22010 · 33225-22011 · 33225-35020 · 33225-35030 |
| 33225A | Shaft snap ring (for shift arm shoe) | 96160-00800 |
| 33228 | Reverse shift arm bracket | 33228-28010 |
| 33228B | Ring pin (for reverse shift arm bracket) | 90253-11001 |
| 33231 | Reverse gear shift guide block | 33231-22010 · 33231-22011 · 33231-26010 · 33231-28010 · 33231-35040 |
| 33231B | Reverse gear shift positioning steel ball | 90360-10003 |
| 33231C | Ring (for reverse shift guide block) | 90523-12001 · 90523-12003 |
| 33232 | First and second gear shift guide blocks | 33232-28010 |
| 33241 | Reverse shift fork shaft | 33241-26010 · 33244-22020 · 33244-28010 · 33244-28011 · 33244-35020 · 33244-35021 |
| 33243 | First and second gear shift fork shaft | 33242-22020 · 33242-26010 · 33242-26020 · 33242-28010 · 33242-35020 · 33242-35021 · 33242-35022 |
| 33244A | Fifth gear shift fork shaft | 33245-22010 · 33245-28010 · 33245-28011 · 33245-35040 |
| 33244B | Shaft snap ring (for shift fork shaft) | 90520-12003 · 90523-12001 |
| 33245 | Third and fourth gear shift fork shaft | 33240-22020 · 33243-26010 · 33243-35040 · 33243-35041 · 33243-35042 · 33243-35050 · 33243-35051 · 33243-35060 |
| 33245A | Fifth gear shift arm shaft | 33246-35020 |
| 33251 | shift lever | 33251-26010 · 33251-28011 · 33251-35070 · 33261-35080 |
| 33253 | No. 1 outer shift lever | 33253-35060 · 33253-35070 |
| 33253A | Shift lever lock pin (for outer shift lever) | 33281-16020 · 33281-30010 |
| 33257 | External gear selector | 33257-35060 · 33257-35070 |
| 33257P | External gear lever lock pin | 33282-35010 |
| 33261C | shift lever shaft | 33261-35090 |
| 33261E | Washer (for shift lever shaft) | 94612-11800 |
| 33261F | Direct sales (for shift lever shaft) | 90250-05020 |
| 33264 | No. 1 shift interlock pin or steel ball | 33264-22010 · 33264-30010 · 90360-10003 · 90361-10002 · 90361-10003 |
| 33265 | No. 2 shift interlock pin | 33265-22010 · 33265-30010 · 33266-22010 · 90250-05020 · 90250-06007 |
| 33272 | Shift lever shaft cover gasket | 33272-28010 |
| 33273 | No. 1 shift lever shaft cover gasket | 90201-15137 |
| 33274 | No. 2 shift lever shaft cover gasket | 94612-11300 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-10010 · 90341-12004 · 90341-12008 · 90341-12014 |
| 33275A | Compression spring (for the lower side of the shift lock steel ball) | 90501-10061 · 90501-13004 · 90501-14061 · 90501-14062 · 90501-14090 · 90501-14638 |
| 33275B | Gear shift lock steel ball | 90360-10003 |
| 33276 | No. 2 shift lock steel ball spring seat | 33275-10010 · 90341-12005 |
| 33276A | No. 2 compression spring (for shift lock steel ball) | 90501-13004 · 90501-14090 · 90501-14638 |
| 33276B | No. 2 shift lock steel ball | 90360-10003 |
| 33280 | Reverse gear positioning pin assembly | 33280-22020 · 33280-22030 · 33280-35020 · 33280-35030 |
| 33280A | Reverse gear positioning pin gasket | 90430-18008 |
| 33282 | No. 2 shift lever lock pin | 33282-35010 |
| 33283 | No. 1 reverse gear positioning pin | 33283-28010 · 33283-28011 |
| 33283A | Compression spring (for reverse gear pin) | 90504-10007 |
| 33283F | Reverse gear positioning pin | 33280-22010 · 33280-35040 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-04015 · 90254-05001 · 90254-05016 |
| 33293 | Reverse gear positioning steel ball retainer | 33276-10010 |
| 33293B | Compression spring (for reverse gear positioning steel ball) | 90501-14007 |
| 33293C | Steel ball (for reverse gear positioning) | 90360-10003 |
| 33521 | shift lever housing | 33521-35090 · 33521-35110 |
| 33521F | Pin or bolt (for shifter housing) | 90105-08079 · 90113-08001 |
| 33521P | Lock washer (for shift lever housing) | 90215-09003 |
