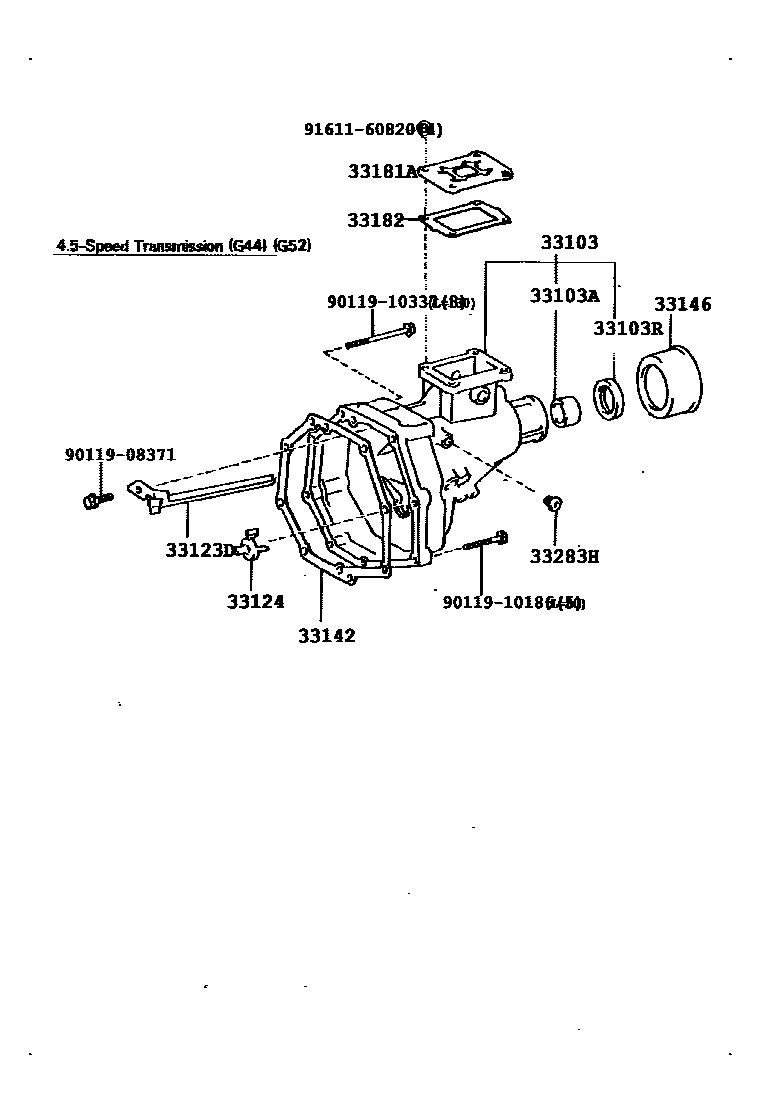

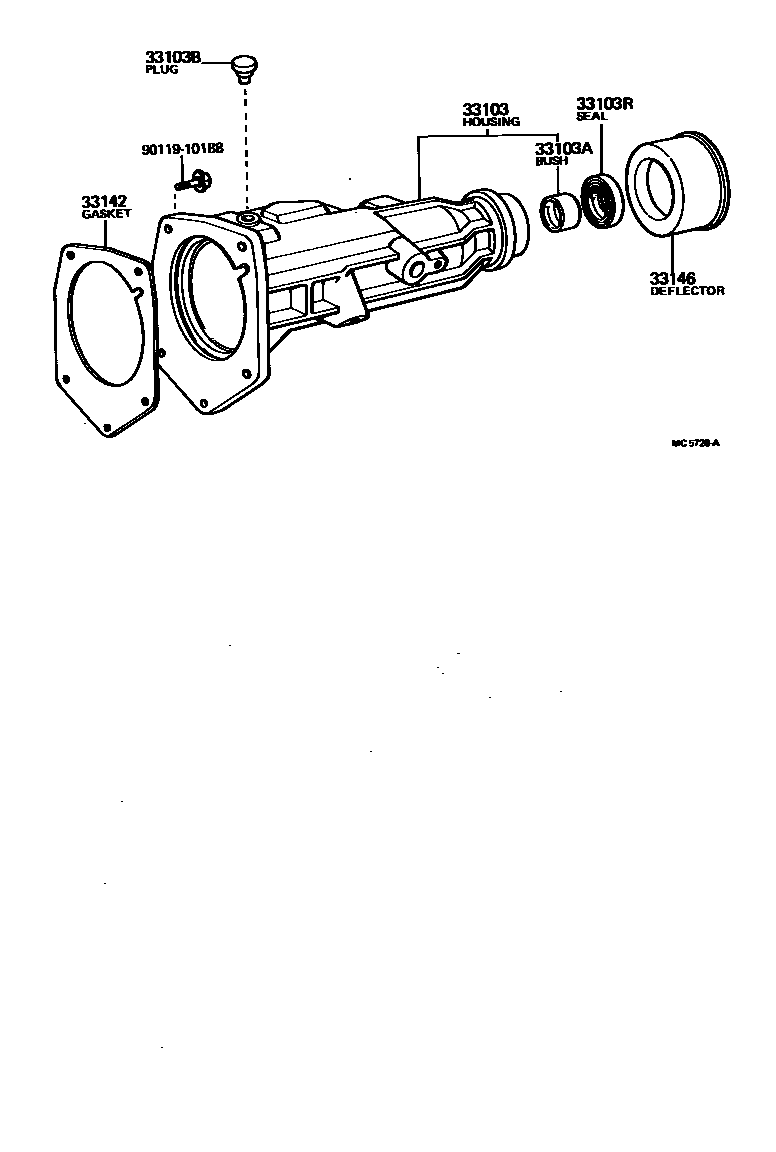

Toyota HILUX Extended shell (MTM) — Figure 3303
Toyota HILUX EPC diagram 3303, Extended shell (MTM), with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33103 | Extended shell sub-assembly (MTM) | 33103-35050 · 33103-35100 · 33103-35101 |
| 33103A | Bushing (for manual transmission extension housing) | 90999-72023 |
| 33103B | Breather plug (for transmission extension housing) | 90930-03001 |
| 33103R | Oil seal (for manual transmission extension housing) | 90311-38040 · 90311-38043 |
| 33123D | Transmission case cover oil collection tank (MTM) | 33124-35010 |
| 33124 | Oil collecting pipe (MTM) | 33124-36010 |
| 33142 | Extended shell liner (MTM) | 33138-28020 · 33142-26010 |
| 33146 | Extension housing dust cover (MTM) | 33146-30010 |
| 33181A | Extended housing cover (MTM) | 33181-35010 |
| 33182 | Extended cover gasket (MTM) | 33182-35010 |
| 33283H | Headed straight thread plug | 90341-12008 |
