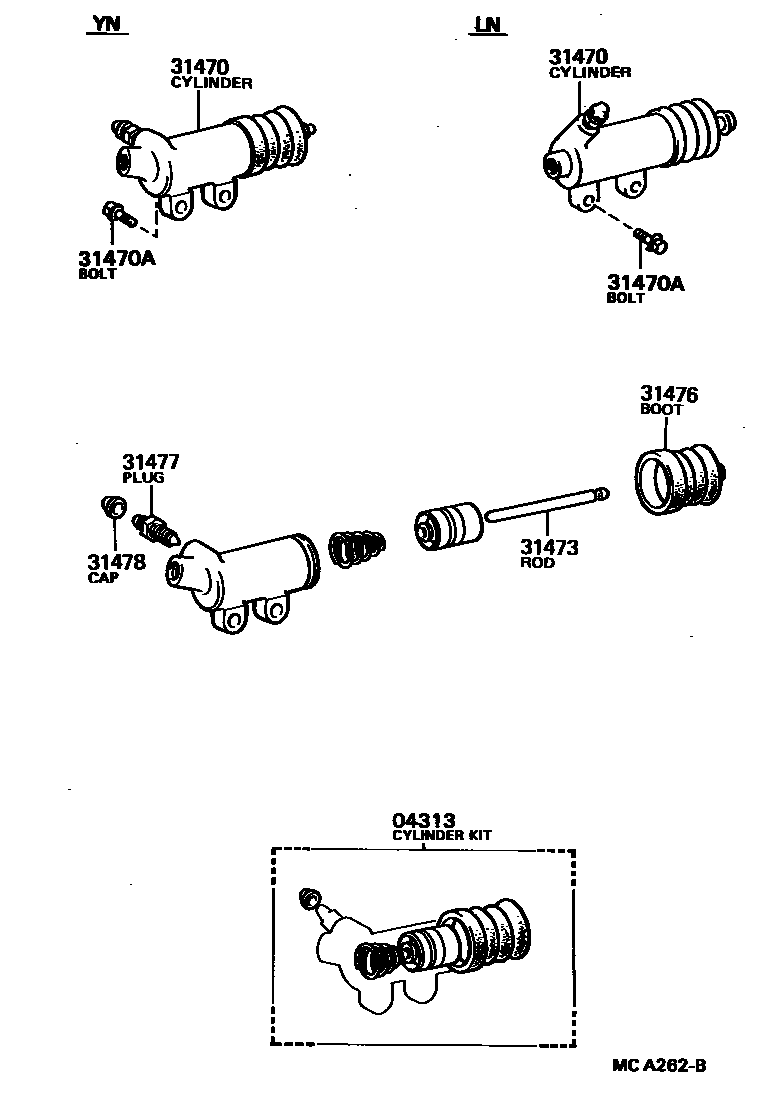

Toyota HILUX 离合器分离缸 — Figure 3105
Toyota HILUX EPC diagram 3105, 离合器分离缸, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04313 | Clutch release cylinder assembly | 04313-22020 |
| 31470 | Clutch release cylinder assembly | 31470-30220 · 31470-35050 |
| 31470A | Bolt (for securing clutch release cylinder) | 91611-60825 |
| 31473 | No. 1 clutch release cylinder push rod | 31473-22010 |
| 31476 | Clutch release cylinder dust boot | 31476-22010 |
| 31477 | Bleed plug (for separation cylinder) | 47547-12010 |
| 31478 | Bleed plug cap (for separator cylinder) | 31478-30010 |
