Toyota HILUX 离合器总泵 — Figure 3103

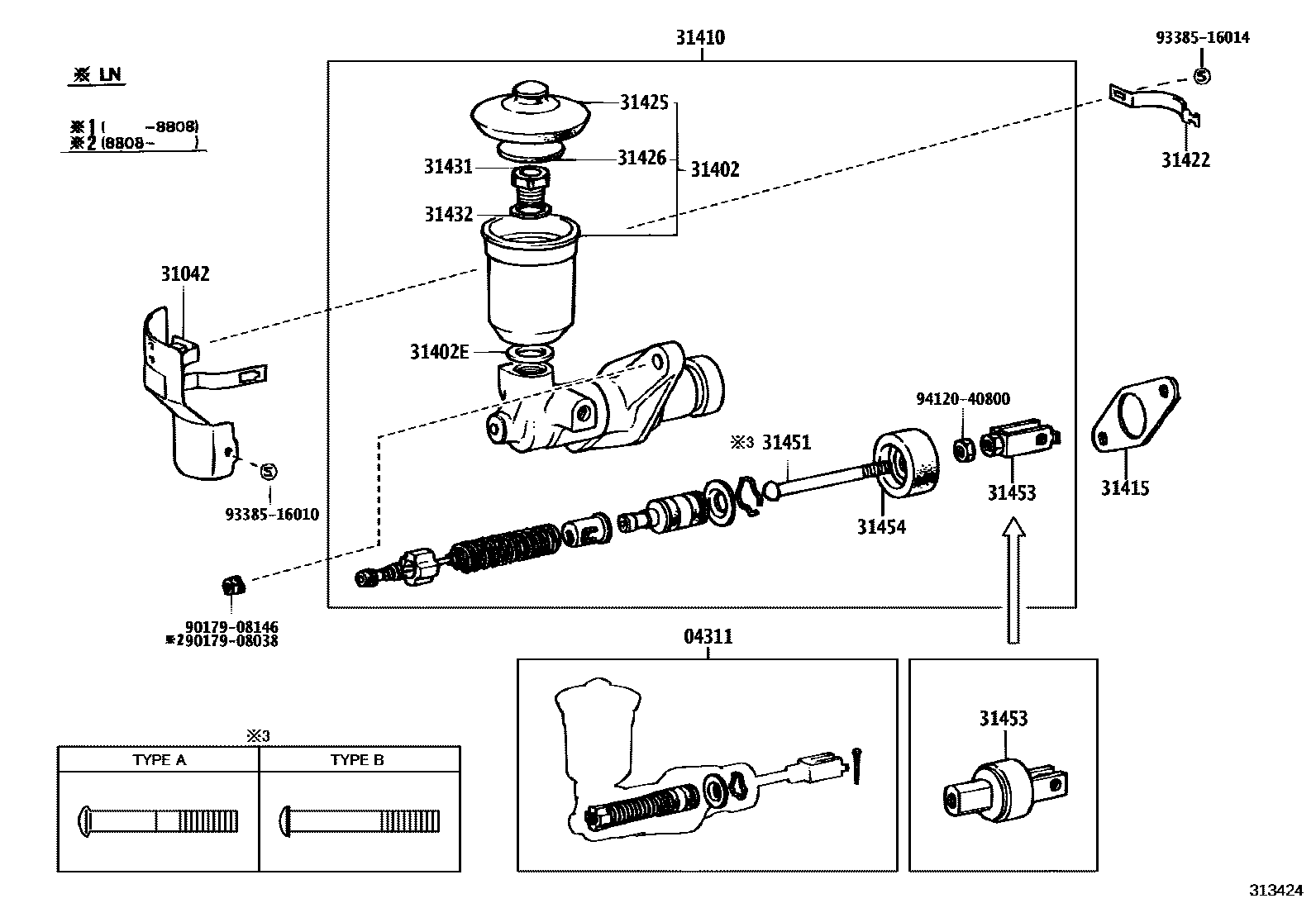

Toyota HILUX EPC diagram 3103, 离合器总泵, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-14011 · 04311-14030 · 04311-14031 · 04311-14032 · 04311-30080 |
| 31042 | Master pump heat insulation pad sub-assembly | 31042-35010 |
| 31402 | Clutch master cylinder fluid reservoir sub-assembly | 31402-30030 · 31402-35020 |
| 31402E | Ring (for clutch master cylinder reservoir) | 90562-18151 |
| 31410 | Clutch master cylinder assembly | 31410-22140 · 31410-24012 · 31410-35130 · 31410-35131 · 31410-35132 · 31410-35150 · 31410-35151 · 31410-35152 · 31410-35180 · 31410-35181 · 31410-35240 · 31410-35241 |
| 31415 | Clutch master cylinder gasket | 31415-10010 · 31415-30030 |
| 31422 | Clutch reservoir bracket | 31422-35010 |
| 31425 | Clutch master cylinder reservoir tank filler cap | 47230-20040 |
| 31426 | Clutch master cylinder reservoir float | 31426-30011 |
| 31431 | Clutch master cylinder reservoir fixing bolt | 47231-30010 |
| 31432 | Clutch reservoir retaining bolt washer | 47232-30010 |
| 31451 | Clutch master cylinder push rod | 31451-20050 · 31451-22060 · 31451-22070 · 31451-30060 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-28011 · 31404-28012 · 31404-30041 · 31404-30050 · 31453-22010 · 31453-35010 |
| 31454 | Clutch master cylinder dust boot | 31454-14010 · 31454-24010 |
