Toyota HILUX 离合器踏板和挠性软管 — Figure 3102

Toyota HILUX EPC diagram 3102, 离合器踏板和挠性软管, with 2 images and 14 PNC and OE references.

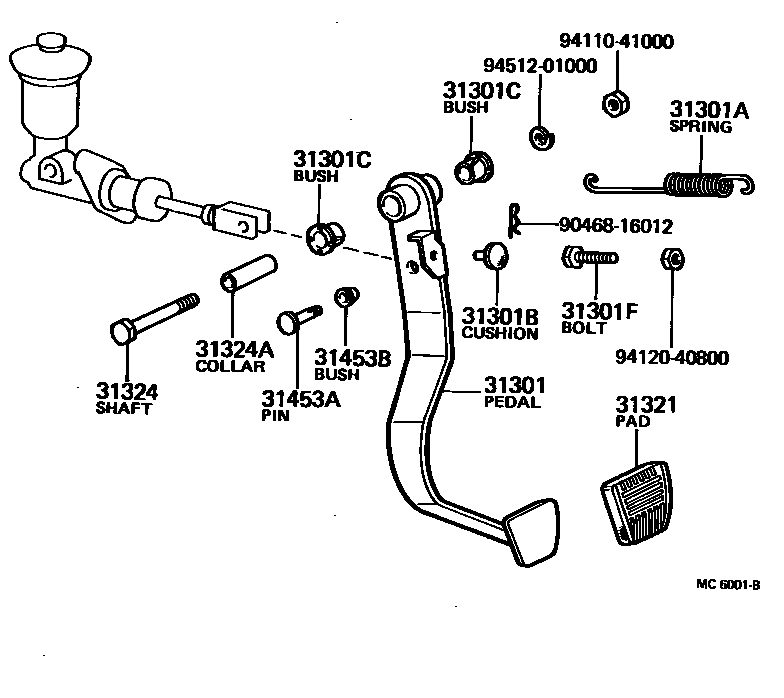

Toyota HILUX 离合器踏板和挠性软管 EPC diagram — MC6001B
离合器踏板和挠性软管 — MC6001B (198311 – 999999)

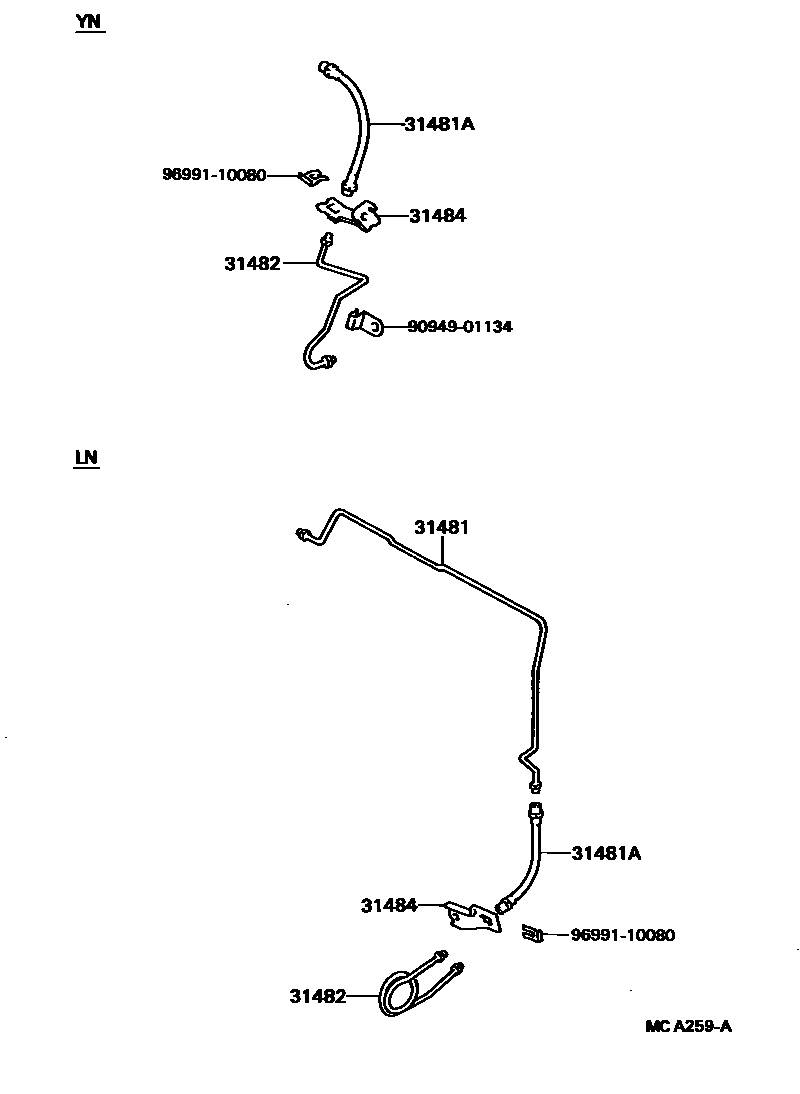

Toyota HILUX 离合器踏板和挠性软管 EPC diagram — MCA259A
离合器踏板和挠性软管 — MCA259A (198311 – 999999)

PNC and OE references

PNCPart nameOE numbers
31301Clutch pedal sub-assembly31301-35120
31301ASpring (for clutch pedal)90507-14013
31301BCushion pad No. 1 (for clutch pedal)90541-06008
31301CBushing (for clutch pedal)90386-13007
31301FBolt (for clutch pedal stop)90101-10369
31321clutch pedal pad31321-14020
31324clutch pedal shaft91121-51060
31324Aclutch pedal collar90387-10003
31453APin with hole (for clutch master cylinder push rod U-shaped clamp)90249-08018
31453BBushing (for clutch master cylinder push rod U-shaped clamp)90386-08002
31481Clutch master cylinder to flexible hose pipe31481-35220
31481ANo. 1 clutch hose90931-01012 · 90931-01023 · 96812-50220 · 96812-50240 · 96814-50260
31482Pipe from clutch release cylinder to flexible hose31482-35150 · 31482-35170 · 31482-35180
31484Flexible hose bracket (for clutch)31484-35121 · 31484-35130
