Toyota HILUX 离合器和分离叉 — Figure 3101

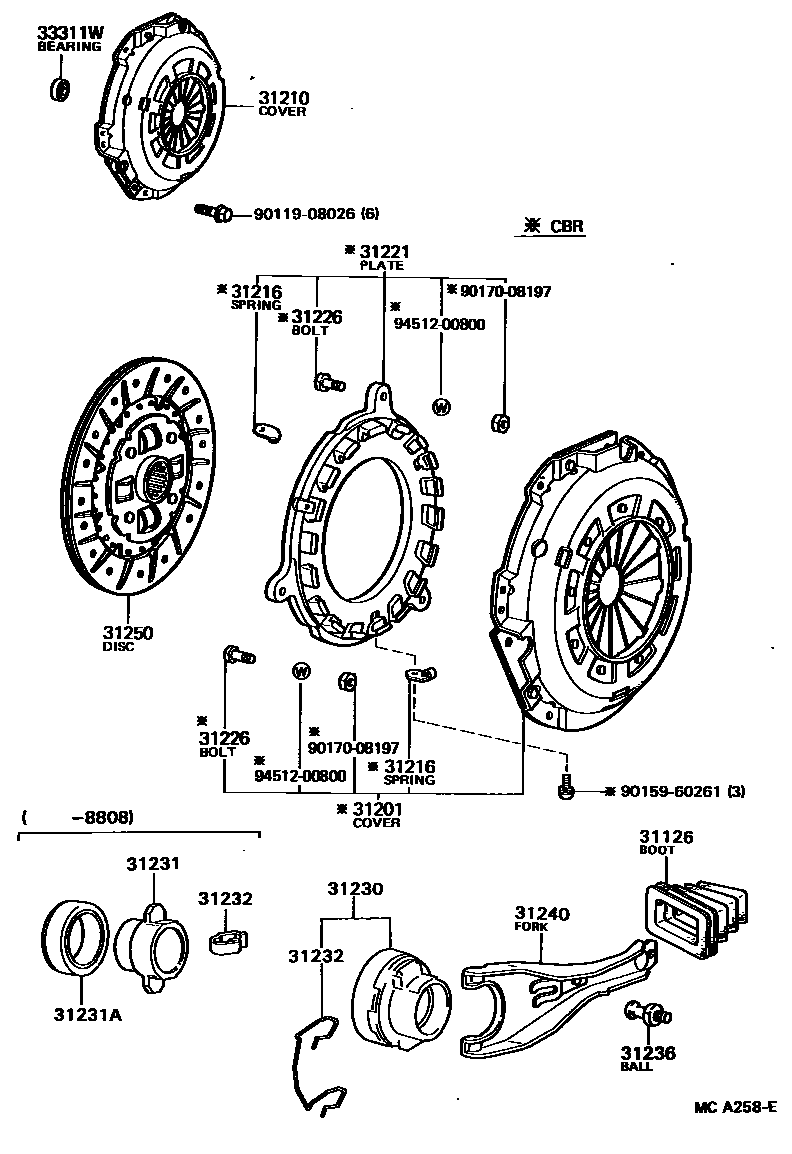

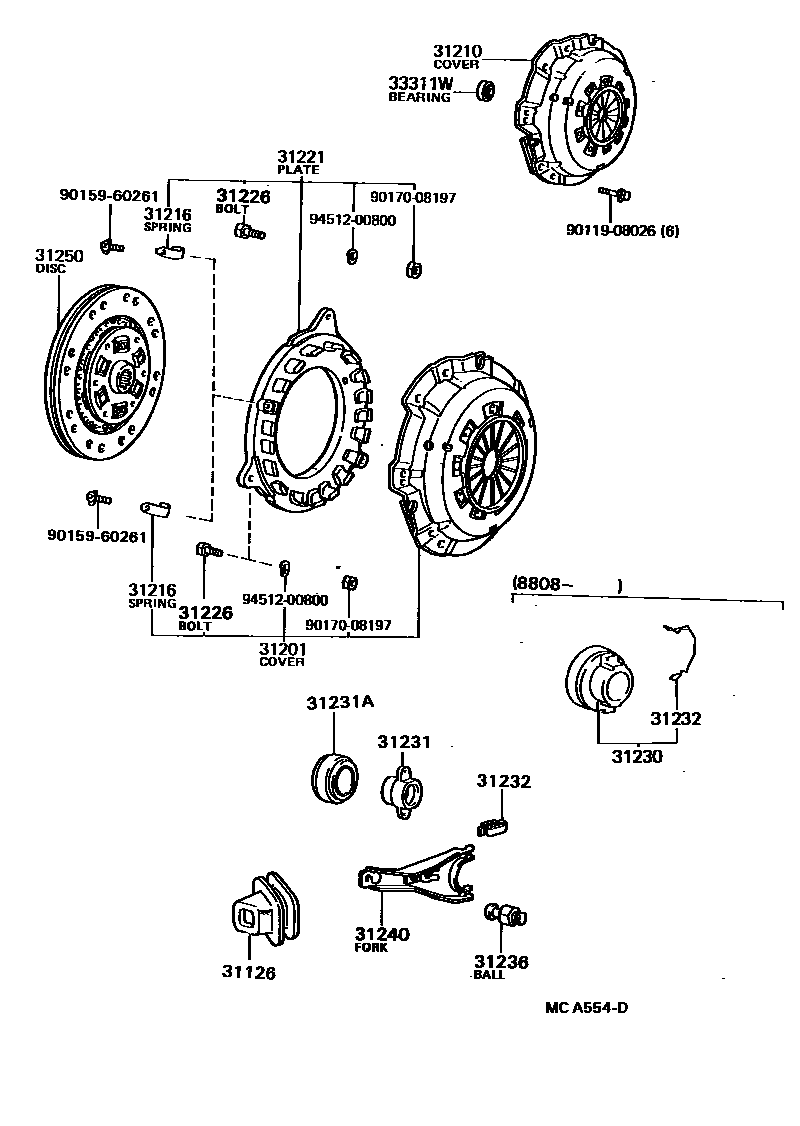

Toyota HILUX EPC diagram 3101, 离合器和分离叉, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-20060 · 31126-20070 |
| 31201 | Clutch cover sub-assembly | 31201-19095 · 31201-29085 · 31201-29115 · 31201-39146 |
| 31210 | Clutch cover assembly | 31210-14130 · 31210-24010 · 31210-30191 · 31210-35060 · 31210-35080 · 31210-36029 |
| 31216 | clutch return spring | 31216-14010 · 31216-30010 |
| 31221 | clutch pressure plate | 31221-39056 · 31221-39115 · 31221-39135 |
| 31226 | Clutch pressure plate bolt | 90101-08022 |
| 31230 | Clutch release bearing assembly | 31230-35070 · 31230-35090 |
| 31231 | Clutch release bearing hub | 31231-20090 · 31231-36070 |
| 31231A | Ball bearing (for clutch release hub) | 90363-40022 |
| 31232 | Release bearing hub clip or spring | 31232-22010 · 31232-35020 · 31232-35030 · 31232-35040 |
| 31236 | Breakaway fork steel ball | 31236-30060 |
| 31240 | Clutch release fork assembly | 31204-20070 · 31204-20071 · 31204-20090 · 31204-35050 |
| 31250 | Clutch disc assembly | 31250-20130 · 31250-26090 · 31250-26091 · 31250-30350 · 31250-30351 · 31250-35101 · 31250-35120 · 31250-35121 · 31250-35150 · 31250-35151 · 31250-35170 |
| 33311W | Bearings (for input shaft) | 90363-12002 |
