Toyota HILUX LPG滤清器 — Figure 2605

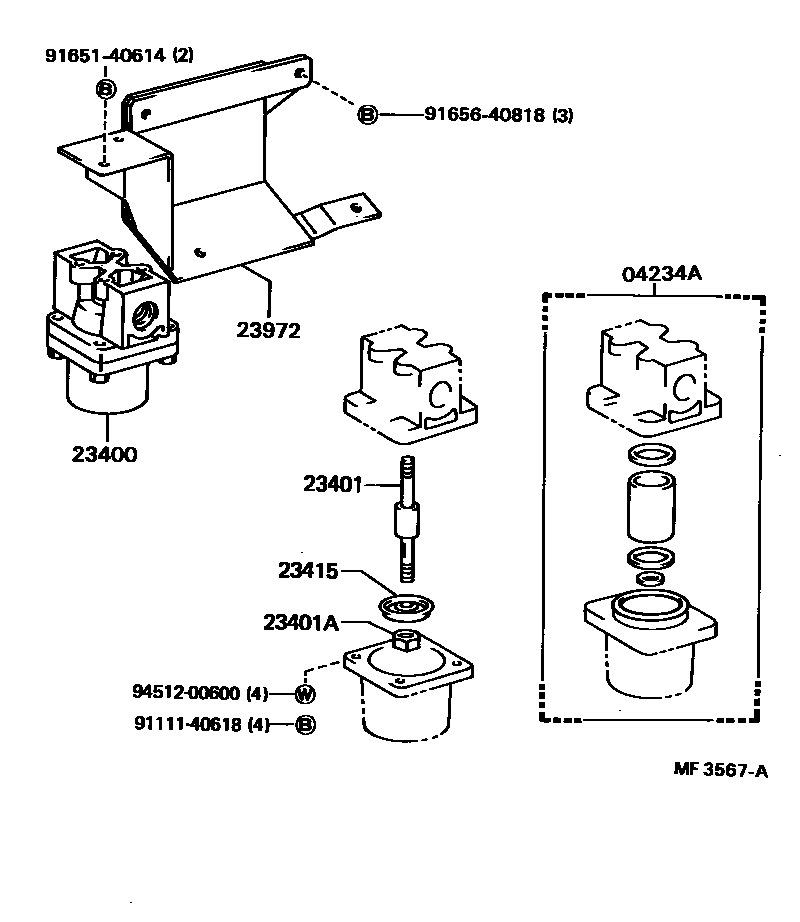

Toyota HILUX EPC diagram 2605, LPG滤清器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04234A | LPG filter element assembly | 04234-44012 |
| 23400 | LPG filter assembly | 23400-40024 |
| 23401 | Stud bolt sub-assembly (for LPG filter) | 23401-40020 |
| 23401A | Nut (for LPG filter stud assembly) | 94115-40500 |
| 23415 | filter chip | 23415-40010 |
| 23972 | Filter and solenoid valve bracket | 23972-73040 · 23972-73041 |
