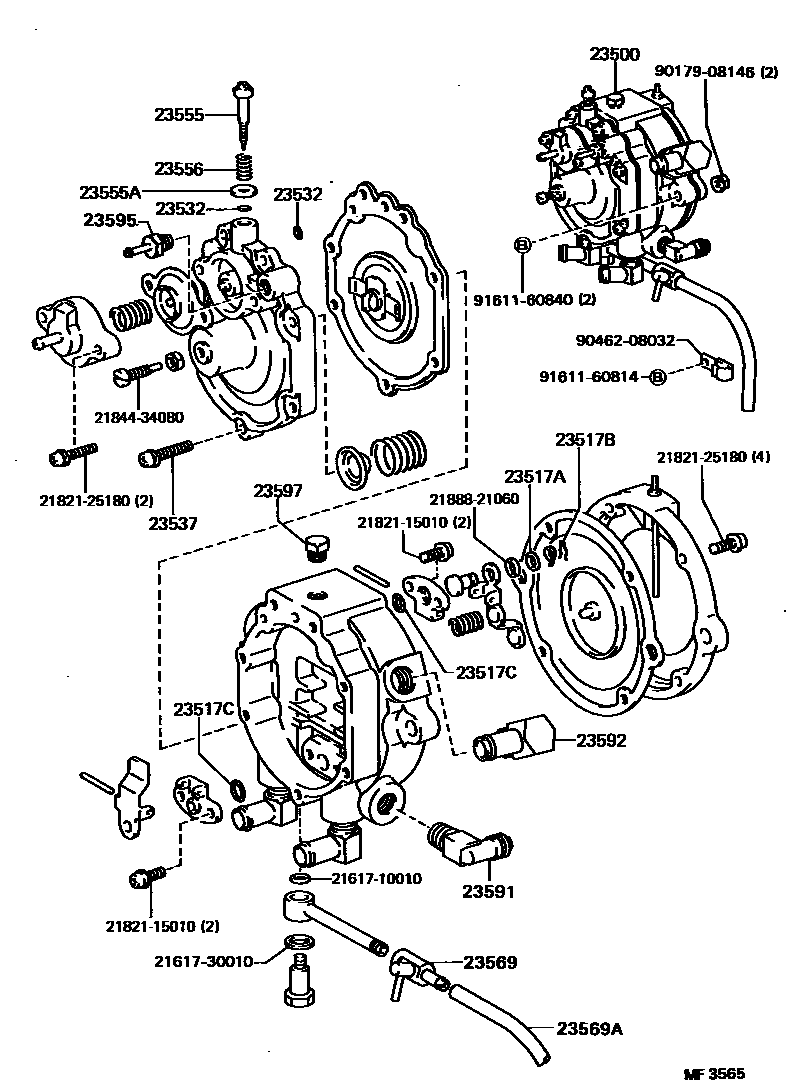

Toyota HILUX LPG或CNG调节器 — Figure 2603
Toyota HILUX EPC diagram 2603, LPG或CNG调节器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23500 | LPG (CNG) regulator assembly | 23500-73060 |
| 23517A | Gasket (for valve components with elastomeric surfaces) | 21535-10010 |
| 23517B | Snap ring (for valve components with elastomeric surfaces) | 21792-69210 |
| 23517C | Gasket (for valves with elastomeric surfaces) | 23532-44020 |
| 23532 | No. 2 O-ring (for light bulb) | 23532-40010 |
| 23537 | Screws (for No. 2 adjuster cover assembly) | 21821-31140 |
| 23555 | Idle speed adjustment screw | 23555-44041 |
| 23555A | Idle speed adjustment screw washer | 21885-26040 |
| 23556 | Idle speed adjustment screw spring | 21723-21030 |
| 23569 | Oil drain switch | 23569-40011 |
| 23569A | Hoses (for drain switch) | 90446-10177 |
| 23591 | No. 1 fuel hose connector | 90407-14023 |
| 23592 | Fuel hose connector No. 2 | 23592-44050 |
| 23595 | Connector No. 5 | 26249-73010 |
| 23597 | LPG regulator body screw plug | 90345-51025 |
