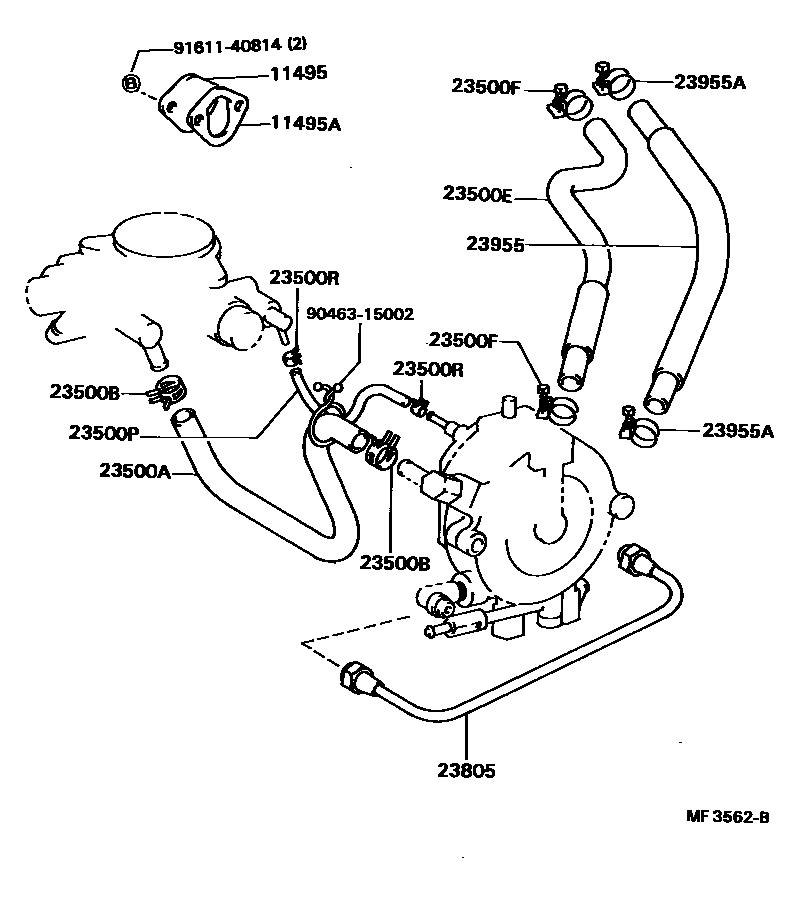

Toyota HILUX LPG(化油器)燃油管 — Figure 2601
Toyota HILUX EPC diagram 2601, LPG(化油器)燃油管, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11495 | Plate screw plug (for cylinder block) | 11495-40010 |
| 11495A | Fuel pump gasket (for cylinder block plate plug) | 90923-05005 |
| 23500A | No. 1 hose (for LPG regulator to LPG carburetor) | 23271-73060 |
| 23500B | No. 1 clip or clip (for LPG regulator to LPG carburetor) | 90467-20134 |
| 23500E | LPG regulator water inlet hose | 16264-73031 |
| 23500F | Clip or clip (for LPG regulator water inlet hose) | 96112-10220 |
| 23500P | No. 2 hose (for LPG regulator to LPG carburetor) | 95332-04040 · 95333-04040 |
| 23500R | No. 2 clip or clip (for LPG regulator to LPG carburetor) | 96132-30400 |
| 23805 | LPG regulator pipe assembly | 23805-73060 · 23805-73061 |
| 23955 | Regulator preheat hose | 16261-73050 |
| 23955A | Hose clamp (for regulator preheat hose) | 96112-10220 |
