Toyota HILUX 废气再循环系统 — Figure 2501

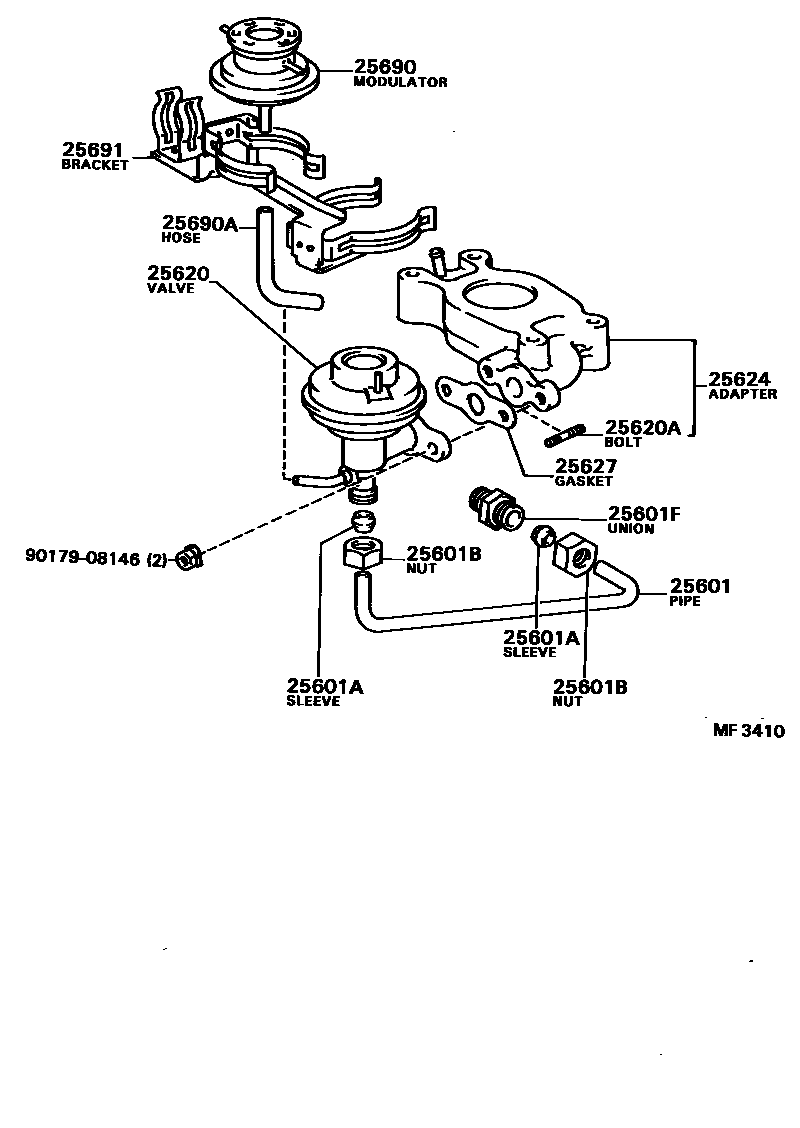

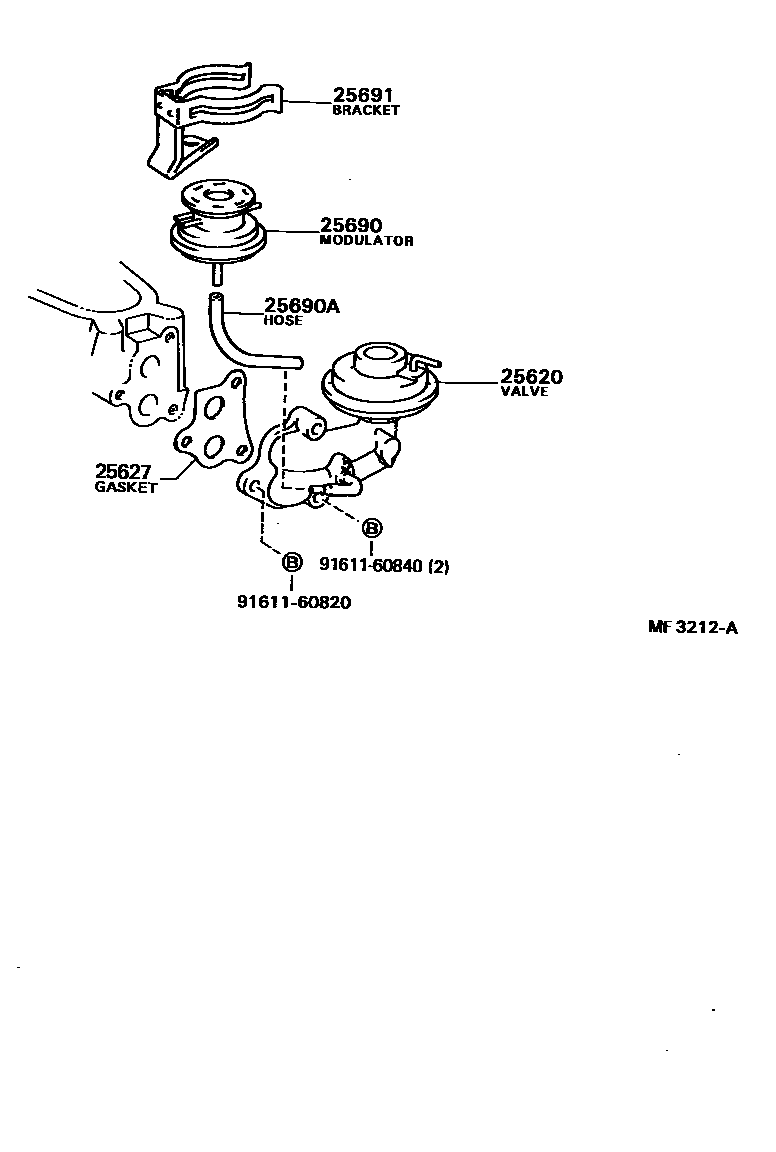

Toyota HILUX EPC diagram 2501, 废气再循环系统, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25611-73020 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-12042 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-20073 |
| 25601F | Connector (for No. 1 EGR tube) | 90404-20011 |
| 25620 | EGR valve assembly | 25620-71071 · 25620-71081 · 25620-72010 · 25620-72020 · 25620-73020 |
| 25620A | Stud bolts (for EGR valve) | 90116-08008 · 92112-40820 |
| 25624 | EGR valve adapter | 25607-72010 |
| 25627 | EGR valve gasket | 25627-31020 · 25627-71010 |
| 25690 | EGR vacuum regulator assembly | 25870-71020 · 25870-71021 · 25870-71041 · 25870-72010 |
| 25690A | Hoses (for EGR vacuum regulator) | 90445-11065 · 90445-11080 · 90910-05137 |
| 25691 | EGR vacuum regulator bracket | 25691-71020 · 25691-72010 · 25691-73020 · 25691-73030 |
