Toyota HILUX 燃油喷射系统 — Figure 2211
Toyota HILUX EPC diagram 2211, 燃油喷射系统, with 3 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22203 | Deceleration buffer sub-assembly (for throttle body) | 22202-73011 |

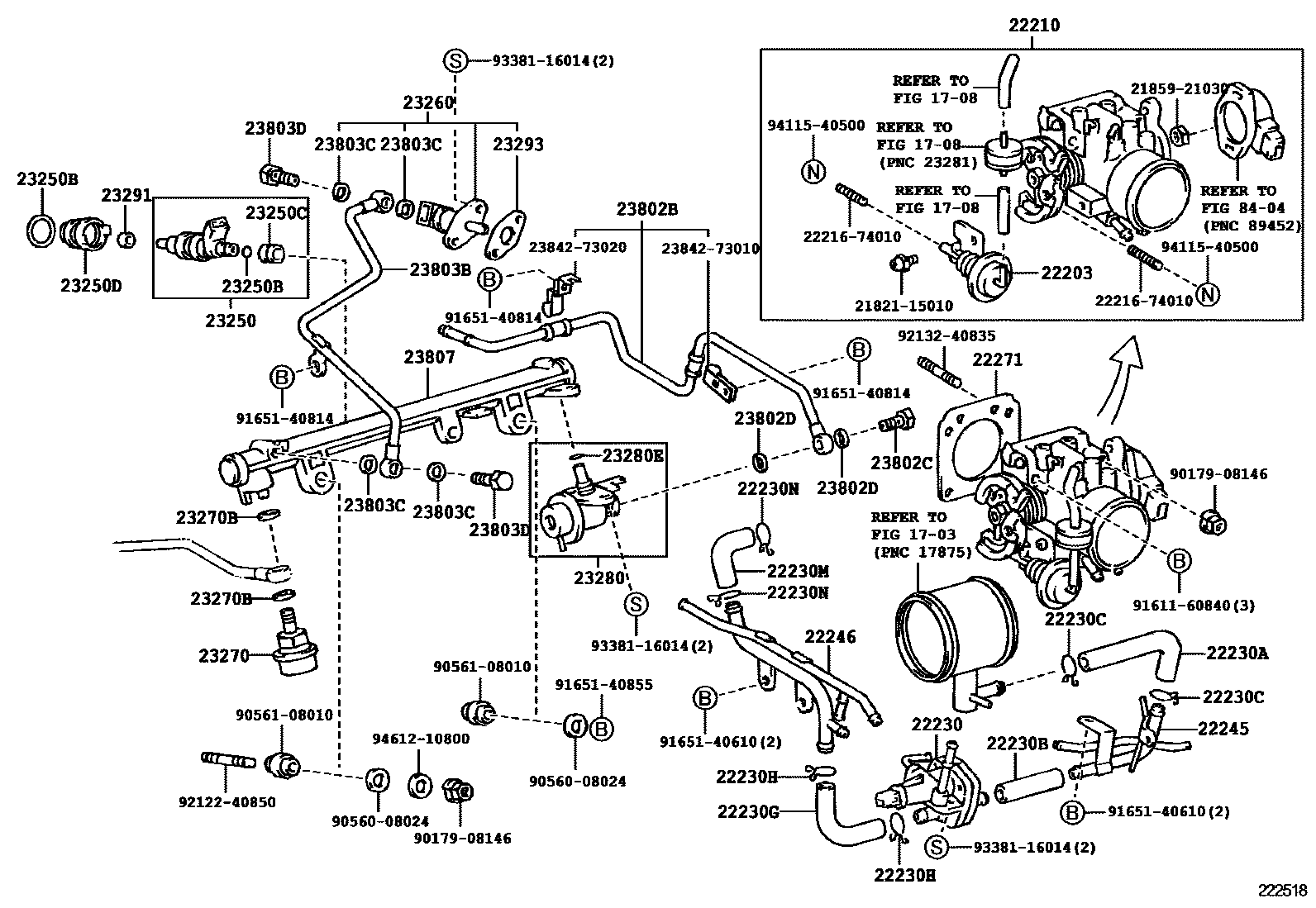

| 22210 | Throttle body assembly | 22210-73040 |
| 22230 | Auxiliary air valve assembly | 22230-73011 |
| 22230A | No. 1 auxiliary air valve hose | 22233-73021 |
| 22230B | No. 2 auxiliary air valve hose | 90445-21008 |
| 22230C | No. 1 auxiliary air valve hose clip | 90467-19003 |
| 22230G | No. 3 auxiliary air valve hose | 22236-73011 |
| 22230H | No. 3 auxiliary air valve hose clip | 90467-19003 |
| 22230M | No. 4 auxiliary air valve hose | 22237-73010 |
| 22230N | No. 4 auxiliary air valve clip | 90467-19003 |
| 22245 | No. 2 auxiliary air pipe | 22245-73020 |
| 22246 | No. 3 auxiliary air pipe | 22246-73011 |
| 22271 | Throttle body gasket | 22271-73010 |
| 23206A | fuel pump bracket | 23206-35160 |
| 23206B | fuel pump bracket gasket | 77169-14010 |
| 23217A | fuel pump filter | 23217-35040 |

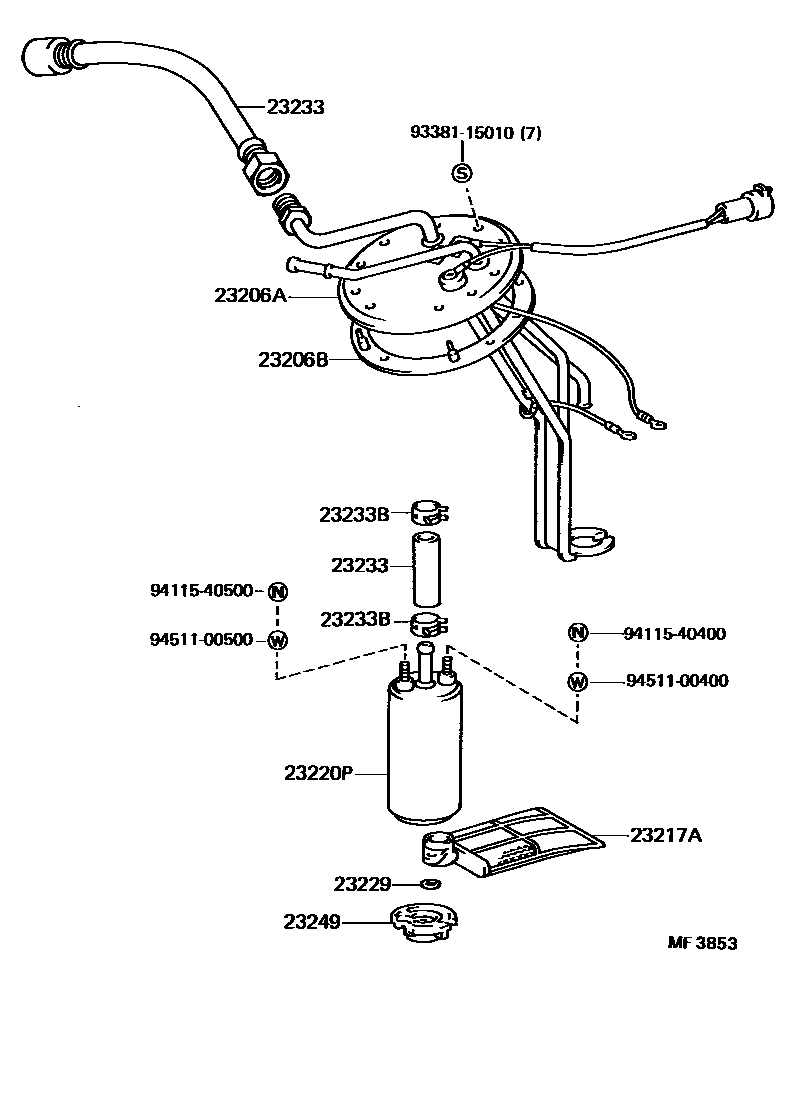

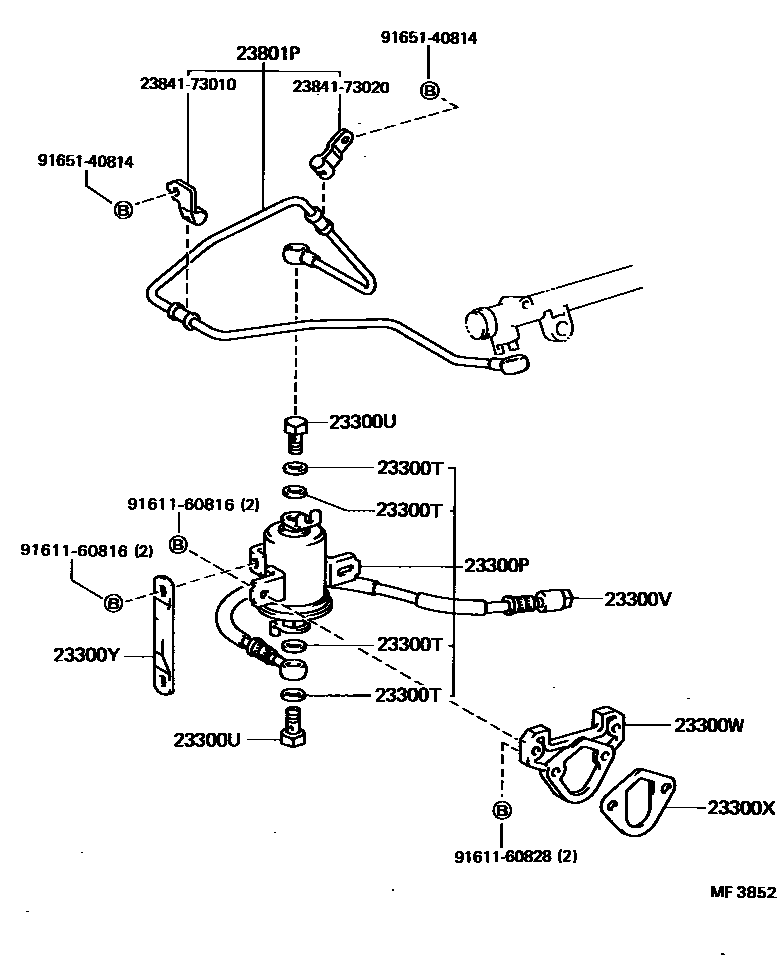

| 23220P | fuel pump assembly | 23220-16190 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23233 | fuel pump hose | 23091-35040 · 23239-16010 |
| 23233B | Clamp (for fuel pump hose) | 90467-13001 |
| 23249 | Rubber gasket (for fuel pump) | 23249-43080 |
| 23250 | Fuel injector assembly | 23209-45011 |
| 23250B | O-ring (for fuel injector) | 90301-07001 · 90301-23004 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23250D | Spacer (for injector) | 90561-10002 |
| 23260 | Cold start injector assembly | 23260-79085 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-52011 · 23270-73010 |
| 23270B | Gasket (for pulsation damper hose) | 23232-28010 · 90430-12005 |
| 23280 | Fuel pressure regulator assembly | 23280-73010 · 23280-73030 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 |
| 23291 | Injector vibration isolation pad | 23291-73010 |
| 23293 | Cold start injector gasket | 23293-73010 |
| 23300P | Fuel filter (for EFI) | 23300-79165 |
| 23300T | Gasket (for fuel filter) | 90430-12005 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23300V | Fuel hose (for fuel inlet) | 90923-01342 |
| 23300W | fuel filter bracket | 23264-73010 |
| 23300X | Vibration isolation pad (for fuel filter bracket) | 90923-06006 |
| 23300Y | Fuel filter support | 23921-73010 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-73010 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-73011 · 23802-73020 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-08004 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-08011 |
| 23803B | No. 3 fuel pipe sub-assembly | 23803-73011 |
| 23803C | Gasket (No. 3 injector overflow pipe) | 90430-08009 |
| 23803D | Joint bolt (for No. 3 injector overflow pipe) | 90401-08004 |
| 23807 | Oil pipe sub-assembly | 23807-73010 |
