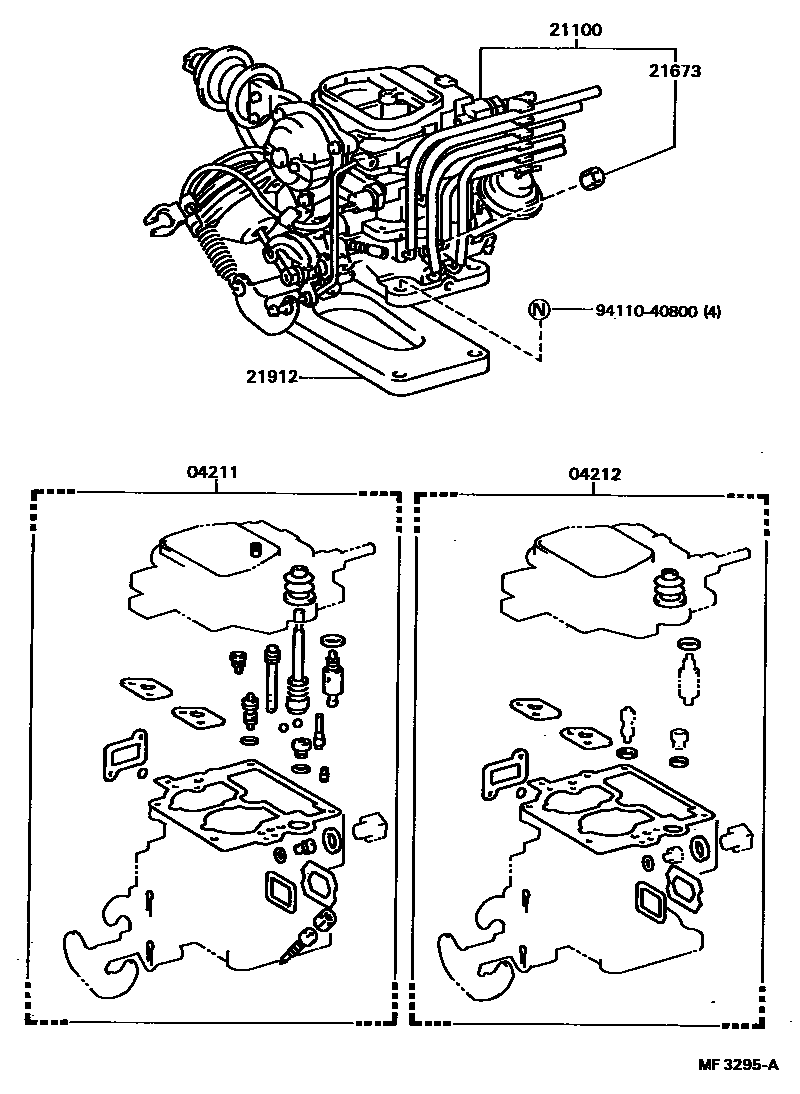

Toyota HILUX carburetor assembly — Figure 2102
Toyota HILUX EPC diagram 2102, carburetor assembly, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04211 | carburetor components | 04211-71020 · 04211-73160 |
| 04212 | carburetor gasket assembly | 04212-71030 · 04212-72030 |
| 21100 | carburetor assembly | 21100-71030 · 21100-73190 |
| 21673 | Idle speed limit cap | 21673-71030 |
| 21912 | Carburetor insulation pad | 21912-71020 |
