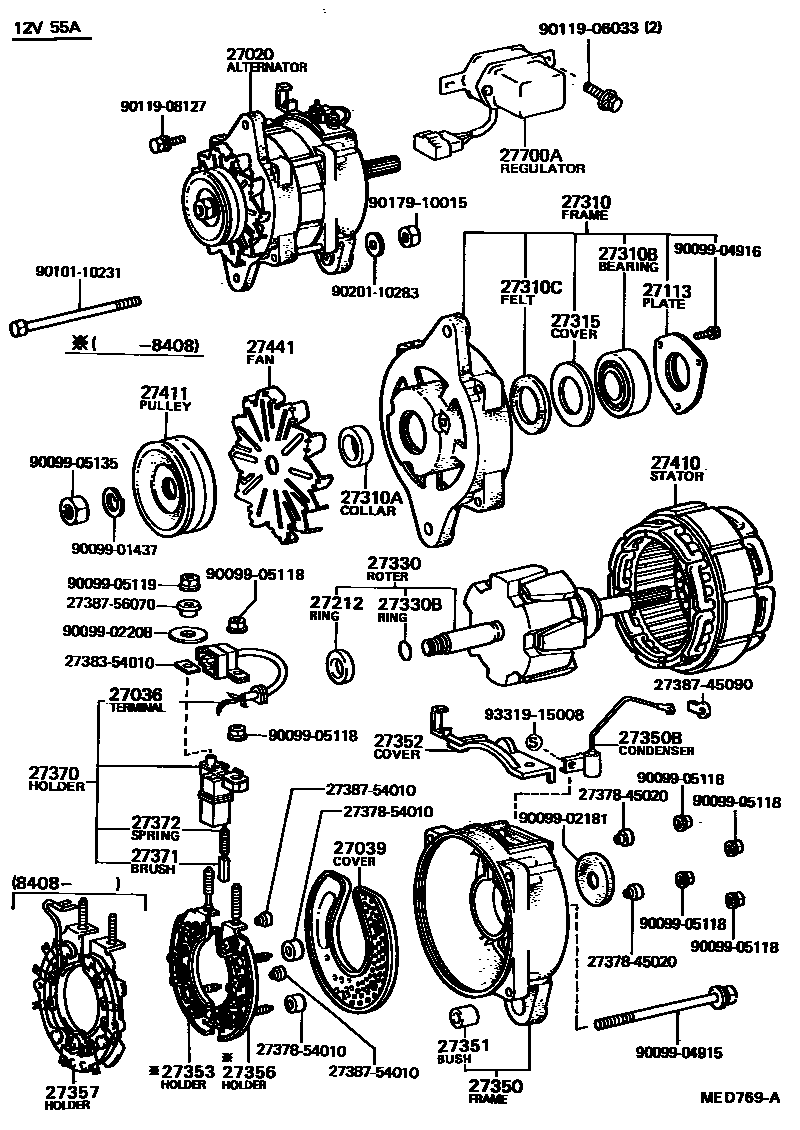

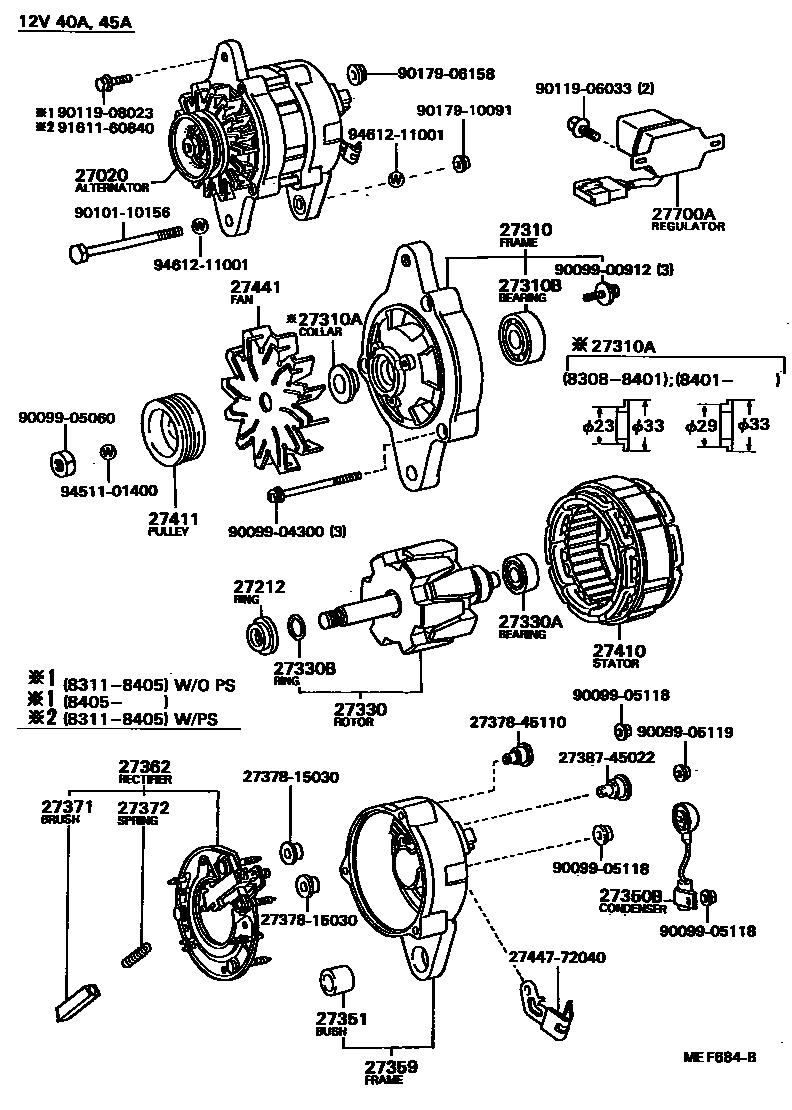

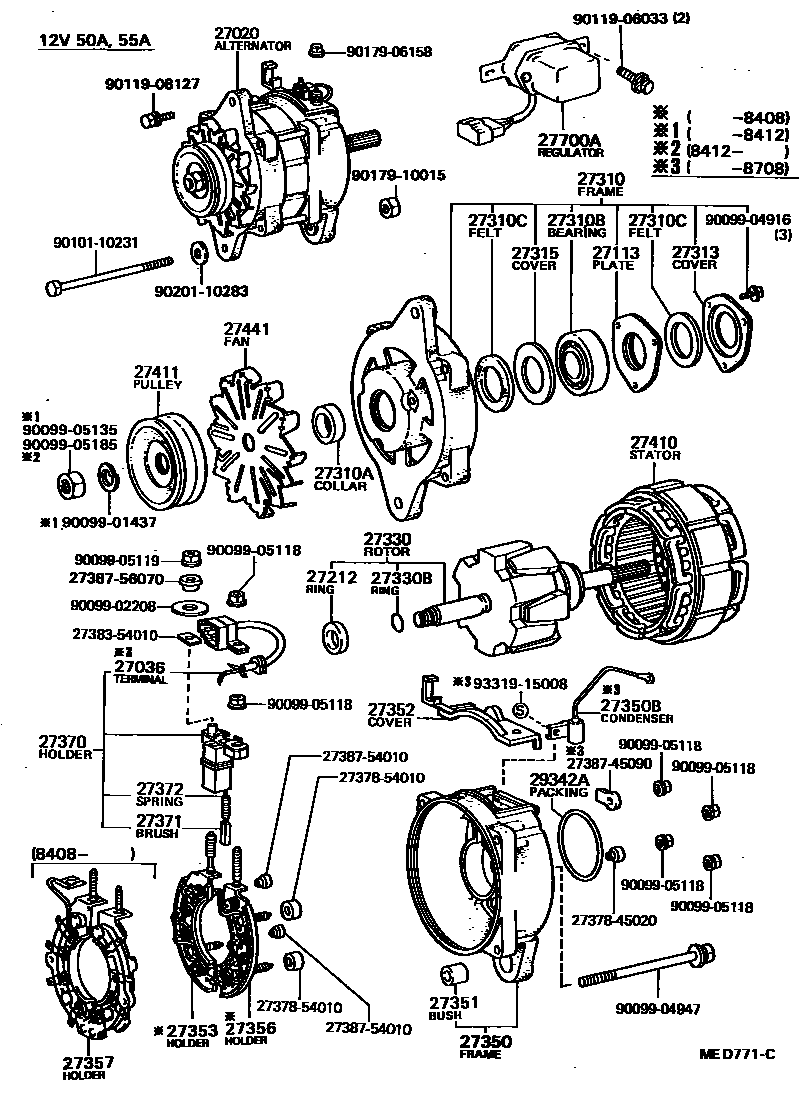

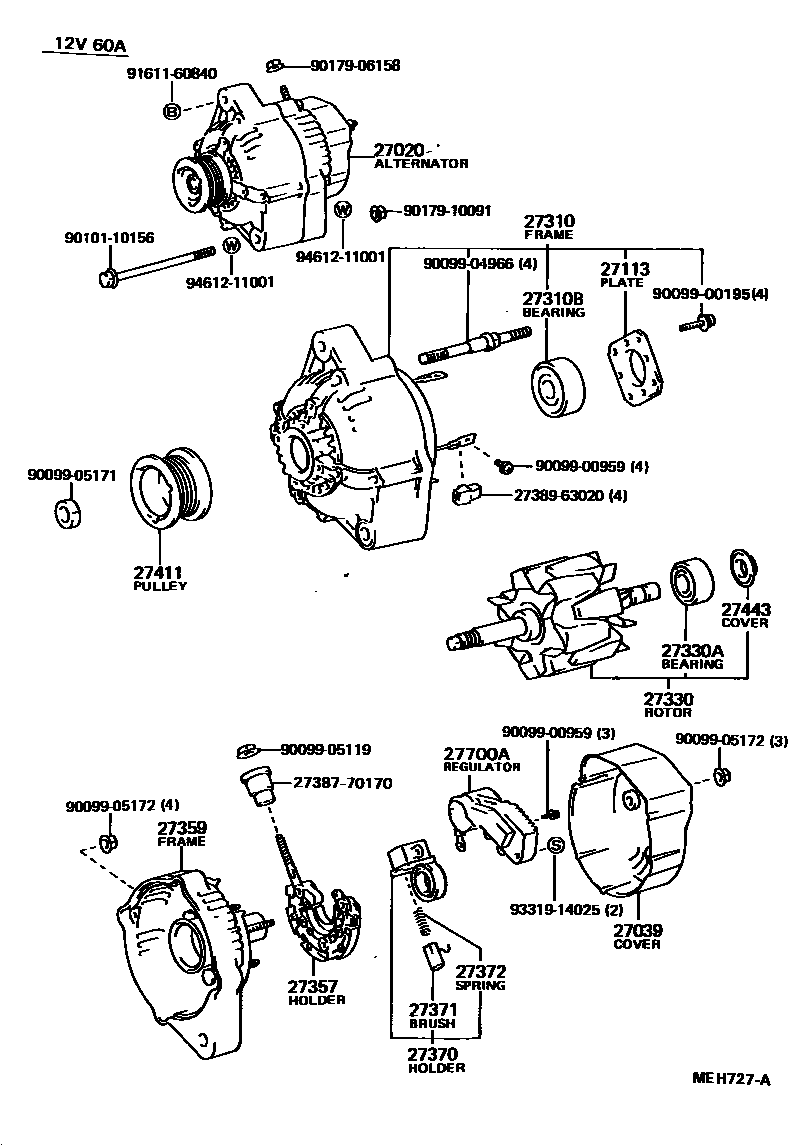

Toyota HILUX Alternator — Figure 1903
Toyota HILUX EPC diagram 1903, Alternator, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27020-54012 · 27020-54160 · 27020-72030 · 27020-72050 · 27060-72061 · 27060-72062 |
| 27036 | Generator lead terminal sub-assembly | 27036-54010 |
| 27039 | Alternator Rear End Cover | 27039-56090 · 27039-72010 |
| 27113 | Generator bearing block | 27312-56070 · 27312-57060 · 27312-72100 |
| 27212 | Spacer ring (for generator rotor) | 27212-39050 · 27333-57060 · 27412-54040 |
| 27310 | Alternator Drive End Frame Assembly | 27310-15030 · 27310-43100 · 27310-54012 · 27310-54130 · 27310-72030 |
| 27310A | Collar or nut (for generator drive end cover) | 27412-16030 · 27412-31040 · 27412-57060 · 90099-19251 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10120 · 90099-10126 · 90099-10137 · 90099-10142 · 90099-10159 |
| 27310C | Felt pad (for generator drive end cover) | 90099-02207 · 90099-02209 |
| 27313 | Generator No. 2 felt pad inner cover | 27313-57060 |
| 27315 | Generator No. 1 felt pad inner cover | 27315-56070 · 27315-57060 |
| 27330 | Alternator Rotor Assembly | 27330-26050 · 27330-45020 · 27330-54011 · 27330-64010 · 27330-72100 · 27330-72101 |
| 27330A | Bearings (for generator rotor) | 90099-10111 · 90099-10116 · 90099-10140 |
| 27330B | Snap ring (for generator rotor) | 90099-07048 · 90099-07103 · 90099-07108 |
| 27350 | Rectifier end frame assembly | 27350-54010 · 27350-54130 |
| 27350B | generator capacitor | 90099-52065 · 90099-52066 · 90099-52082 |
| 27351 | Bushing (for generator rectifier end frame) | 27351-38051 · 27351-56013 |
| 27352 | End cover brush cover | 27388-54011 · 27388-54200 · 27388-64010 |
| 27353 | Generator positive rectifier frame | 27353-54010 |
| 27356 | Generator negative rectifier frame | 27356-54010 |
| 27357 | Generator rectifier frame | 27357-63020 · 27357-64060 |
| 27359 | Generator rectifier end frame | 27359-16011 · 27359-72030 |
| 27362 | Rectifier assembly with brushes | 27362-18011 |
| 27370 | Alternator Brush Holder Assembly | 27370-35060 · 27370-54010 · 27370-54250 · 27370-63021 |
| 27371 | Generator brushes | 27371-31011 · 27371-56070 · 27371-63020 |
| 27372 | Generator brush spring | 27372-31011 · 27372-56070 · 27372-72100 |
| 27410 | Generator stator assembly | 27410-15030 · 27410-38120 · 27410-43040 · 27410-64010 |
| 27411 | Alternator Pulley | 27411-16180 · 27411-16210 · 27411-16211 · 27411-54020 · 27411-54170 · 27411-63081 · 27411-72040 |
| 27441 | generator fan | 27441-34030 · 27441-54040 · 27441-56090 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27700A | Generator voltage regulator assembly | 27700-70030 · 27700-72030 · 27700-72040 |
| 29342A | Vacuum pump seals | 90099-14055 |
