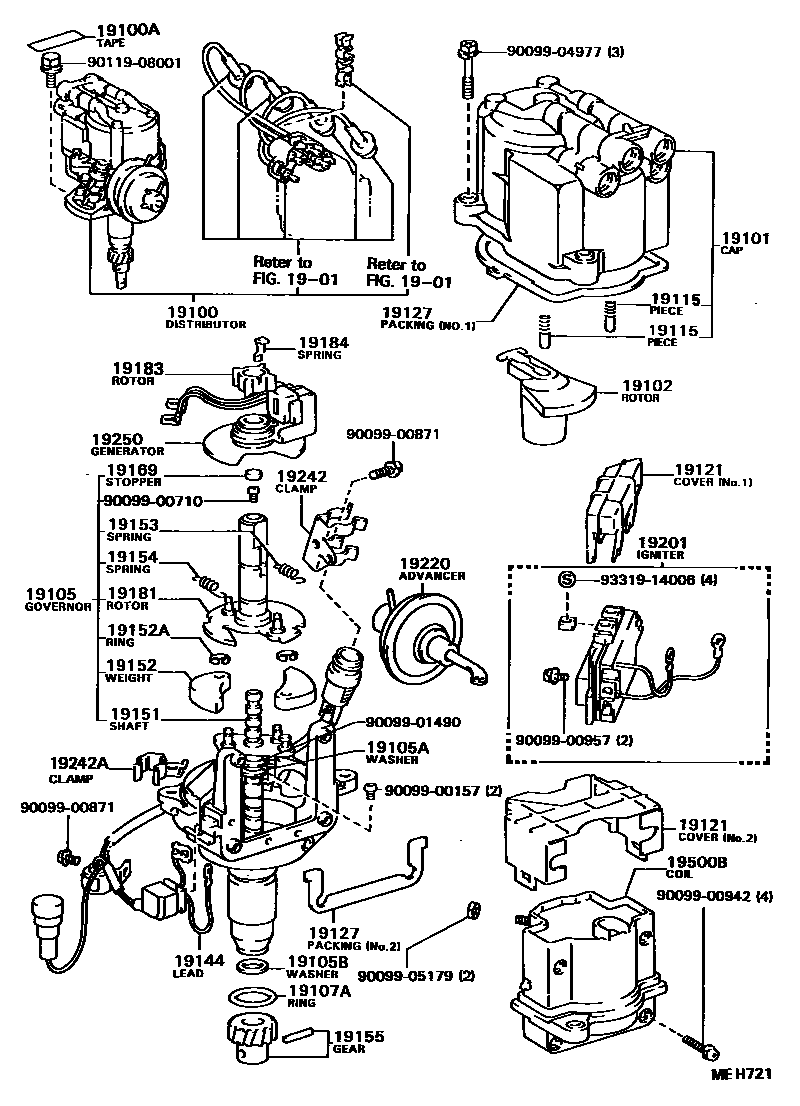

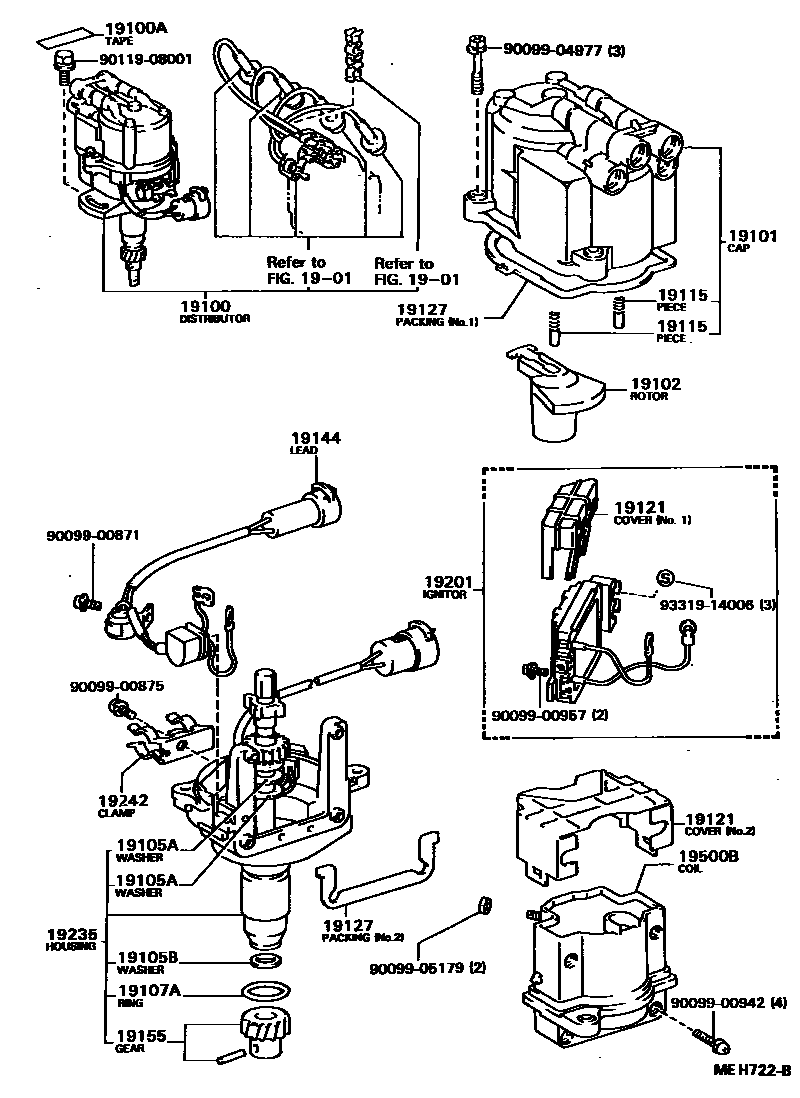

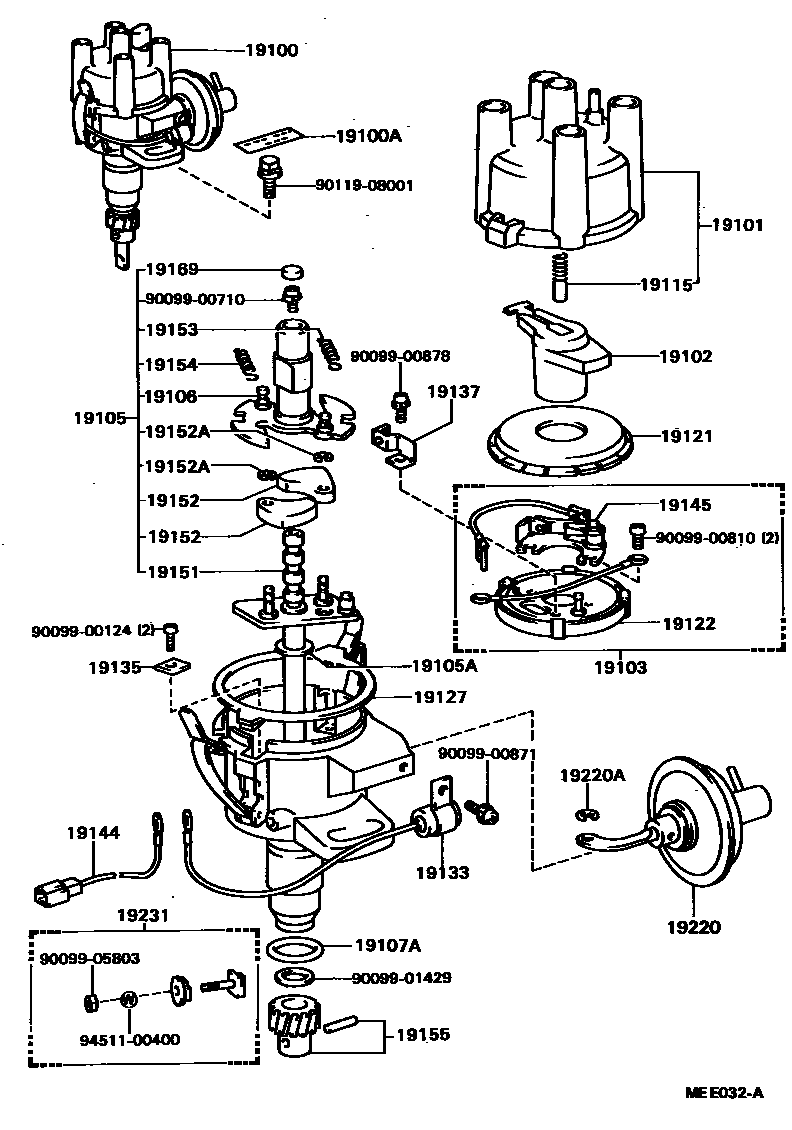

Toyota HILUX 分电器 — Figure 1902
Toyota HILUX EPC diagram 1902, 分电器, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19030-71060 · 19030-72010 · 19030-73010 · 19100-71010 |
| 19100A | sealing tape | 90919-24004 |
| 19101 | Distributor cover sub-assembly | 19101-71010 · 19101-71020 |
| 19102 | Distributor flame head sub-assembly | 19102-16040 · 19102-33012 · 19102-63010 |
| 19103 | Distributor breaker sub-assembly | 19103-26211 |
| 19105 | Speed governor sub-assembly | 19105-71011 · 19105-71060 · 19105-72010 |
| 19105A | Thrust washer (for governor shaft) | 90099-01385 · 90099-01386 · 90099-01387 · 90099-01412 · 90099-01486 · 90099-01487 · 90099-01488 · 90099-01489 · 90099-01492 · 90099-01493 · 90099-01494 · 90099-01495 |
| 19105B | Thrust Washer No. 2 (for governor shaft) | 90099-01429 |
| 19106 | Distributor cam sub-assembly | 19106-18030 · 19106-88220 |
| 19107A | Distributor housing O-ring | 90099-14020 |
| 19115 | Distributor cover center piece | 19115-50010 · 19115-63010 · 19115-71010 |
| 19121 | dust cover | 19121-38030 · 19121-63010 · 19121-63040 · 19121-63090 |
| 19122 | Distributor fixing plate | 19122-26210 · 19122-26211 |
| 19127 | Dust seal | 19127-15010 · 19127-63010 · 19127-63020 |
| 19133 | Distributor capacitor | 90099-52059 |
| 19135 | fixed plate | 90099-02198 |
| 19137 | Shock absorber spring sub-assembly | 19137-33012 |
| 19144 | Distributor breaker lead | 19144-34180 · 19144-71011 · 19144-71061 · 19144-73011 |
| 19145 | Distributor contacts | 19145-26060 |
| 19151 | governor shaft | 19151-71010 · 19151-71020 |
| 19152 | Speed regulator weight | 19152-44170 · 19152-63010 · 19152-71010 |
| 19152A | Snap ring (for governor weight) | 90099-07109 · 90099-07122 |
| 19153 | A governor spring | 19153-71011 · 19153-71012 · 19153-71060 · 19153-72010 |
| 19154 | B governor spring | 19153-71011 · 19153-71012 · 19153-71060 · 19154-72010 |
| 19155 | Distributor spiral gear | 19195-71010 · 19195-71011 |
| 19169 | Cam grease stop | 19169-32010 · 19169-63011 |
| 19181 | Distributor signal distributor | 19181-71060 · 19181-72010 |
| 19183 | Signal splitter | 19183-63030 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19201 | igniter | 89620-20250 · 89620-32020 |
| 19220 | Distributor vacuum advance device assembly | 19220-71011 · 19220-71060 · 19220-72010 |
| 19220A | Snap ring (for distributor vacuum advance device) | 90099-07109 |
| 19231 | Distributor terminals | 19231-24140 |
| 19235 | Distributor housing | 19235-73010 |
| 19242 | Cable clip | 19242-71010 · 19242-73010 |
| 19242A | Cable No. 2 | 19242-71060 · 19242-71061 |
| 19250 | Signal generator assembly | 19251-63011 · 19251-72021 |
| 19500B | Ignition coil assembly | 90919-02135 · 90919-02139 |
