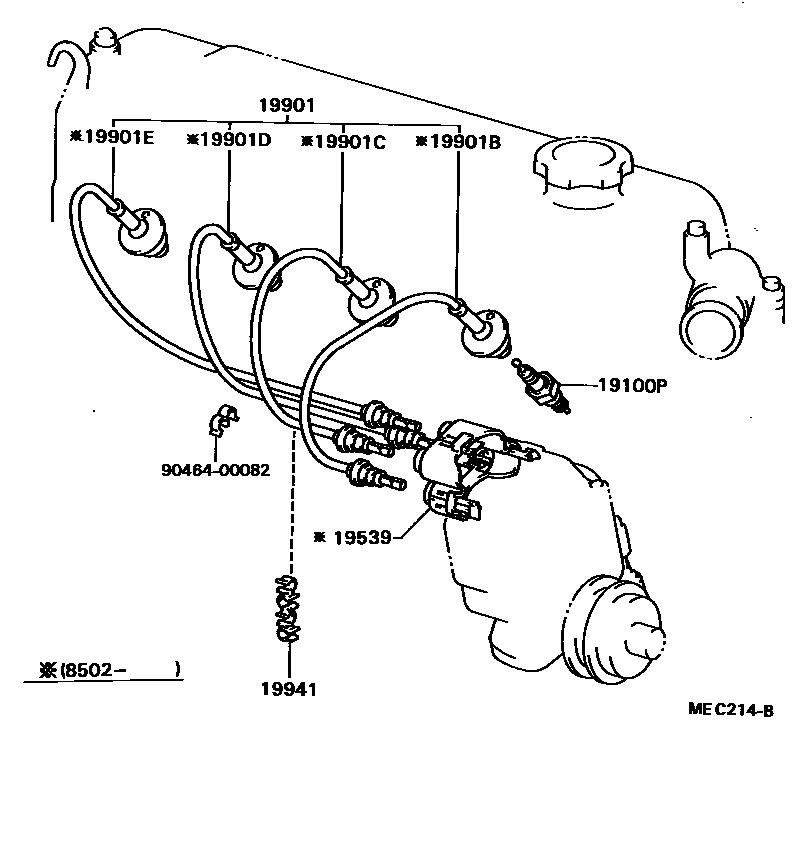

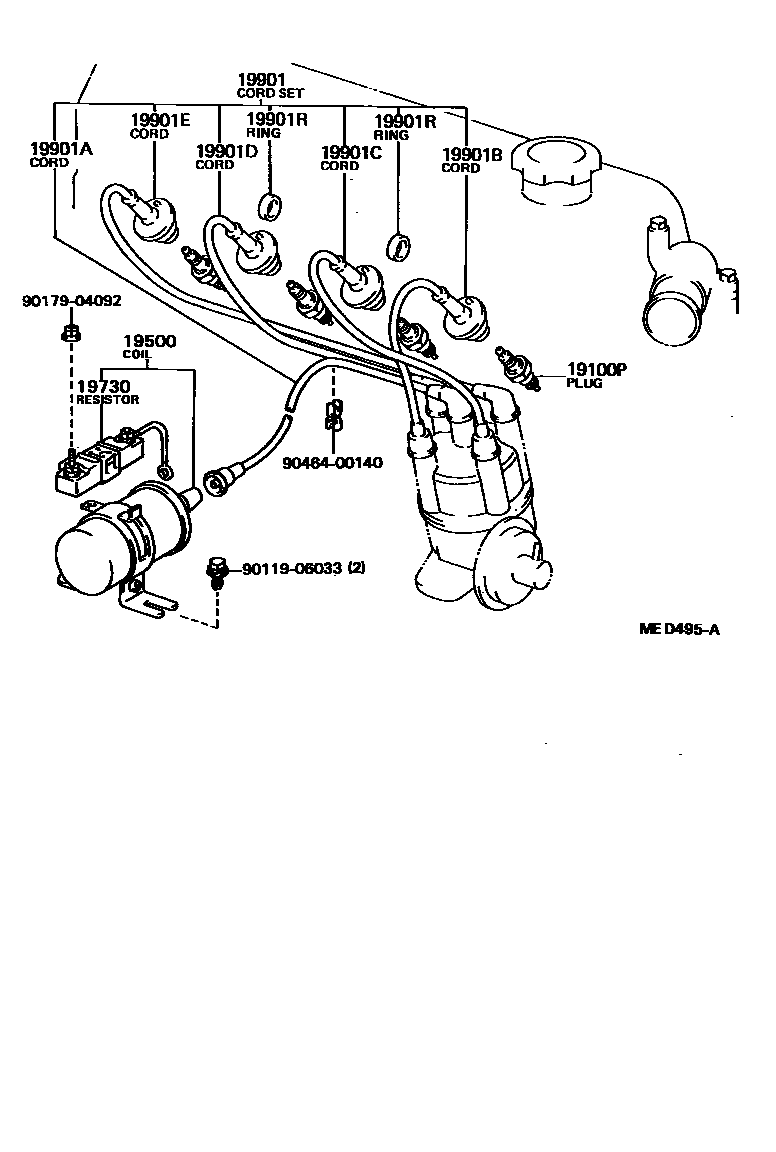

Toyota HILUX 点火线圈和火花塞 — Figure 1901
Toyota HILUX EPC diagram 1901, 点火线圈和火花塞, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01059 · 90919-01115 · 90919-01116 · 90919-01143 |
| 19500 | Ignition coil assembly | 90919-02156 |
| 19539 | No. 4 damping wire fixing piece | 19539-71011 |
| 19730 | Ignition coil resistor | 90919-04033 |
| 19850 | Glow plug assembly | 19850-54050 · 19850-54070 · 19850-54071 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19856 | Connecting nut (for glow plug) | 90170-04001 · 90170-04002 |
| 19871 | Glow plug connector No. 1 | 19871-54010 · 19871-54011 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21342 · 90919-22132 · 90919-22141 |
| 19901A | coil damping line | 90919-13144 |
| 19901B | No. 1 spark plug damper wire | 90919-12469 · 90919-12484 · 90919-12498 |
| 19901C | No. 2 spark plug damper wire | 90919-12470 · 90919-12485 · 90919-12499 |
| 19901D | No. 3 spark plug damper wire | 90919-12471 · 90919-12486 · 90919-12500 |
| 19901E | No. 4 spark plug damper wire | 90919-12472 · 90919-12487 · 90919-12501 |
| 19901R | Rubber spark plug damping wire ring | 90202-11067 |
| 19941 | No. 1 damping wire clip | 90929-01031 |
