Toyota HILUX vacuum tube — Figure 1708

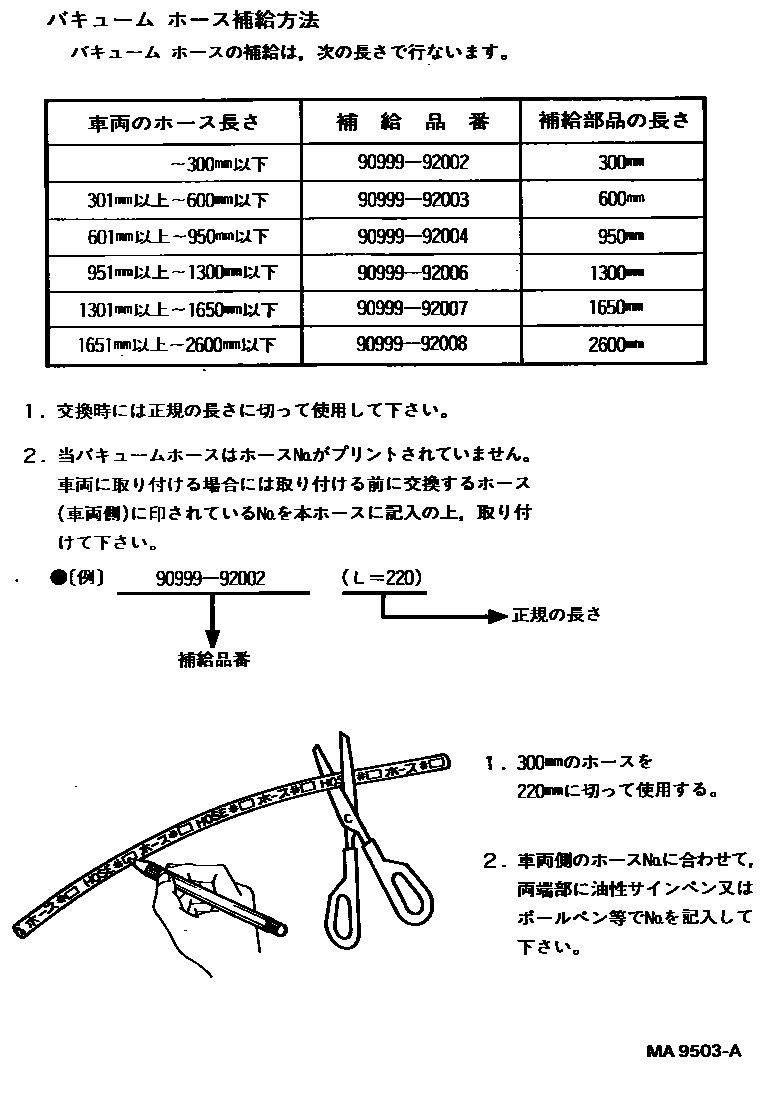

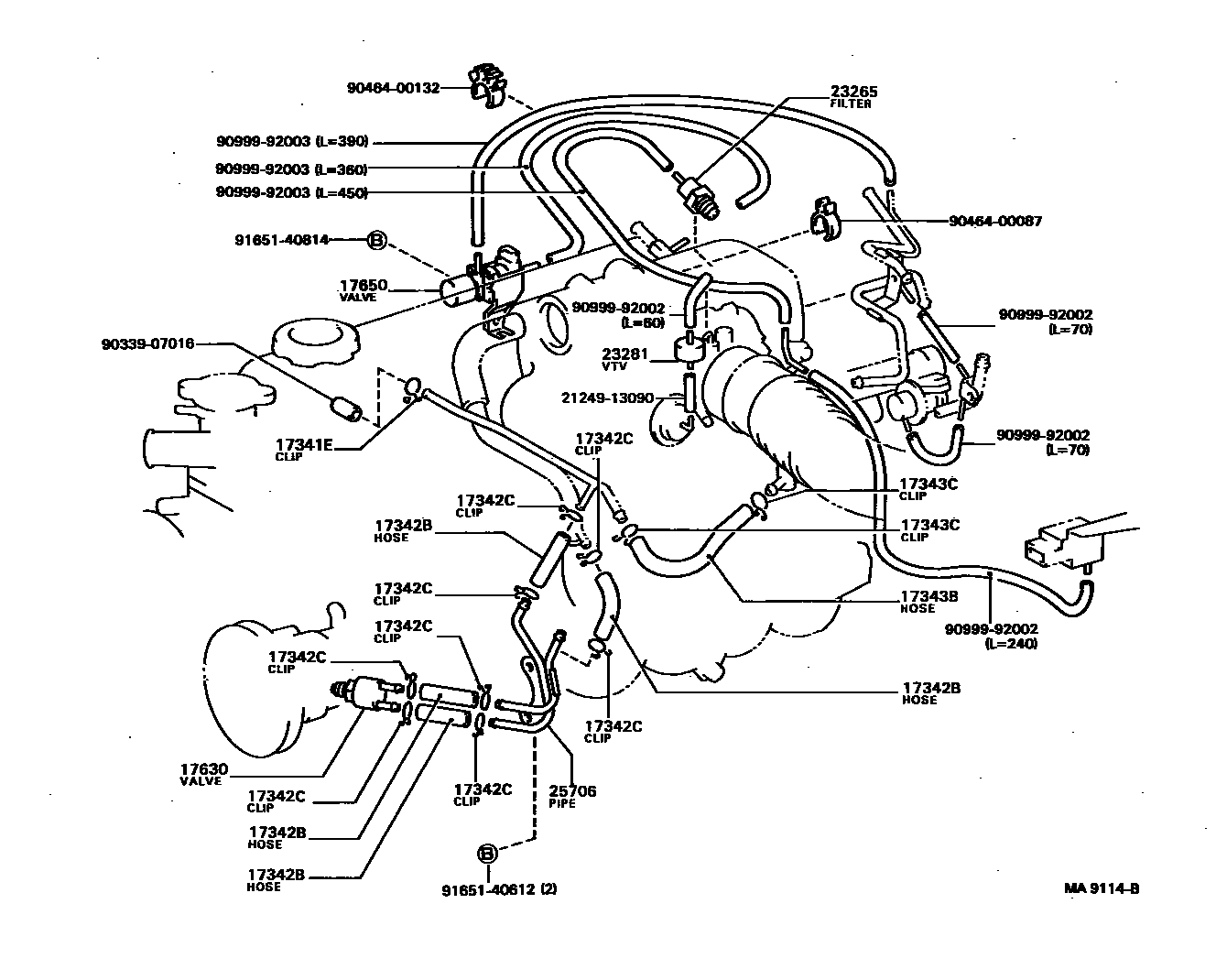

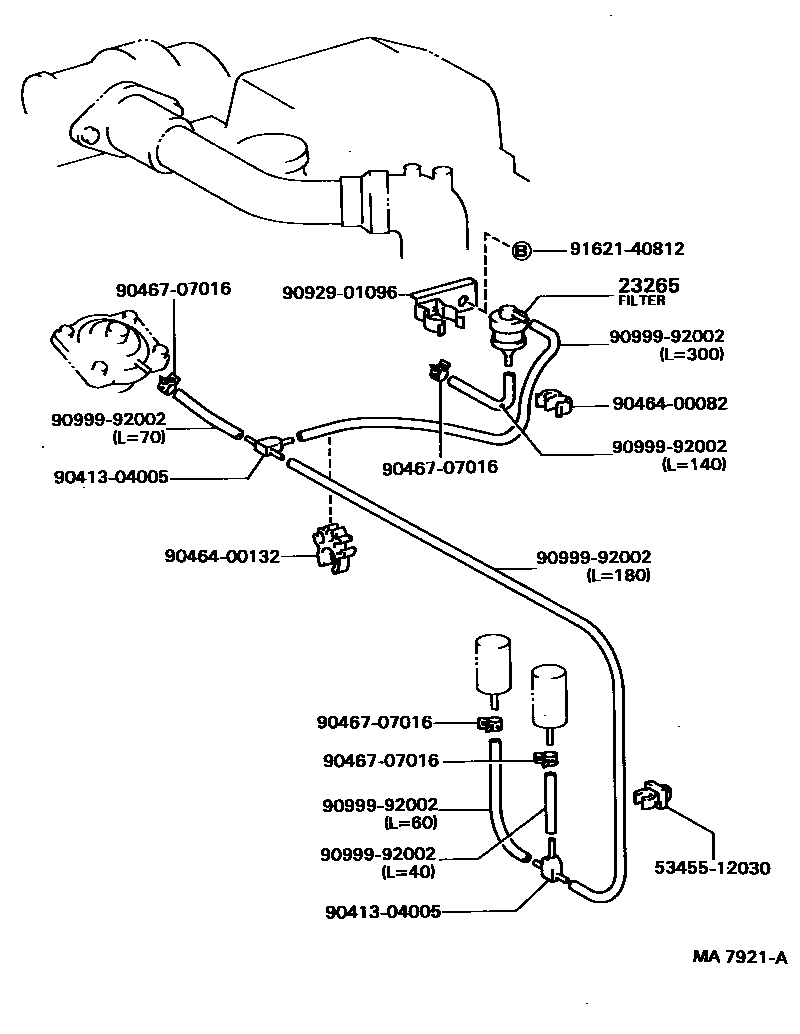

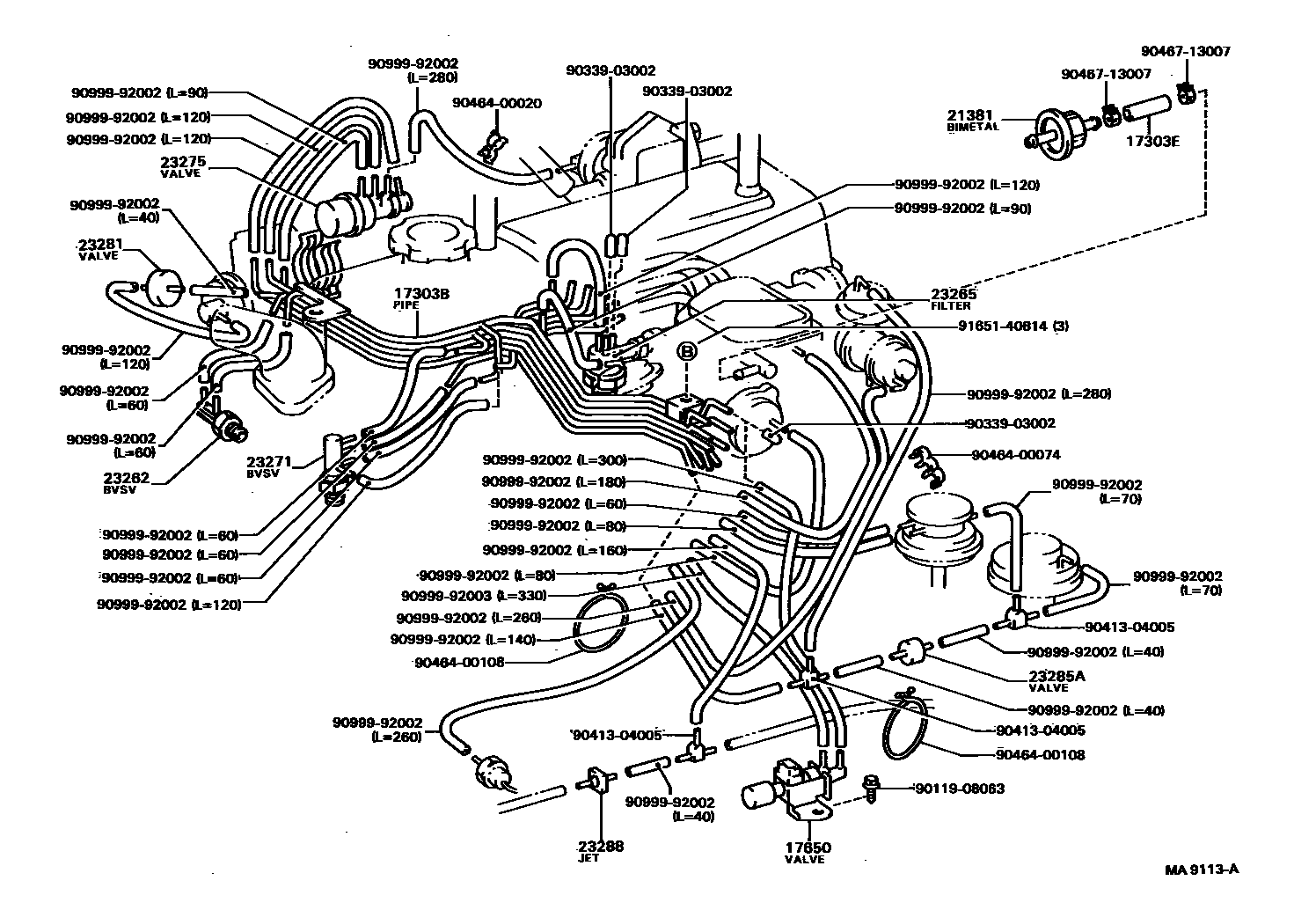

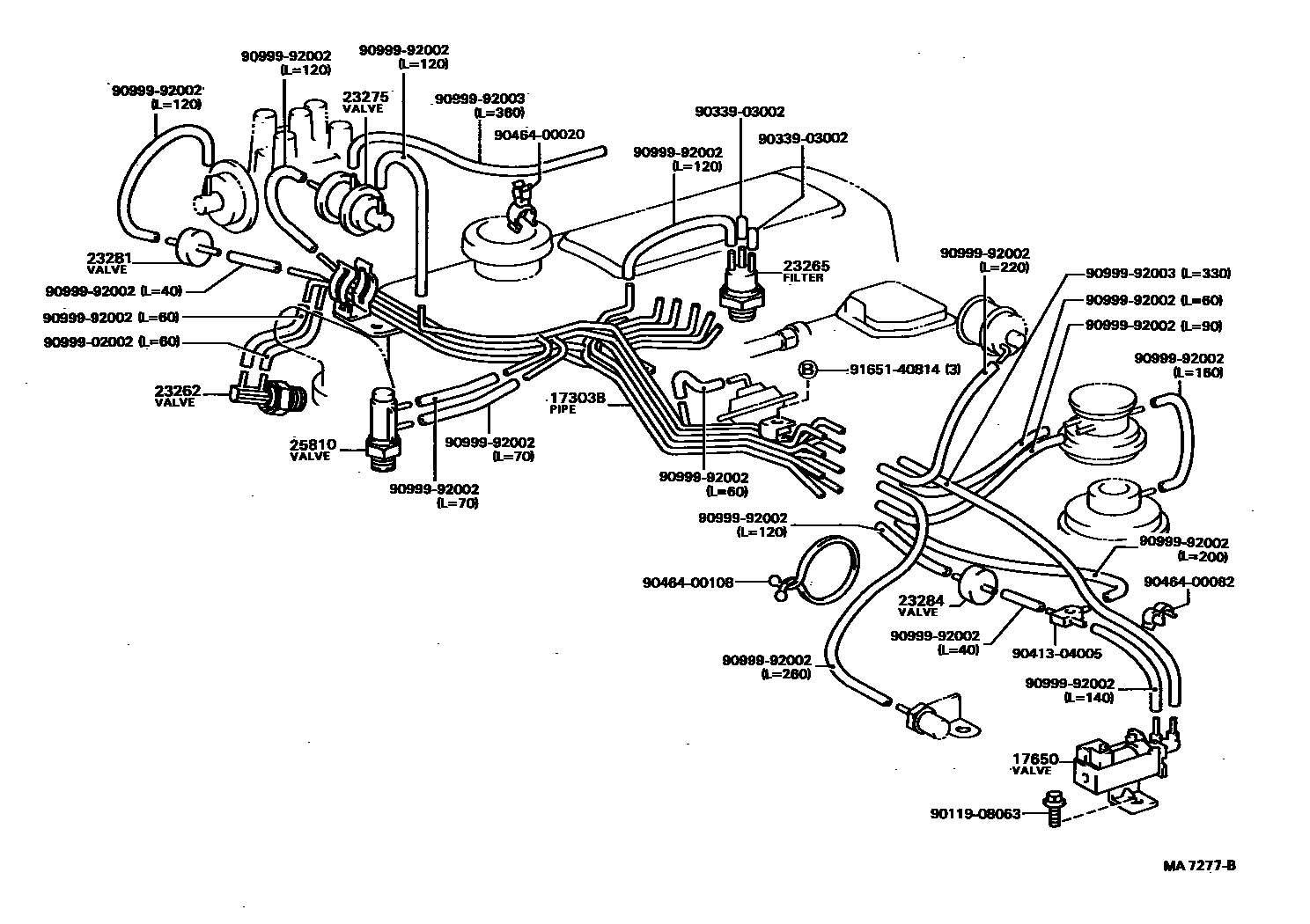

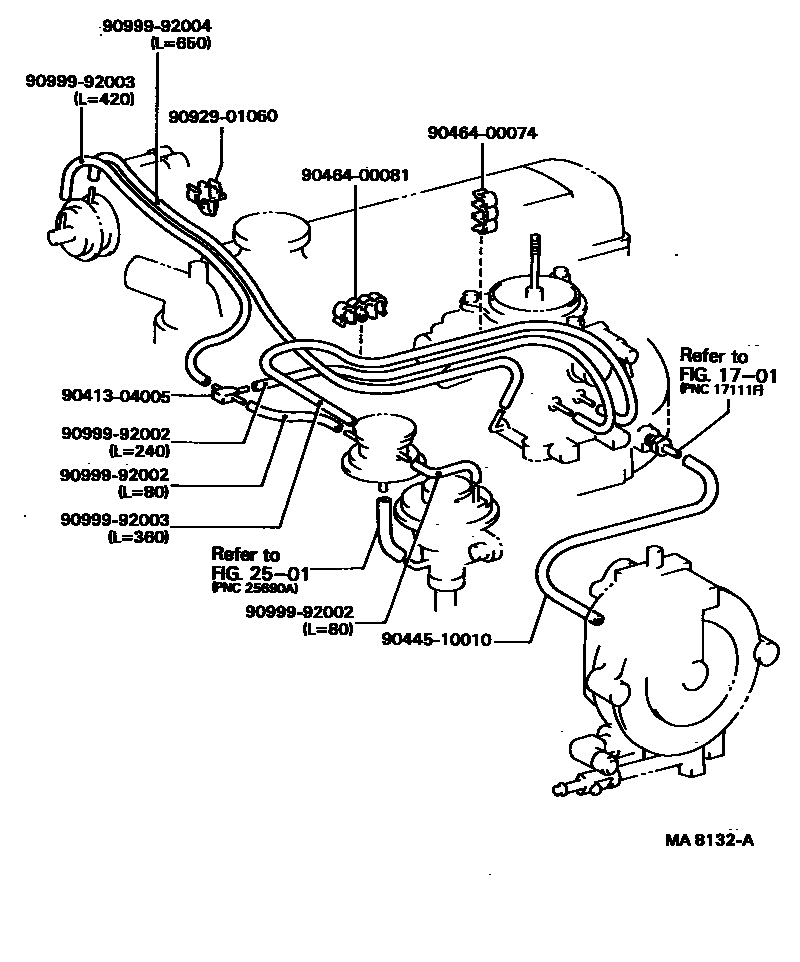

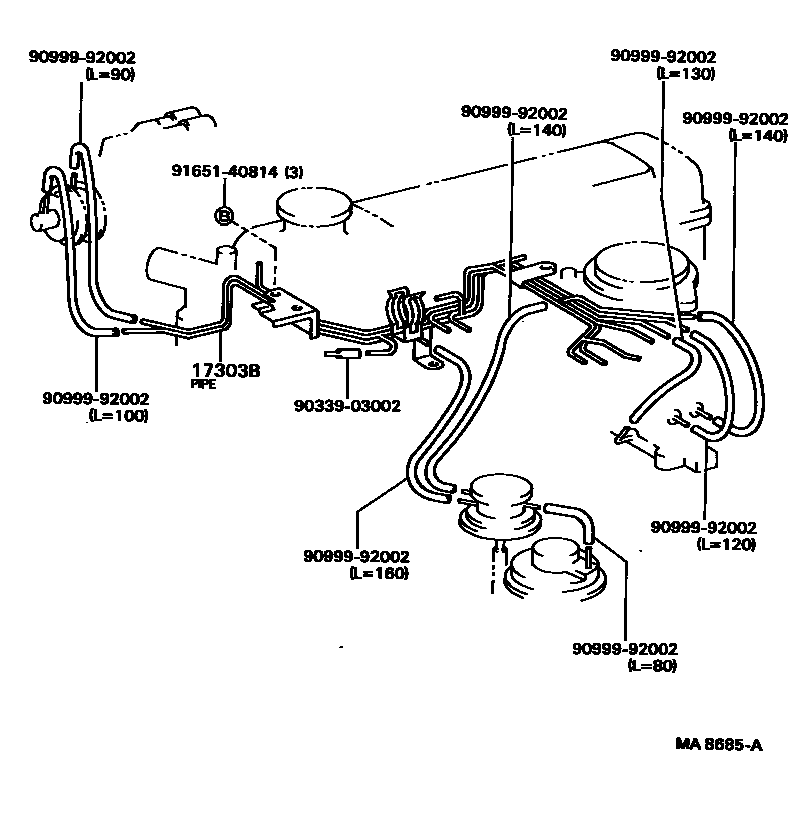

Toyota HILUX EPC diagram 1708, vacuum tube, with 7 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-71060 · 17303-72010 · 17303-72020 |
| 17303E | No. 1 hose (for air pipe) | 90445-14079 |
| 17341E | Clamp No. 1 (for idle lift hose) | 90467-12058 |
| 17342B | No. 2 hose (for idle boost) | 90445-12127 |
| 17342C | Clamp No. 2 (for idle lift hose) | 90467-12058 |
| 17343B | No. 3 hose (for idle speed boost) | 90445-12211 |
| 17343C | Clamp No. 3 (for idle lifting hose) | 90467-12058 |
| 17630 | Air control valve assembly | 17630-28010 |
| 17650 | Vacuum switch valve assembly | 89570-35180 · 89570-35200 · 90910-12038 |
| 21381 | thermostat bimetal | 21381-71050 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05013 · 90925-05017 |
| 23265 | No. 1 gas filter | 90917-11009 · 90917-11022 · 90917-11024 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02077 |
| 23275 | Vacuum control valve No. 1 | 90925-03152 · 90925-03166 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01014 · 90925-01015 · 90925-01019 · 90925-01027 · 90925-01029 |
| 23284 | No. 4 Vacuum Transfer Valve | 90925-01021 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23288 | Nozzle No. 1 | 90925-04026 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 17645-73011 |
| 25810 | Bimetal valve assembly | 25820-37010 |
