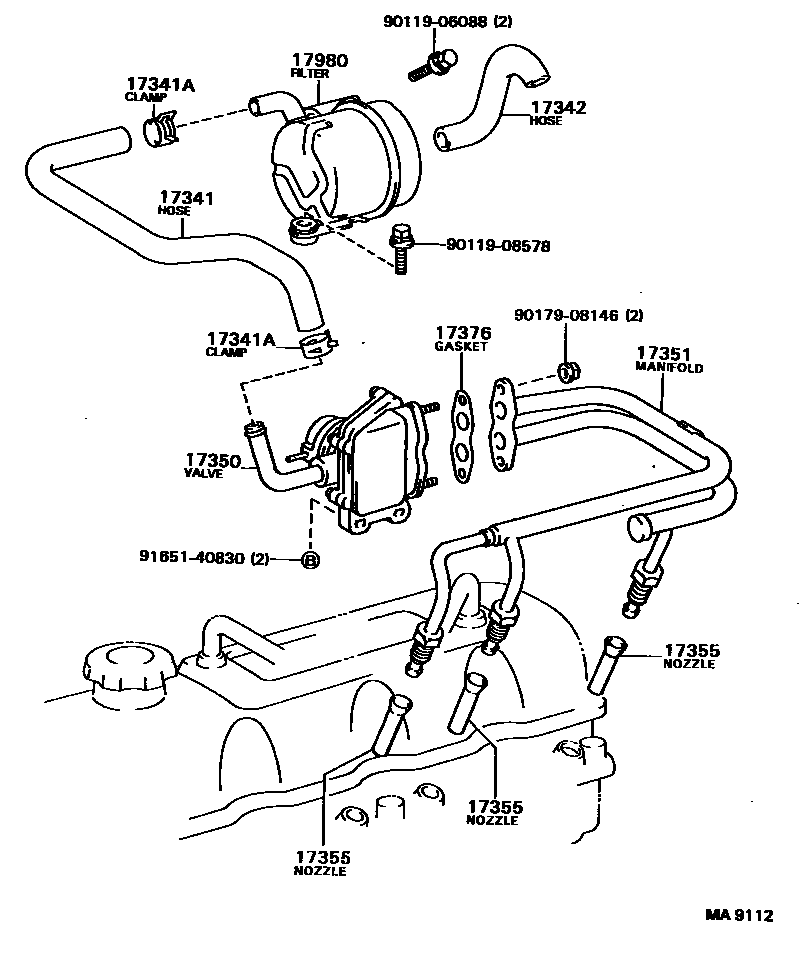

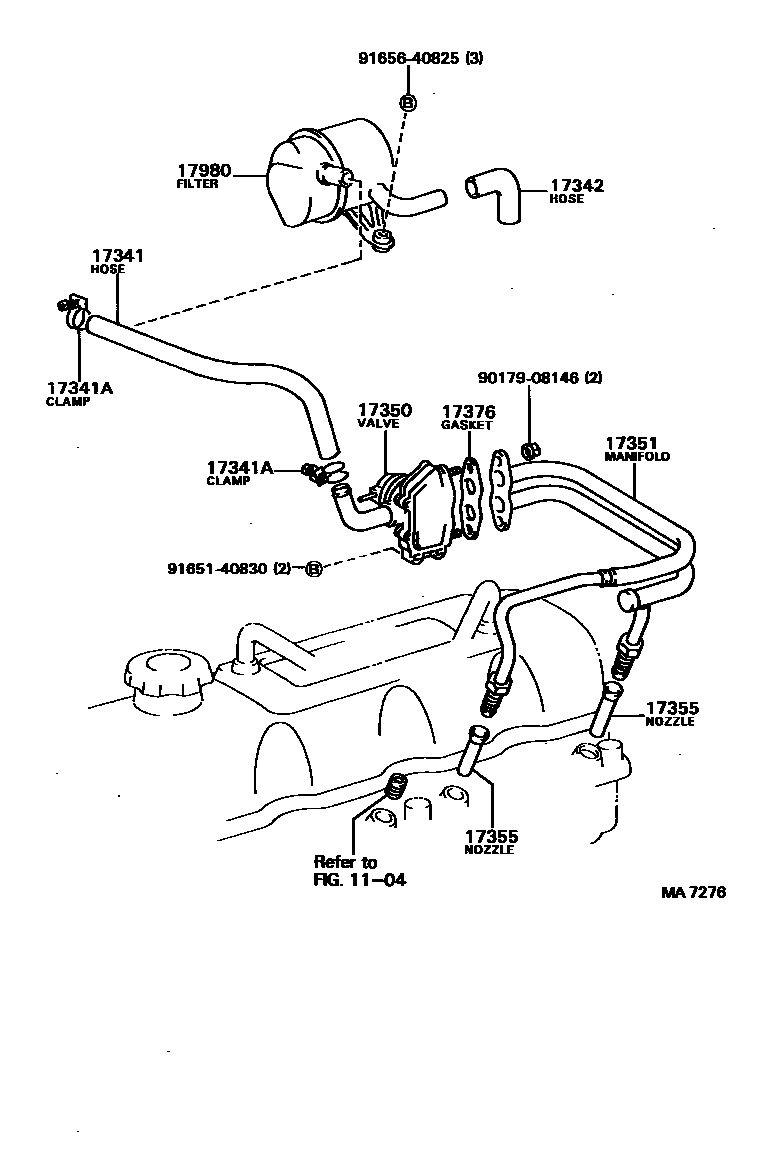

Toyota HILUX 歧管喷气系统 — Figure 1706
Toyota HILUX EPC diagram 1706, 歧管喷气系统, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341 | Hoses No. 1 (for air injection systems) | 17341-71020 · 17341-73030 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 90467-26002 · 96111-10300 |
| 17342 | Hoses No. 2 (for air injection systems) | 17342-71010 · 17342-73010 |
| 17350 | Reed valve assembly | 17350-71040 · 17350-72010 |
| 17351 | jet manifold | 17306-71010 · 17306-73011 |
| 17355 | jet nozzle | 17355-71010 |
| 17376 | Air tube gasket No. 1 | 17376-71010 |
| 17980 | Secondary air suction filter assembly | 17980-71020 · 17980-73010 |
