Toyota HILUX Air Cleaner — Figure 1703

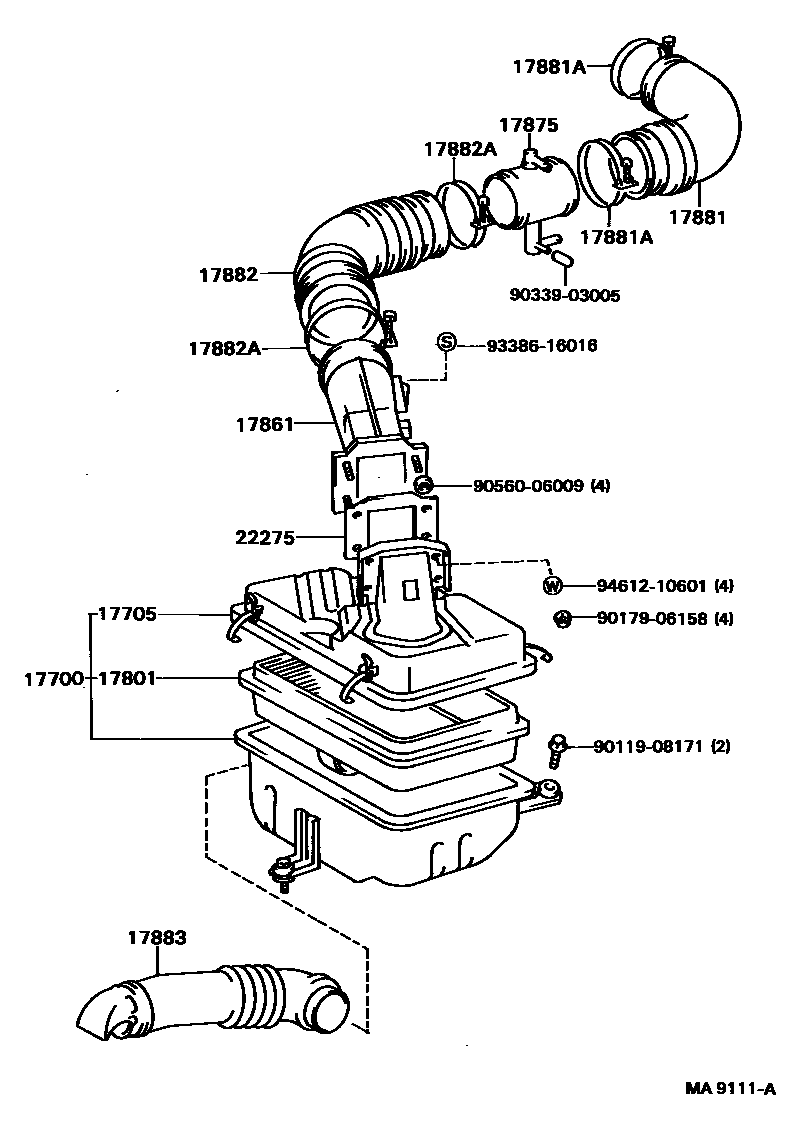

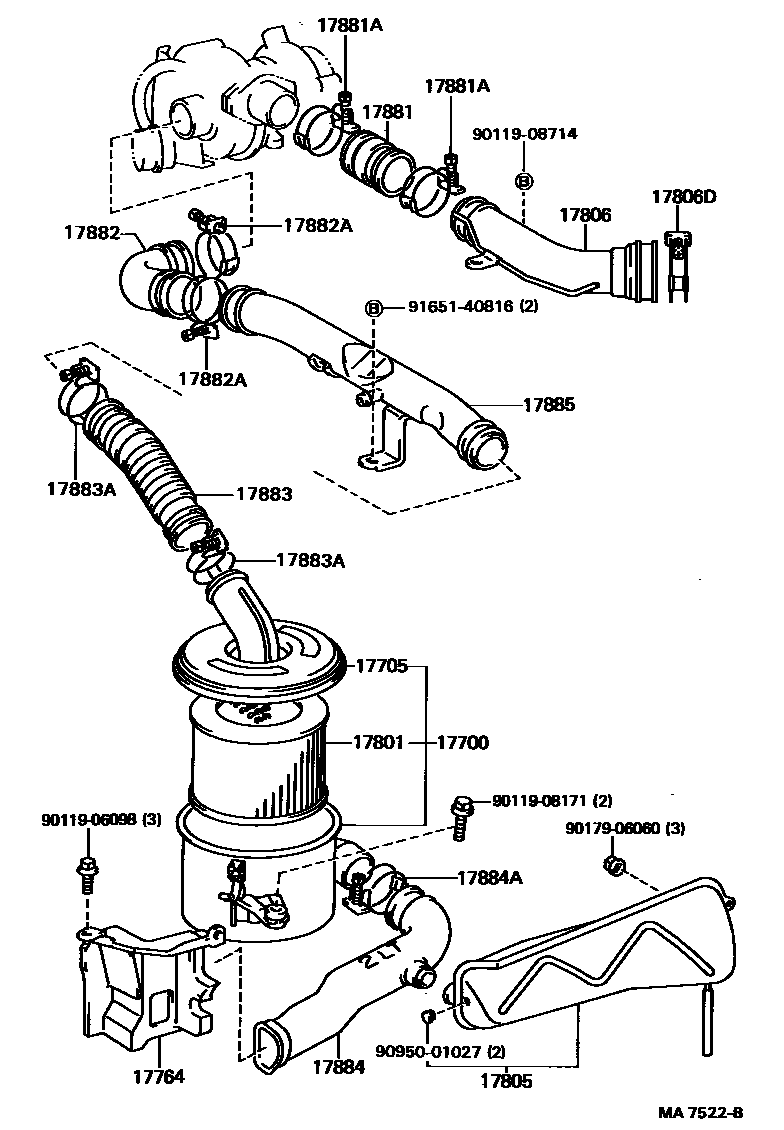

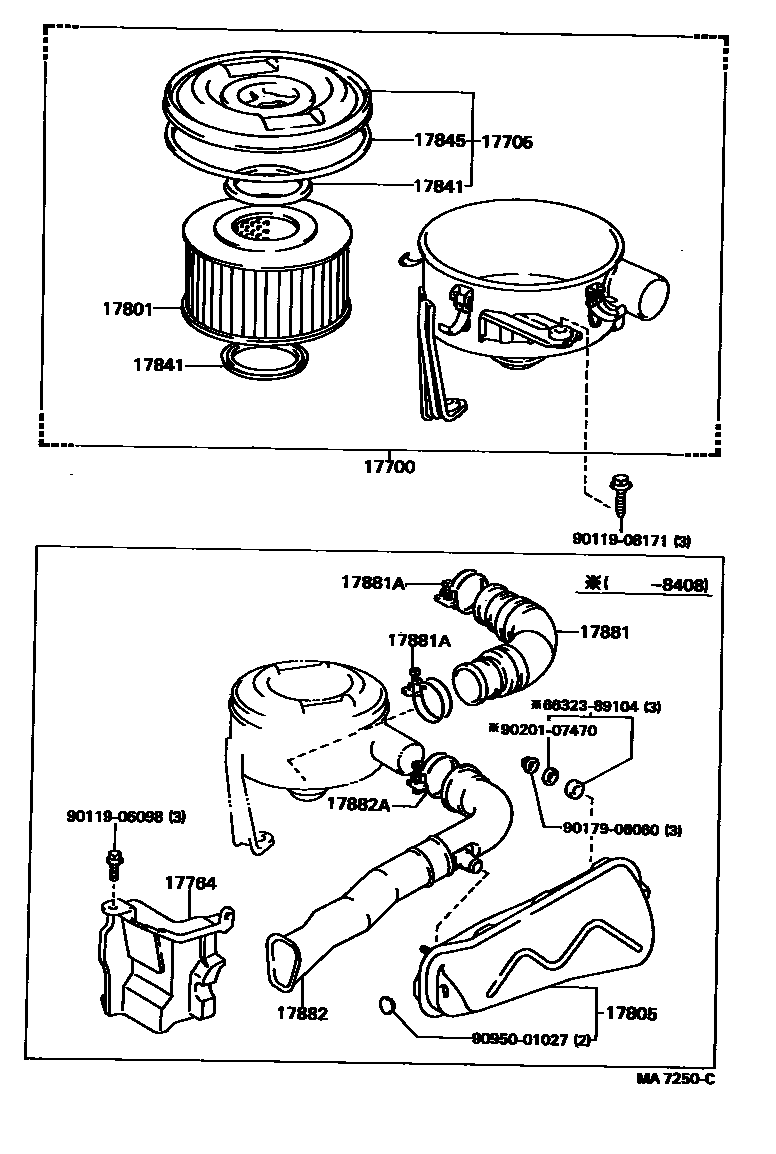

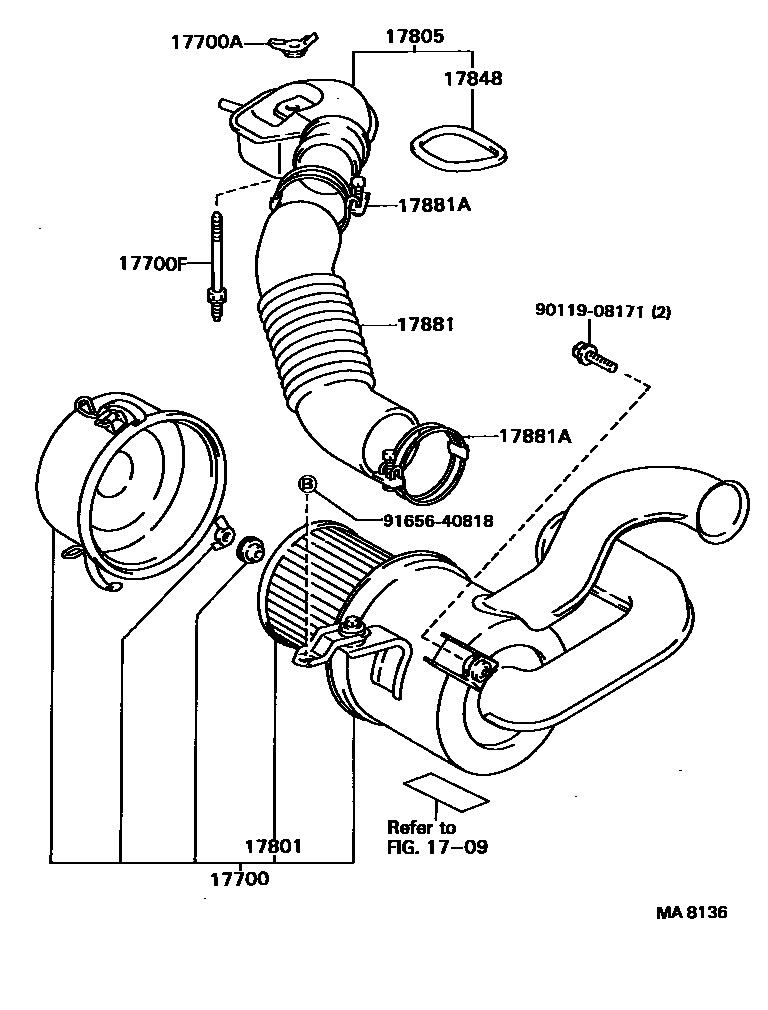

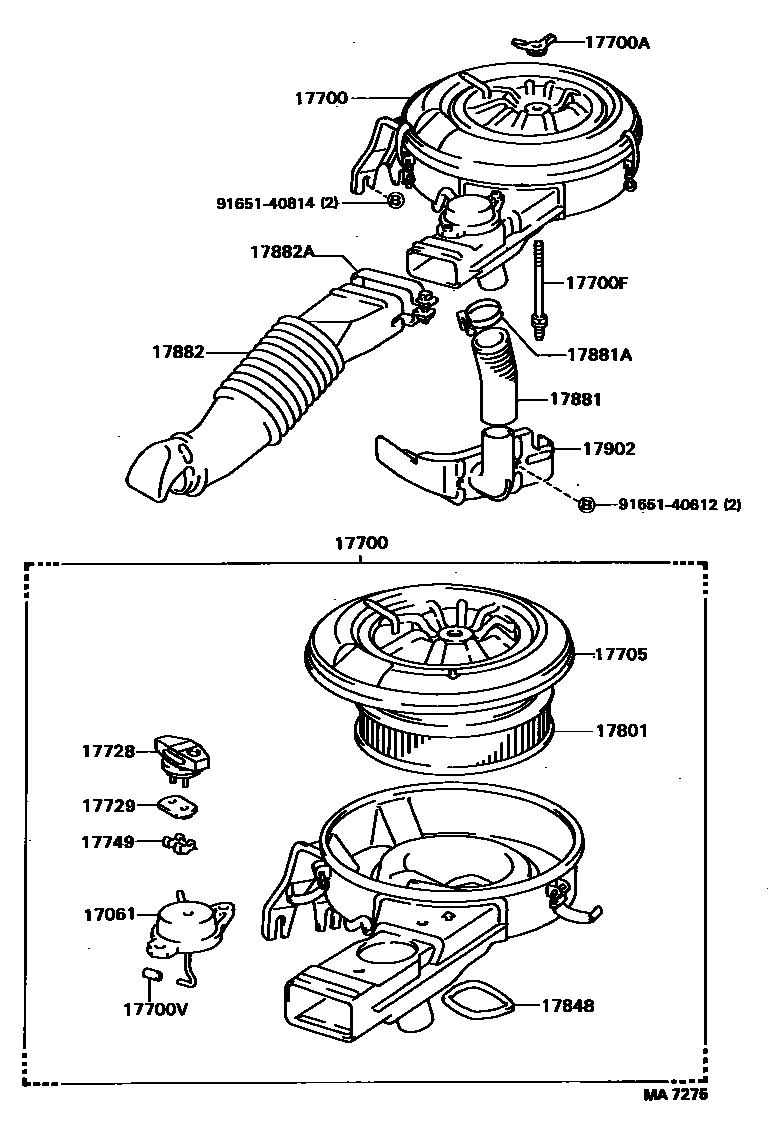

Toyota HILUX EPC diagram 1703, Air Cleaner, with 5 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-72010 |
| 17700 | air filter assembly | 17700-35240 · 17700-54180 · 17700-54300 · 17700-54330 · 17700-54331 · 17700-71040 · 17700-71041 · 17700-73060 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 · 90175-08008 |
| 17700F | Stud bolt (for securing air filter) | 90116-06024 · 90116-08161 |
| 17700V | Bushing (for air cleaner) | 90386-03001 |
| 17705 | Air filter cover sub-assembly | 17705-35140 · 17705-54032 · 17705-54120 · 17705-71020 |
| 17728 | thermostat valve | 17728-34010 |
| 17729 | thermostat valve gasket | 17729-34010 |
| 17749 | Thermostat valve bracket | 17749-34010 |
| 17764 | air filter duct | 53207-89104 · 53207-89105 |
| 17801 | Air filter element sub-assembly | 17801-31050 · 17801-34060 · 17801-54030 · 17801-54060 · 17801-70010 |
| 17805 | Intake connecting pipe sub-assembly | 17805-73040 · 17805-89104 · 17805-89105 |
| 17806 | No. 2 air filter pipe assembly | 17103-54030 |
| 17806D | Clamp (for air cleaner tube) | 90460-70001 · 96111-10710 |
| 17841 | filter liner | 17841-54010 |
| 17845 | air cleaner cover gasket | 17845-54010 |
| 17848 | Gasket from air cleaner to carburetor | 17848-35010 · 90430-72003 |
| 17861 | Intake connecting pipe | 17861-73040 |
| 17875 | Intake connecting pipe | 17875-73020 |
| 17881 | No. 1 air cleaner hose | 17349-54010 · 17881-16210 · 17881-34071 · 17881-54190 · 17881-70010 · 17881-73060 · 17881-74040 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-65004 · 96111-10460 · 96111-10630 · 96111-10690 · 96111-10710 · 96111-10730 · 96111-10800 |
| 17882 | No. 2 air cleaner hose | 17880-89101 · 17882-54150 · 17882-70010 · 17882-89109 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-01032 · 90460-01053 · 96111-10690 · 96111-10710 · 96111-10800 |
| 17883 | No. 3 air cleaner hose | 17881-54270 · 17882-89107 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 96111-10690 |
| 17884 | No. 4 air cleaner hose | 17880-89104 |
| 17884A | Clamp (for No. 4 air cleaner hose) | 96111-10730 |
| 17885 | air cleaner tube | 17885-54040 |
| 17902 | No. 1 hot air intake sub-assembly | 17895-71010 |
| 22275 | air flow meter gasket | 22275-41010 |
