Toyota HILUX Exhaust Pipe — Figure 1702

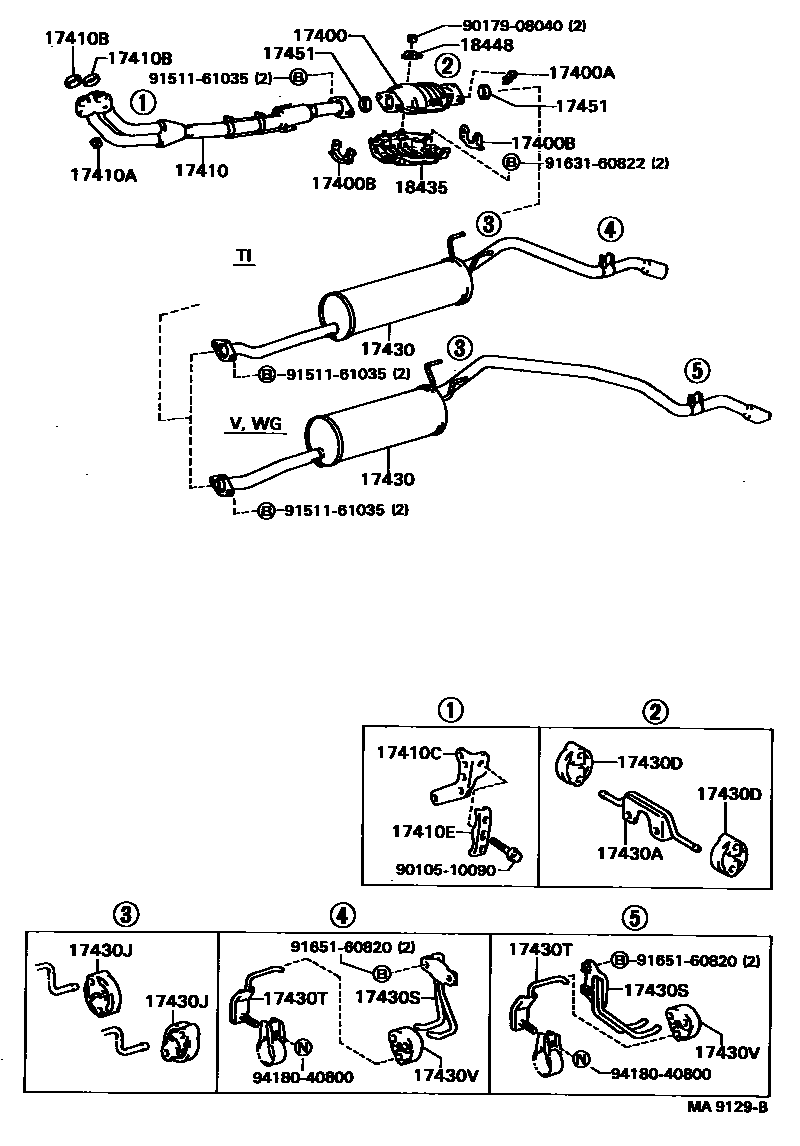

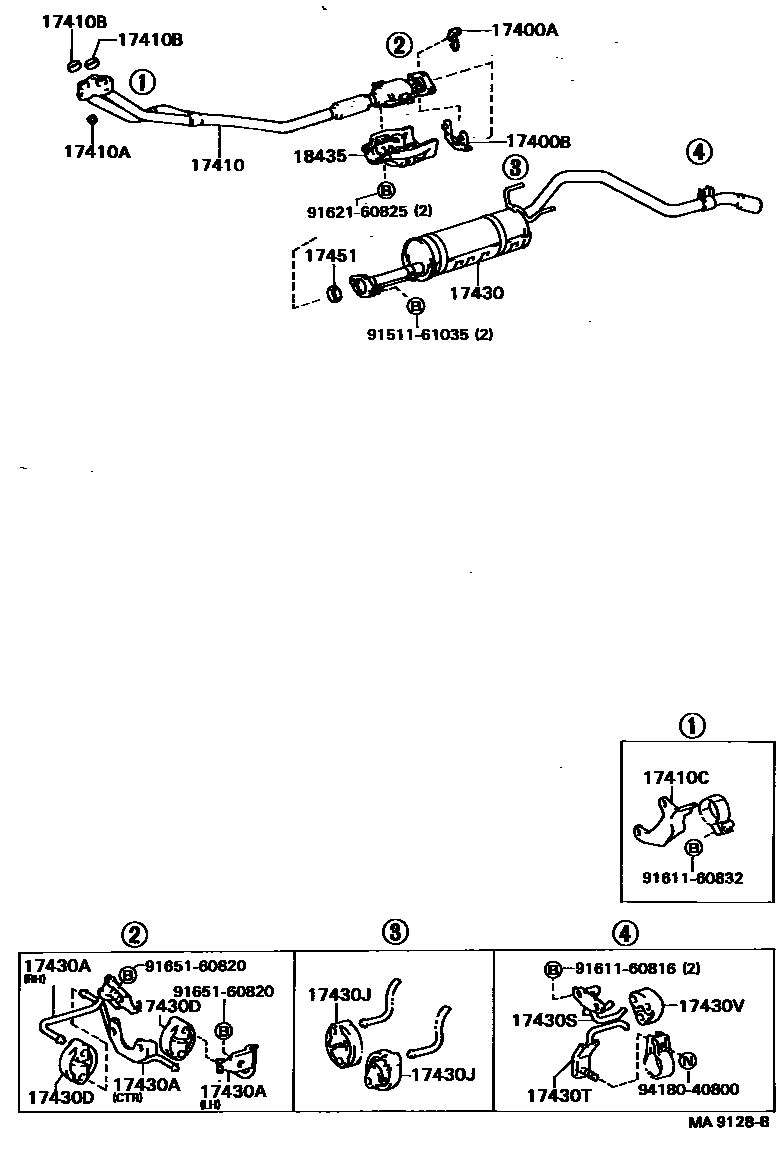

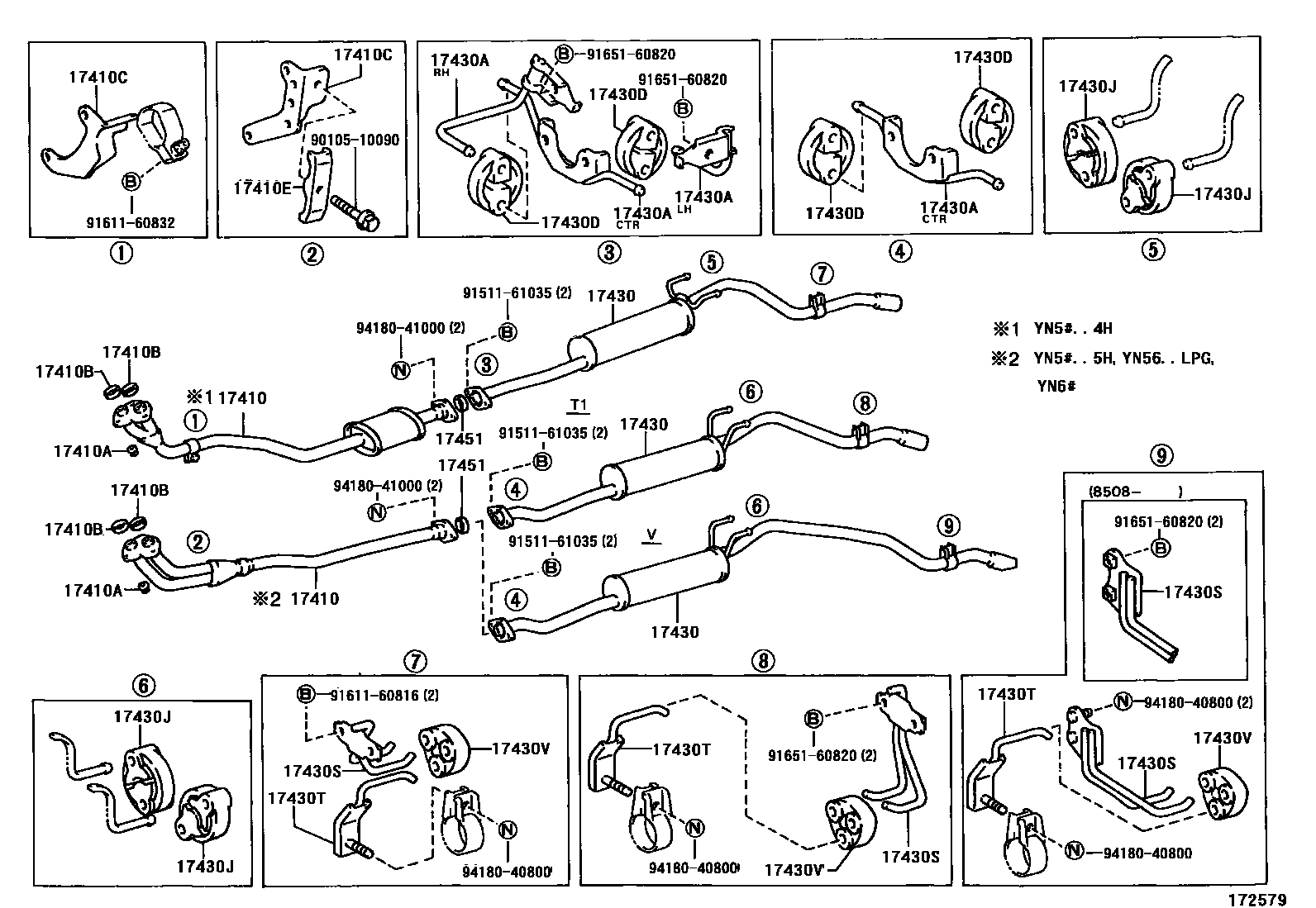

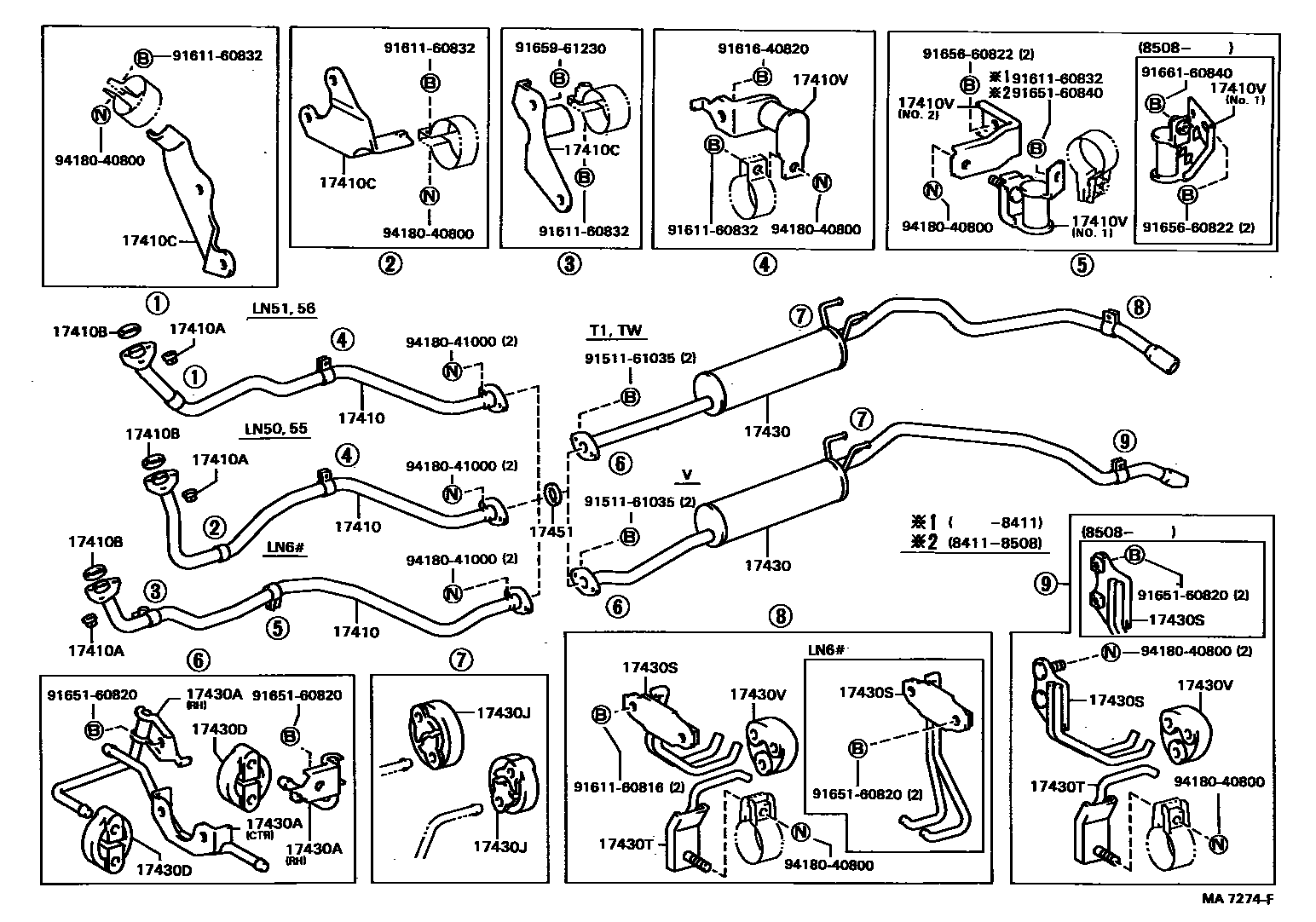

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-15060 · 18450-73030 |
| 17400A | Thermal sensor air inlet flange | 18491-18010 · 18491-28010 |
| 17400B | exhaust pipe fixings | 18495-35010 · 18495-38020 |
| 17410 | Front exhaust pipe assembly | 17410-54290 · 17410-54300 · 17410-54310 · 17410-54320 · 17410-54450 · 17410-54530 · 17410-54550 · 17410-54580 · 17410-71070 · 17410-71080 · 17410-72120 · 17410-73030 · 17410-73040 · 17410-73050 · 17410-73051 · 17410-73120 · 17410-73160 · 17410-73170 · 17410-73180 · 17410-73190 · 17410-73200 · 17410-73210 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10010 · 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06001 · 90917-06004 · 90917-06005 · 90917-06038 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-54130 · 17571-54170 · 17571-54180 · 17571-54220 · 17571-54260 · 17571-54300 · 17571-71030 · 17571-71050 · 17571-73040 |
| 17410E | No. 1 front exhaust pipe clamp (for front) | 90917-04030 |
| 17410V | Front exhaust pipe bracket (for rear) | 17562-35020 · 17562-54090 · 17562-54110 · 17572-54060 · 17572-54080 |
| 17430 | Exhaust tailpipe assembly | 17430-54350 · 17430-54351 · 17430-54580 · 17430-54740 · 17430-54780 · 17430-54830 · 17430-72050 · 17430-72060 · 17430-72161 · 17430-72171 · 17430-73050 · 17430-73070 · 17430-73120 · 17430-73130 · 17430-73141 · 17430-73220 |
| 17430A | Exhaust tailpipe bracket (for front) | 17503-35060 · 17503-35080 · 17503-35110 · 17503-35120 · 17503-35130 · 17503-54090 · 17503-71010 · 17587-35010 · 17587-35020 · 17587-71020 · 17588-35010 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 17563-35020 |
| 17430J | Exhaust tailpipe bolt or ring (for center) | 17565-35010 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17575-54020 · 17575-71030 · 17575-73010 · 17575-73020 |
| 17430T | Exhaust tailpipe cushion (for rear) | 17585-71010 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 17566-35010 · 17566-35030 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06008 · 90917-06012 · 90917-06023 · 90917-06025 · 90917-06041 · 90917-06045 · 90917-06047 |
| 18435 | Three-way catalytic converter protection device | 18407-31020 · 18407-35010 · 18407-35020 |
| 18448 | Three-way catalytic converter protection device central bracket | 18439-35010 · 18448-35020 |
