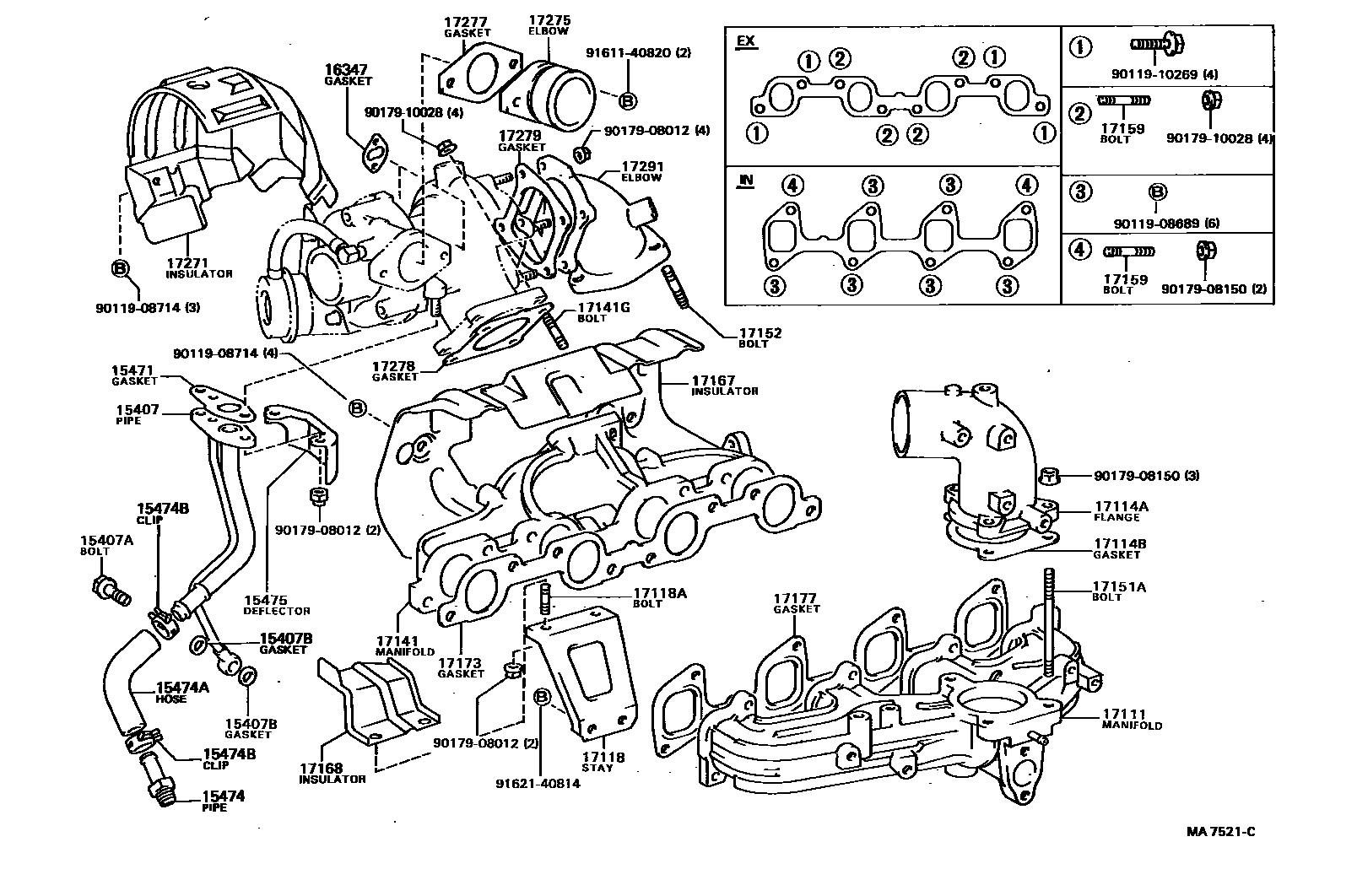

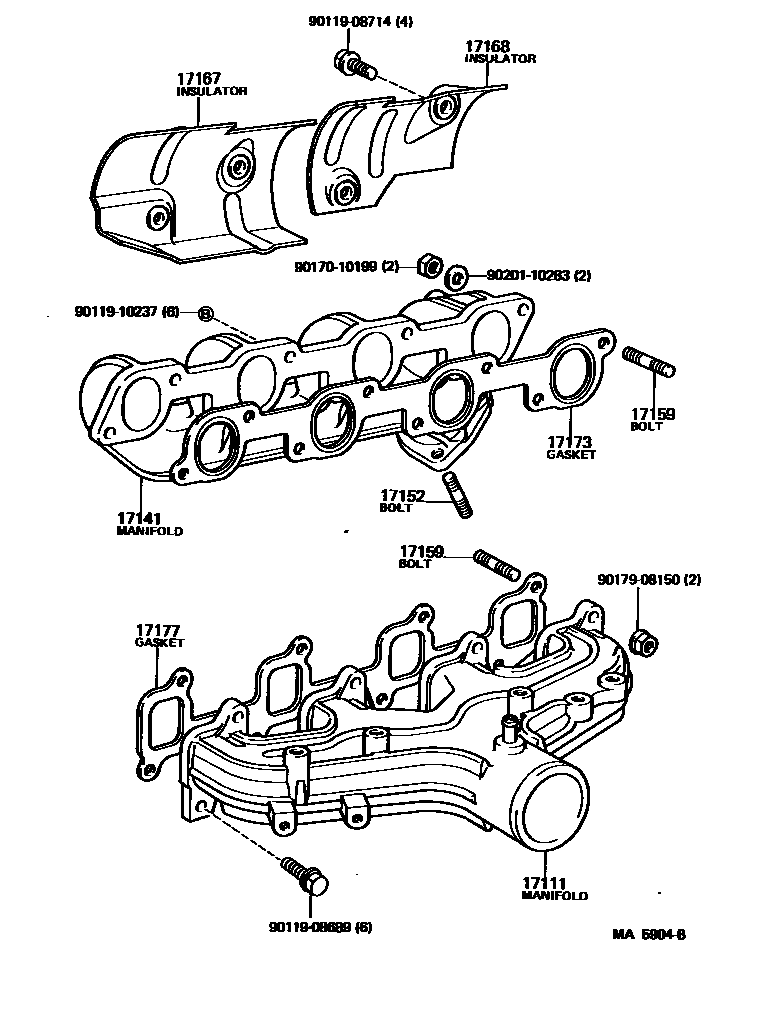

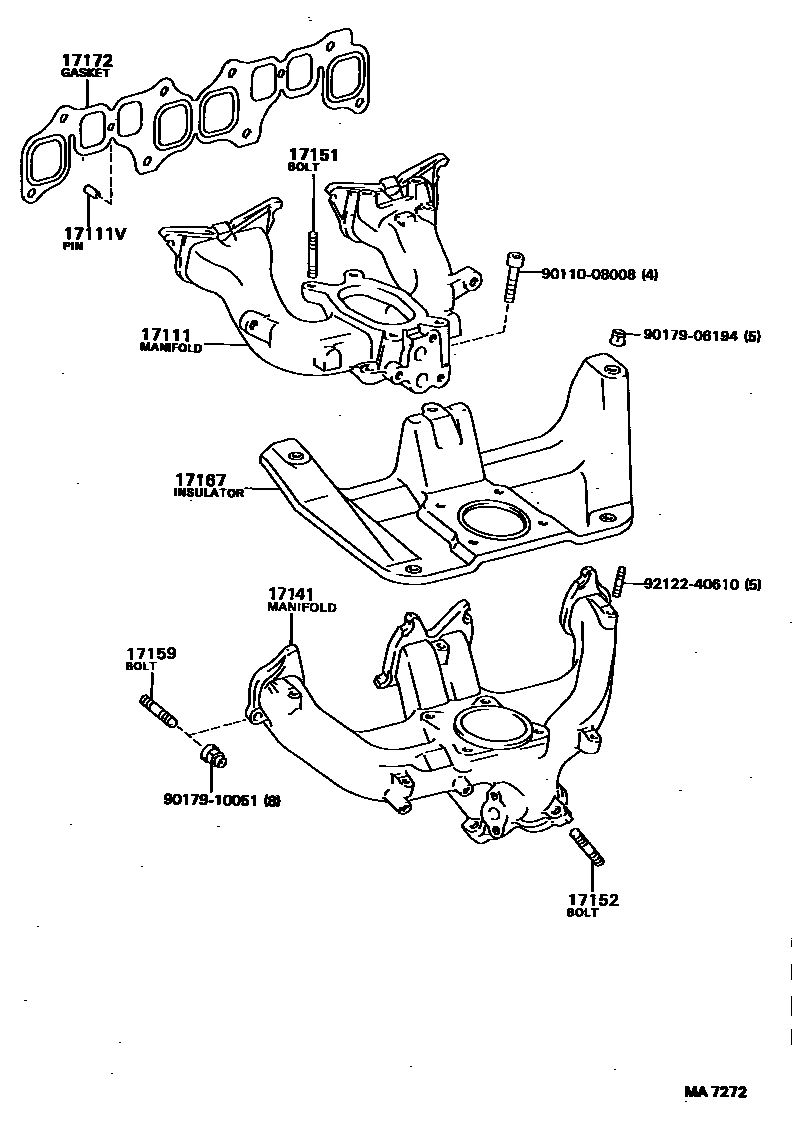

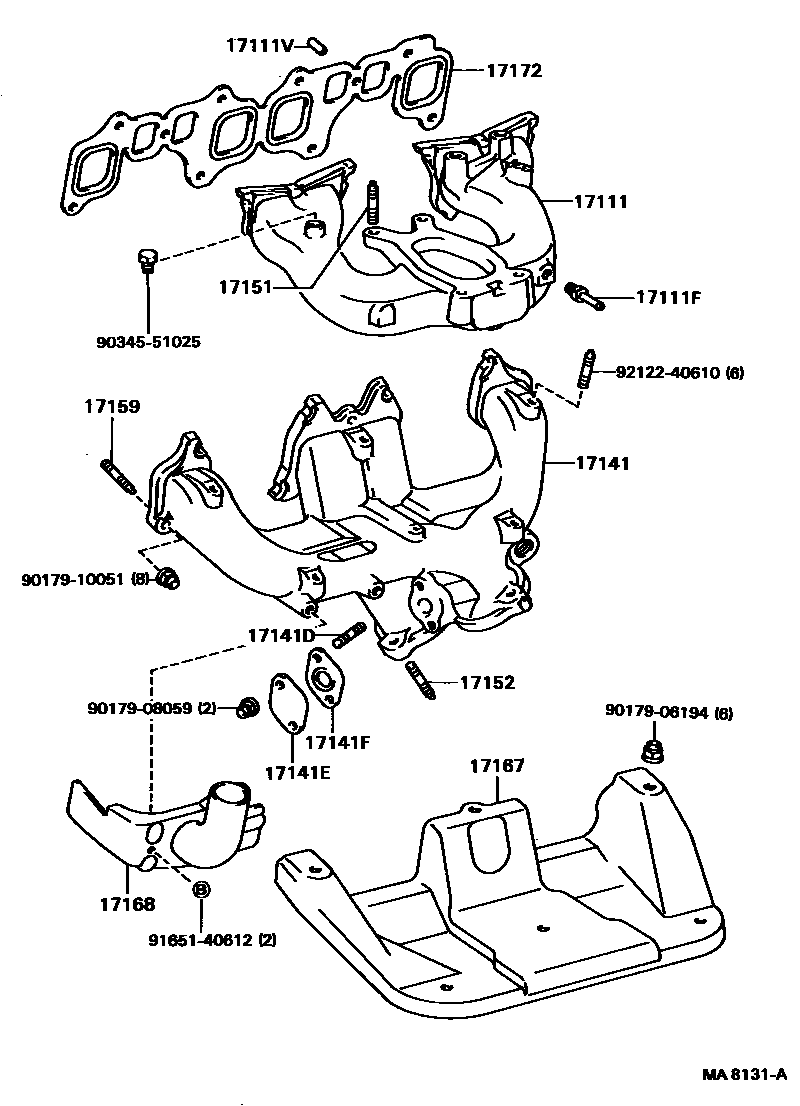

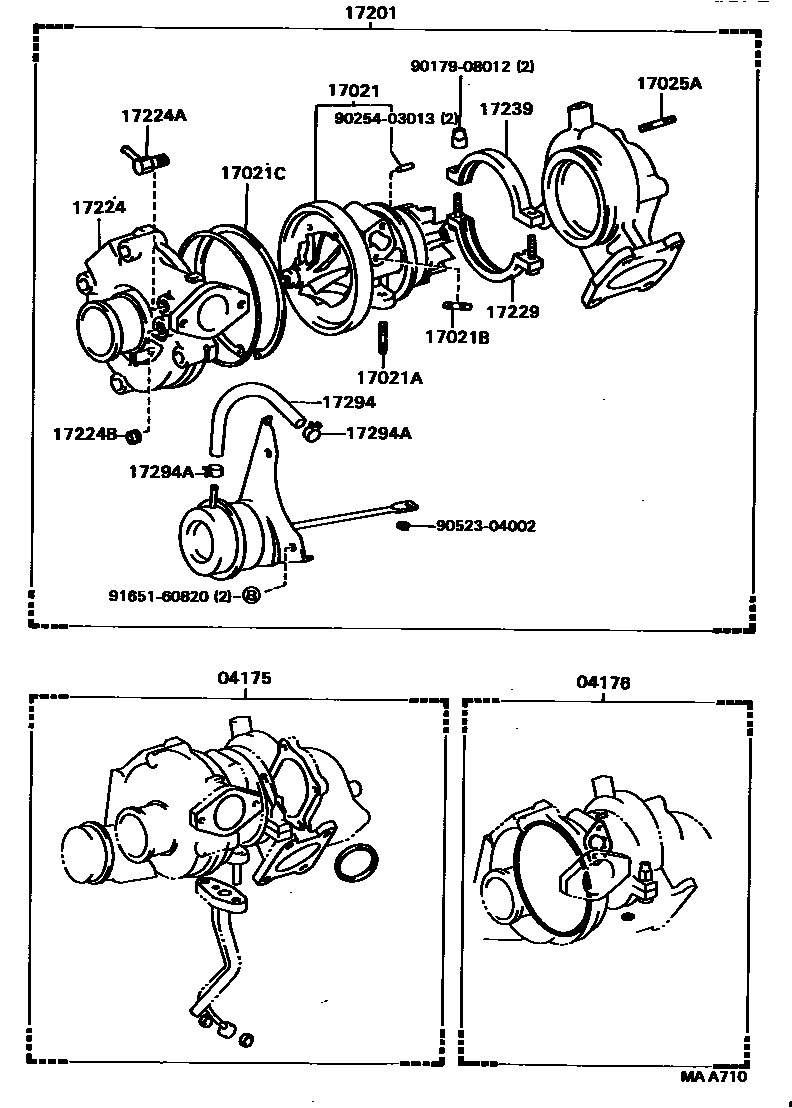

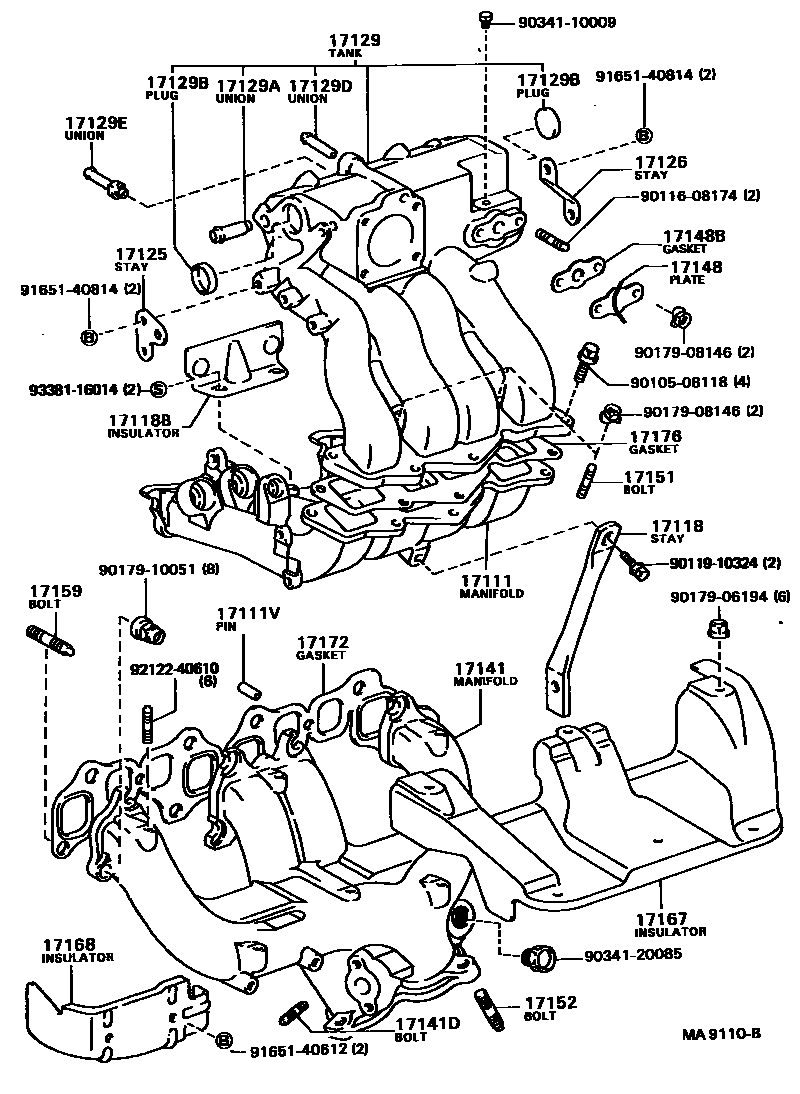

Toyota HILUX Manifold — Figure 1701
Toyota HILUX EPC diagram 1701, Manifold, with 6 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-54010 |
| 04176 | Turbocharger seal assembly | 04176-54010 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-54011 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-10006 · 90401-10035 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-10035 |
| 15471 | Turbine oil inlet pipe gasket | 15471-54010 |
| 15474 | Turbine oil outlet pipe | 15476-54010 |
| 15474A | Turbine oil outlet hose | 90923-02080 |
| 15474B | Clamp or clip (for turbine oil outlet hose) | 90467-26002 |
| 15475 | Oil baffle | 15475-54010 |
| 16347 | water bypass liner | 16347-28010 |
| 17021 | Bearing shell sub-assembly | 17021-28010 |
| 17021A | Stud bolts (for bearing housing) | 90116-08158 |
| 17021B | Stud bolt | 90116-06048 |
| 17021C | Hole snap ring (for bearing housing) | 90521-99007 |
| 17025A | Stud bolts (for turbine housing) | 90116-08200 |
| 17111 | Intake Manifold | 17101-54030 · 17101-54050 · 17111-71010 · 17111-72010 · 17111-72011 · 17111-73011 |
| 17111F | Fitting (for vacuum hose to carburetor) | 90404-51026 |
| 17111V | Direct pin (for fixing the intake manifold) | 90250-08120 |
| 17114A | Intake flange | 17114-54020 |
| 17114B | Intake flange gasket | 26171-54010 |
| 17118 | Manifold stays | 17118-54011 · 17118-73010 |
| 17118A | Studs (for manifold stays) | 90116-08056 |
| 17118B | Intake manifold heat shield | 17853-73011 · 17853-73012 |
| 17125 | No. 1 pressure tank stay | 17125-73010 |
| 17126 | No. 2 pressure tank stay | 17126-73010 |
| 17129 | Intake pressure tank | 17109-73011 · 17109-73020 |
| 17129A | Connector No. 1 | 90405-14003 |
| 17129B | Screw plug | 96411-43500 |
| 17129D | Connector No. 2 | 90405-10010 |
| 17129E | Connector No. 3 | 90404-51237 |
| 17141 | exhaust manifold | 17141-54022 · 17141-54040 · 17141-71020 · 17141-72010 |
| 17141D | Studs (for oxygen sensor) | 90116-08128 |
| 17141E | Exhaust manifold plate | 17148-41010 |
| 17141F | Gasket (for exhaust manifold plate) | 89466-30010 |
| 17141G | Stud bolts (for turbocharger) | 90116-10094 |
| 17148 | Exhaust manifold plate (for EGR intake) | 25617-73030 |
| 17148B | EGR air intake gasket | 25627-31020 |
| 17151 | Studs (for manifold to carburetor) | 90116-08160 · 92122-40835 · 92132-40825 |
| 17151A | Studs (for manifold to venturi) | 92112-40820 · 92112-40825 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 · 90116-10088 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08053 · 90116-08220 · 90116-10061 · 90116-10063 · 90116-10091 · 90116-10140 · 90116-10141 |
| 17167 | Exhaust manifold No. 1 heat shield | 17107-54011 · 17167-54011 · 17167-54040 · 17167-54041 · 17167-71020 · 17167-72010 · 17167-72011 · 17167-73010 · 17167-73011 |
| 17168 | Exhaust manifold No.2 insulation pad | 12521-72010 · 17166-54010 · 17168-54011 |
| 17172 | Gasket (manifold to cylinder head) | 17172-71010 · 17172-71011 · 17172-73010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-54011 · 17173-54020 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-73011 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-54011 · 17177-54012 |
| 17201 | Turbocharger sub-assembly | 17201-54030 |
| 17224 | compressor casing | 17224-54010 |
| 17224A | Connector (for compressor housing) | 90404-51040 |
| 17224B | Tapered thread plug | 90344-51014 |
| 17229 | V-Belt | 17229-28010 |
| 17239 | No. 2 V-shaped clamp | 17239-28010 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-54020 |
| 17275 | Compressor oil outlet elbow | 17275-54010 |
| 17277 | Compressor oil outlet gasket | 17277-54010 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-54010 |
| 17279 | Turbine outlet elbow gasket | 17279-64010 |
| 17291 | Turbine oil outlet elbow | 17291-54020 |
| 17294 | Actuator hose | 90445-12111 |
| 17294A | Clamp (for actuator hose) | 96132-30600 |
