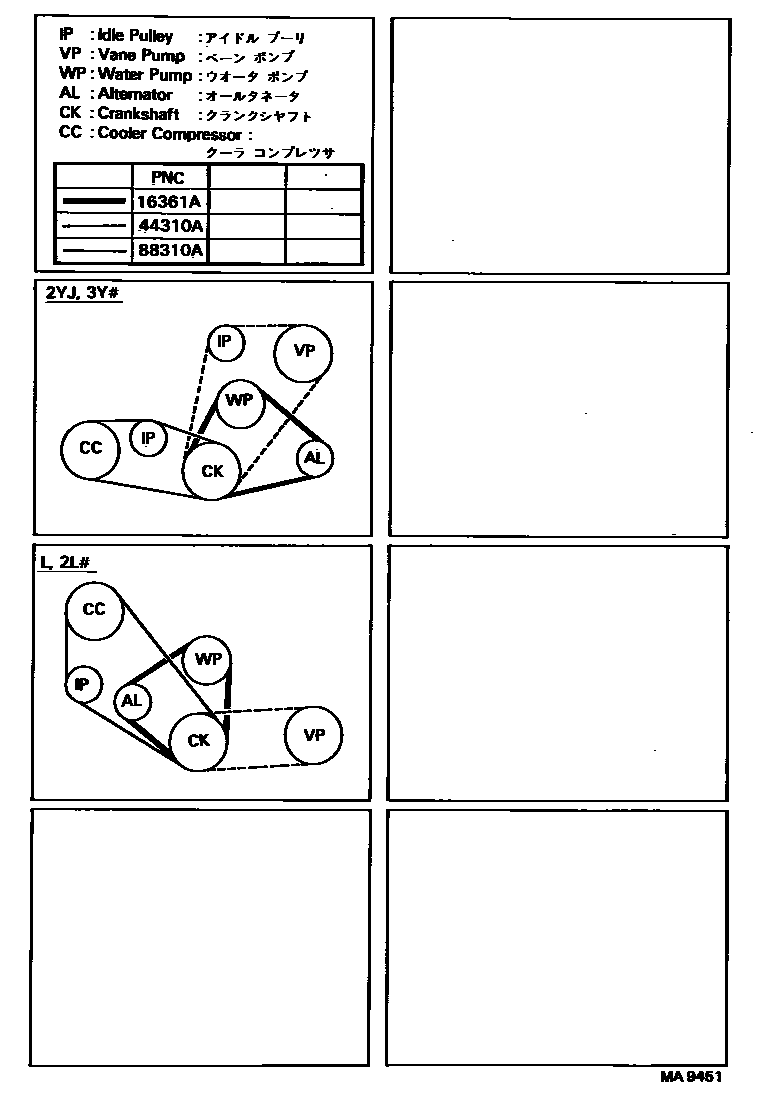

Toyota HILUX V-Belt — Figure 1605
Toyota HILUX EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02132 · 90916-02133 · 99364-50830 · 99365-50820 |
| 44310A | V-belt (for vane pump) | 90916-02080 · 99332-00850 · 99332-01055 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 99322-00875 · 99322-00880 · 99332-11250 · 99332-11260 |
