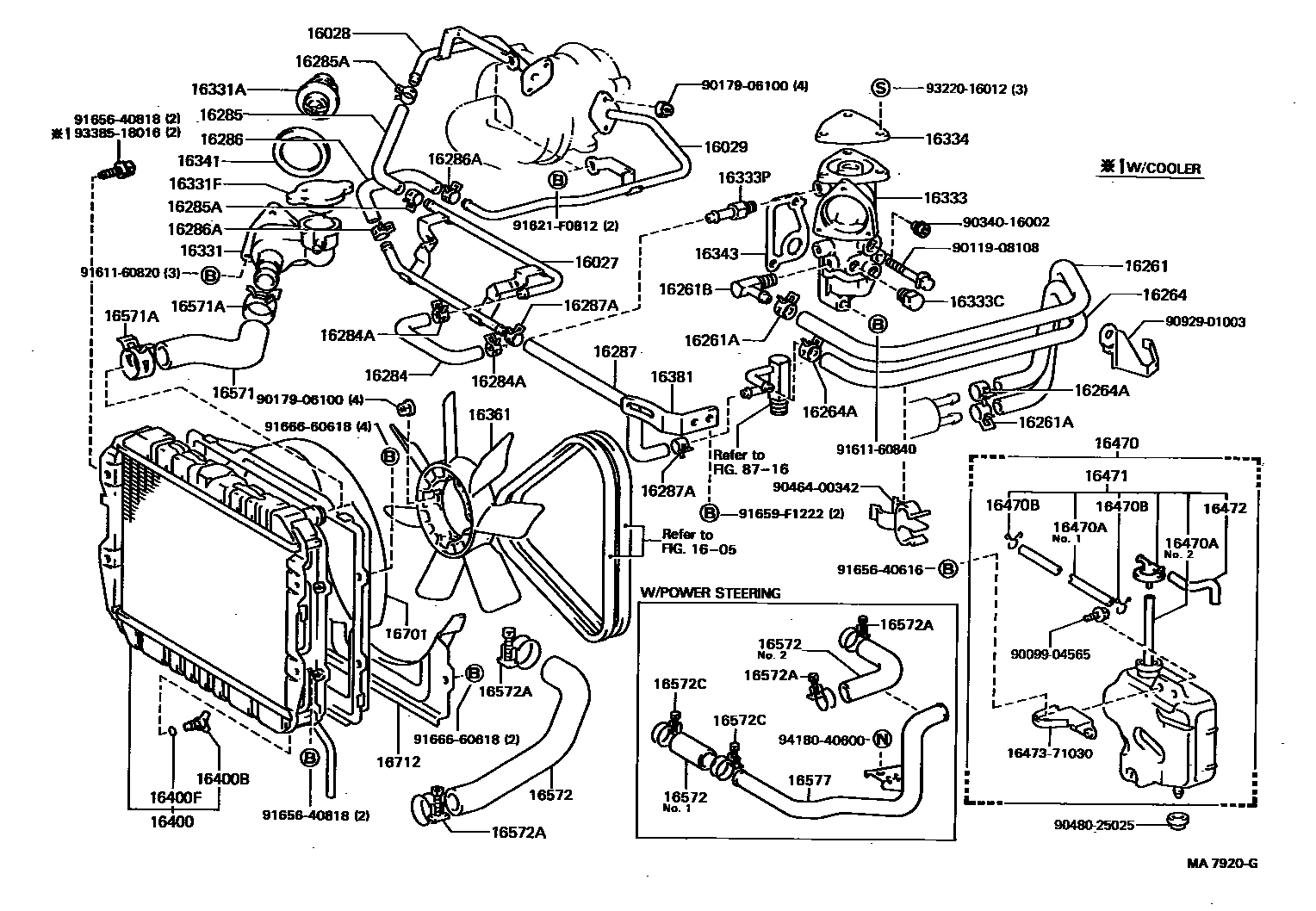

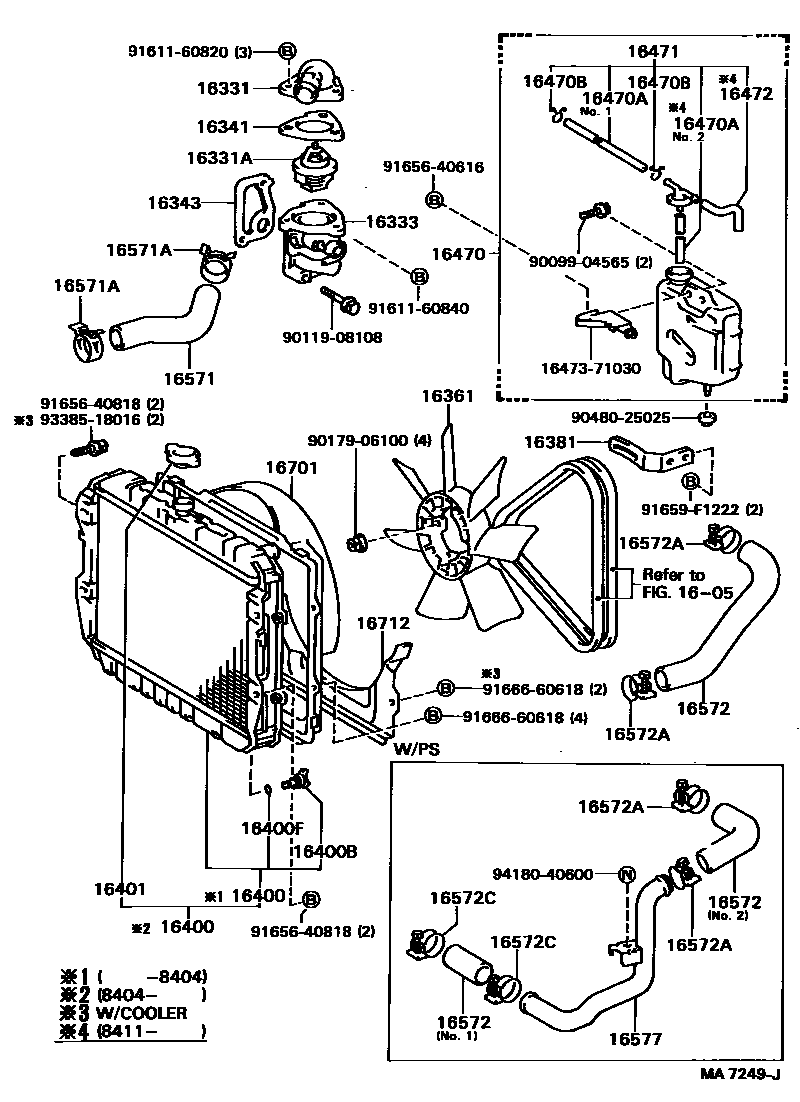

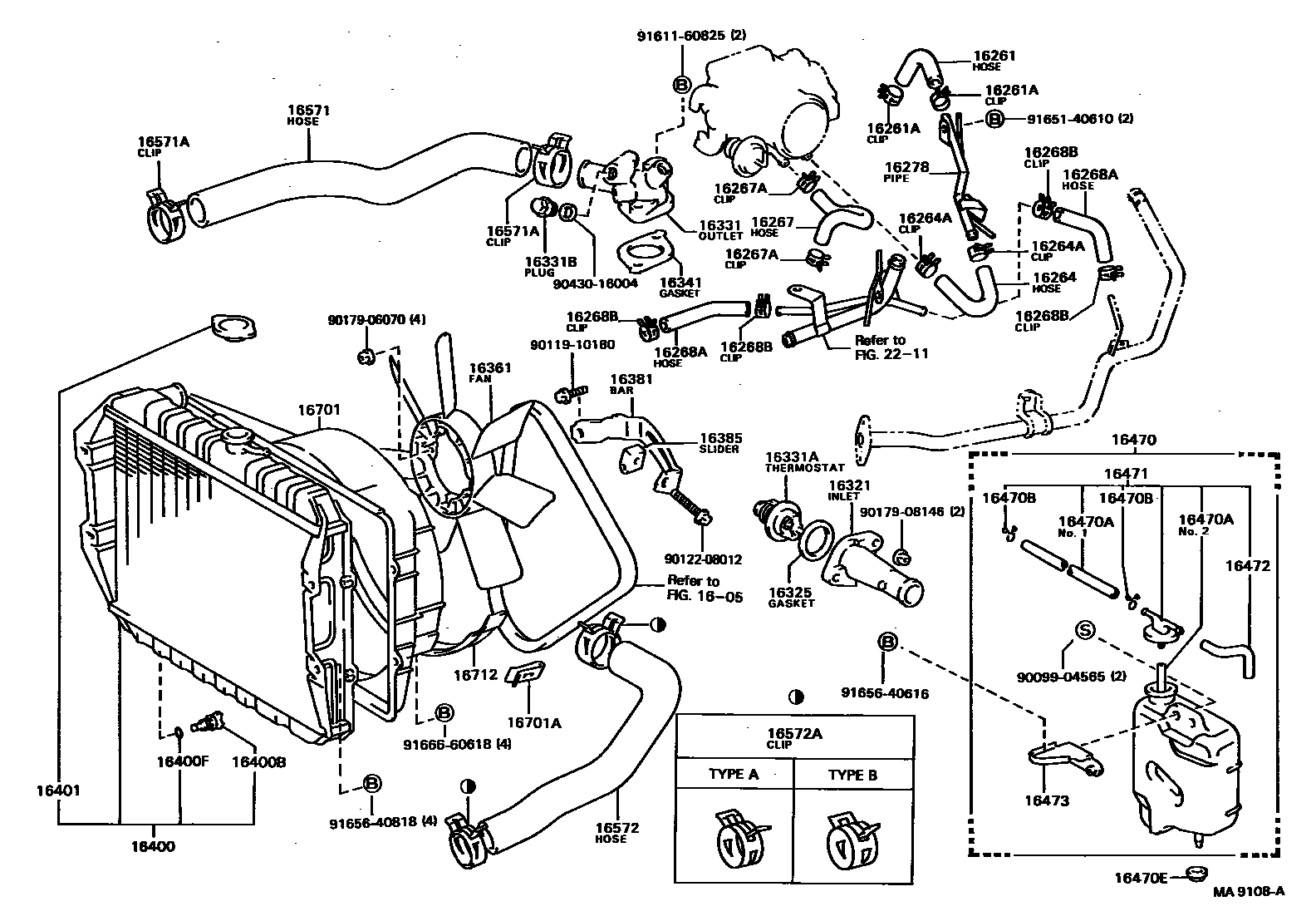

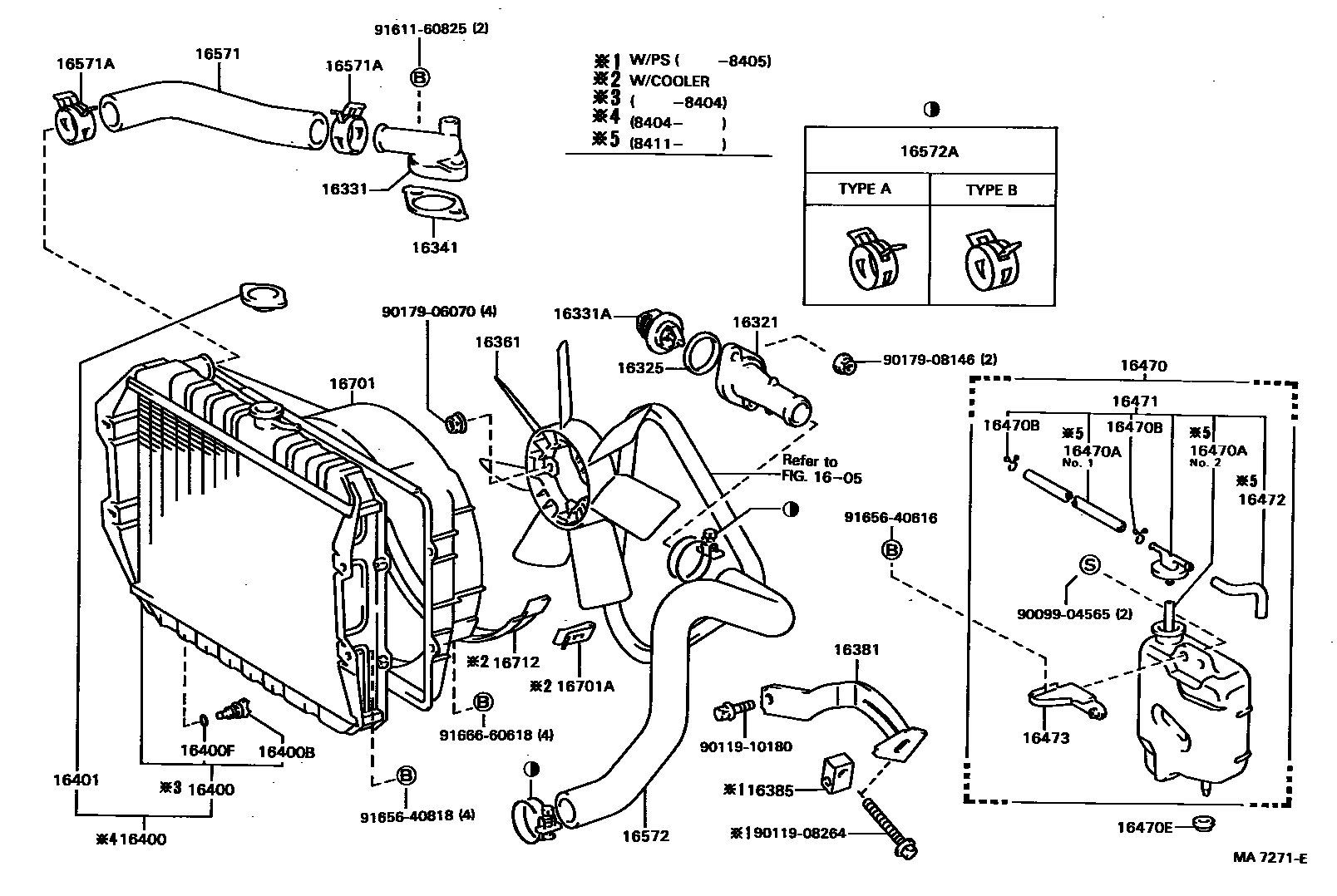

Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603
Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbine water pipe sub-assembly | 16027-54010 · 16027-54011 |
| 16028 | No. 2 turbine water pipe sub-assembly | 16028-54010 · 16028-54011 |
| 16029 | No. 3 turbine water pipe sub-assembly | 16029-54010 · 16029-54011 |
| 16261 | HOSE, WATER BY-PASS | 16261-54030 · 99556-10110 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13001 · 90467-15004 |
| 16261B | Connector (for water bypass hose) | 90404-52015 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-54010 · 16264-73021 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13001 · 90467-15004 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-73010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-13001 |
| 16268A | Hoses (for water bypass pipes) | 99556-10110 |
| 16268B | Hose clamp or clip (for water bypass pipe) | 90467-13001 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-73011 |
| 16284 | Turbine Water Hose No. 1 | 16284-54010 |
| 16284A | Clamp (for No. 1 turbine water hose) | 90467-15004 |
| 16285 | Turbine Water Hose No. 2 | 16285-54010 · 16285-54011 |
| 16285A | Clamp (for No. 2 turbine water hose) | 90467-15004 |
| 16286 | No. 3 turbine water hose | 16286-54010 · 16286-54011 |
| 16286A | Clamp (for No. 3 turbine water hose) | 90467-15004 |
| 16287 | No. 4 turbine water hose | 16287-54010 |
| 16287A | Clamp (for No. 4 turbine water hose) | 90467-15004 |
| 16321 | water inlet | 16321-71010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 |
| 16331 | Water outlet | 16331-54030 · 16331-54080 · 16331-54081 · 16331-71010 · 16331-73010 |
| 16331A | thermostat | 90916-03046 · 90916-03062 · 90916-03069 · 90916-03072 |
| 16331B | Screw plug (for water outlet) | 90341-16008 |
| 16331F | Cover assembly (for water outlet) | 16401-63010 |
| 16333 | Water outlet shell | 16333-54050 · 16333-54060 · 16333-54061 |
| 16333C | Headed tapered thread plug | 90345-53007 · 90345-53030 |
| 16333P | Connector (for outlet housing) | 90404-52004 |
| 16334 | Water outlet shell cover | 16334-54010 |
| 16341 | GASKET, WATER OUTLET | 16341-35010 · 16341-54011 · 16341-54030 · 16341-71010 |
| 16343 | Outlet shell gasket | 16343-54011 · 16343-54020 · 16343-54021 |
| 16361 | Fan | 16361-38010 · 16361-54010 · 16361-54020 |
| 16381 | Fan belt adjustment lever | 16381-54011 · 16381-71010 · 16381-73011 |
| 16385 | Fan belt adjustment slider | 16385-71010 |
| 16400 | Radiator assembly | 16400-54240 · 16400-54250 · 16400-54251 · 16400-54260 · 16400-54270 · 16400-54340 · 16400-54380 · 16400-54390 · 16400-54391 · 16400-54430 · 16400-54440 · 16400-54530 · 16400-54540 · 16400-71070 · 16400-71071 · 16400-71080 · 16400-71081 · 16400-73200 · 16400-73250 · 16410-54240 · 16410-54250 · 16410-54260 · 16410-54270 · 16410-71040 · 16410-71050 |
| 16400B | Radiator drain switch screw plug | 90910-09054 |
| 16400F | Seal (for radiator drain switch) | 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-36011 · 16401-63010 |
| 16470 | Radiator reservoir assembly | 16470-54060 · 16470-54110 · 16470-54111 · 16470-71030 |
| 16470A | Hoses or tubes (for radiator reservoir) | 90445-12049 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470E | Radiator reservoir hose gasket | 90480-25025 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-54070 · 16405-54140 · 16405-71010 |
| 16472 | Breather hose | 85338-71030 |
| 16473 | Bracket (for radiator reservoir) | 16473-71030 |
| 16571 | Radiator water inlet hose | 16571-54130 · 16571-54210 · 16571-71030 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-37001 · 90467-37003 |
| 16572 | Radiator outlet hose | 16572-54100 · 16572-54120 · 16572-54130 · 16572-71030 · 16572-71031 · 16573-54060 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-37001 · 90467-37002 · 90467-37003 · 90467-38001 · 96111-10460 · 96111-10500 |
| 16572C | Hose clamp or clip (for radiator outlet No. 2) | 90467-38001 · 96111-10460 |
| 16577 | Radiator pipe No. 7 | 16577-54080 |
| 16701 | Fan cover sub-assembly | 16711-54110 · 16711-54120 · 16711-71030 |
| 16701A | Clip (for fan cover) | 90468-06013 |
| 16712 | No. 2 fan cover | 16712-54050 · 16712-54080 · 16712-54090 |
