Toyota HILUX Water Pump — Figure 1601

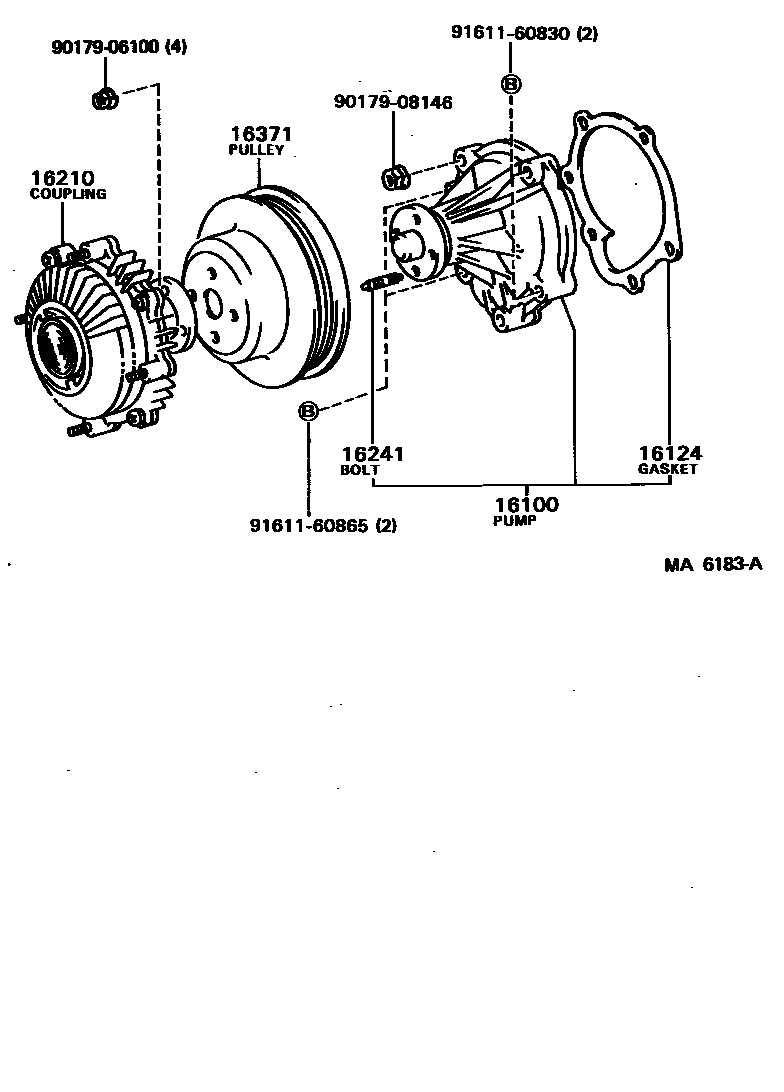

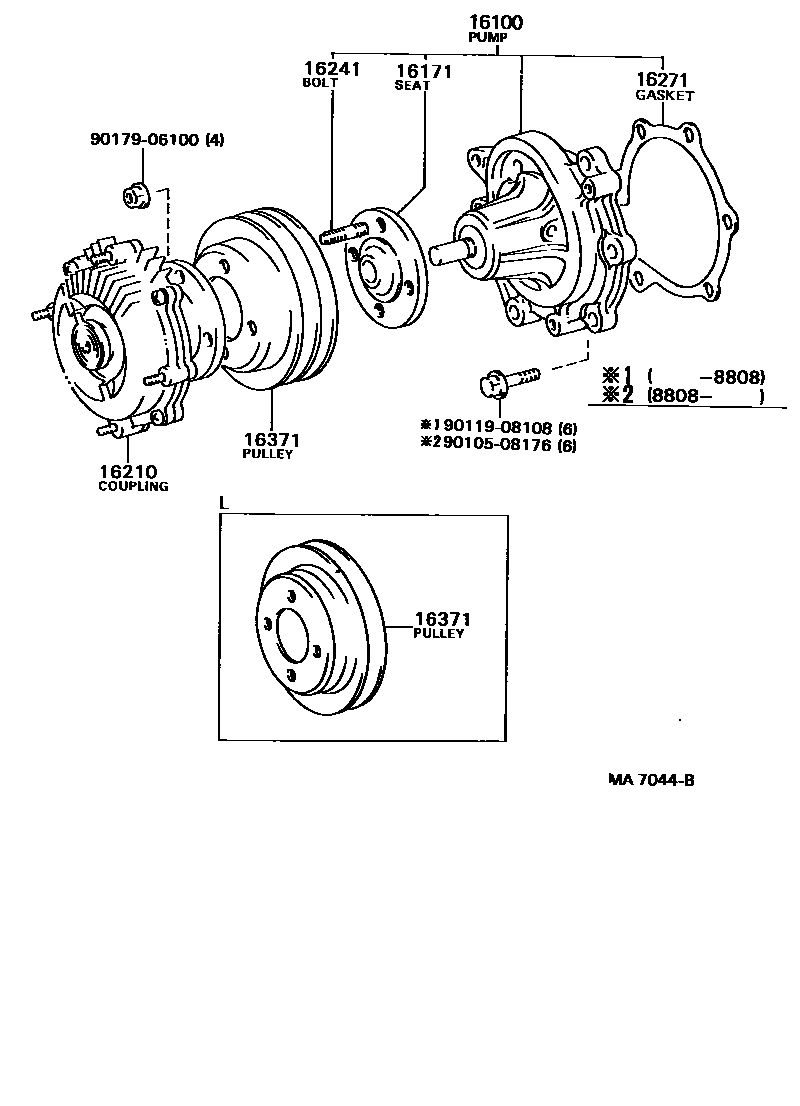

Toyota HILUX EPC diagram 1601, Water Pump, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-59127 · 16100-59137 · 16100-79035 · 16100-79036 |
| 16124 | water pump cover gasket | 16124-71010 |
| 16171 | water pump pulley seat | 16171-54011 |
| 16210 | Hydraulic coupler assembly | 16210-31010 · 16210-54070 · 16210-73010 |
| 16241 | Stud bolts (for water pump coupling) | 16192-70010 · 16193-13020 |
| 16271 | water pump gasket | 16271-54012 |
| 16371 | fan pulley | 16371-54010 · 16371-54020 · 16371-71010 · 16371-73011 |
