Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 3 images and 6 PNC and OE references.

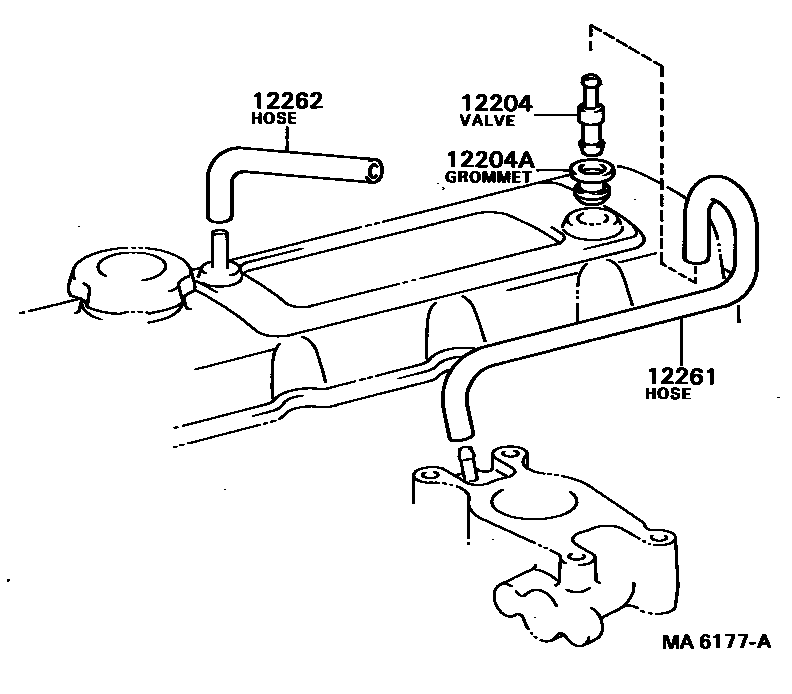

Toyota HILUX Ventilation Hose EPC diagram — MA6177A
Ventilation Hose — MA6177A (198311 – 999999)

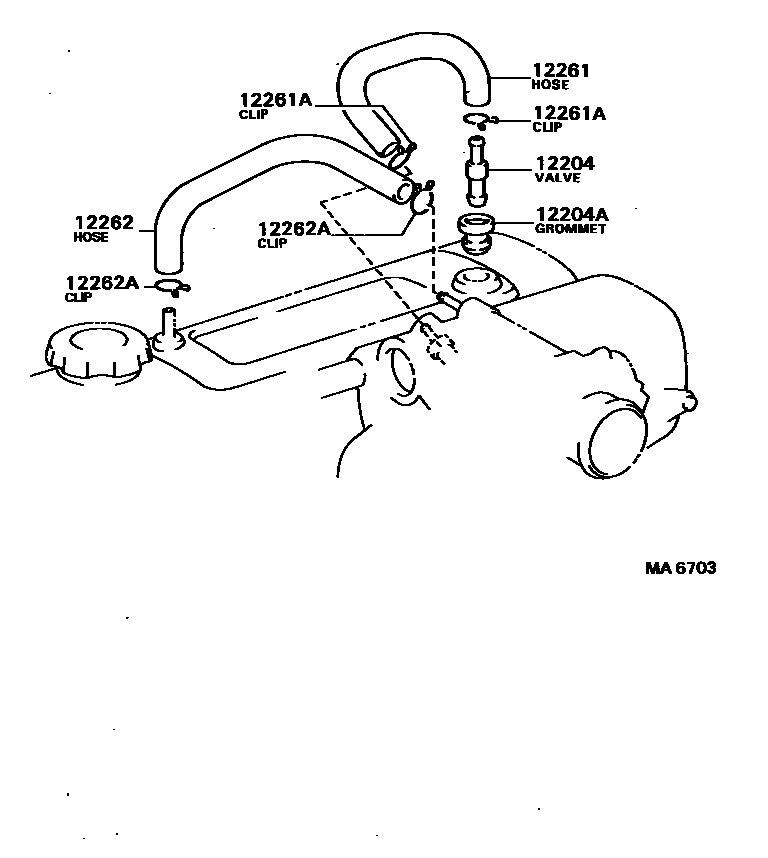

Toyota HILUX Ventilation Hose EPC diagram — MA6703
Ventilation Hose — MA6703 (198608 – 999999)

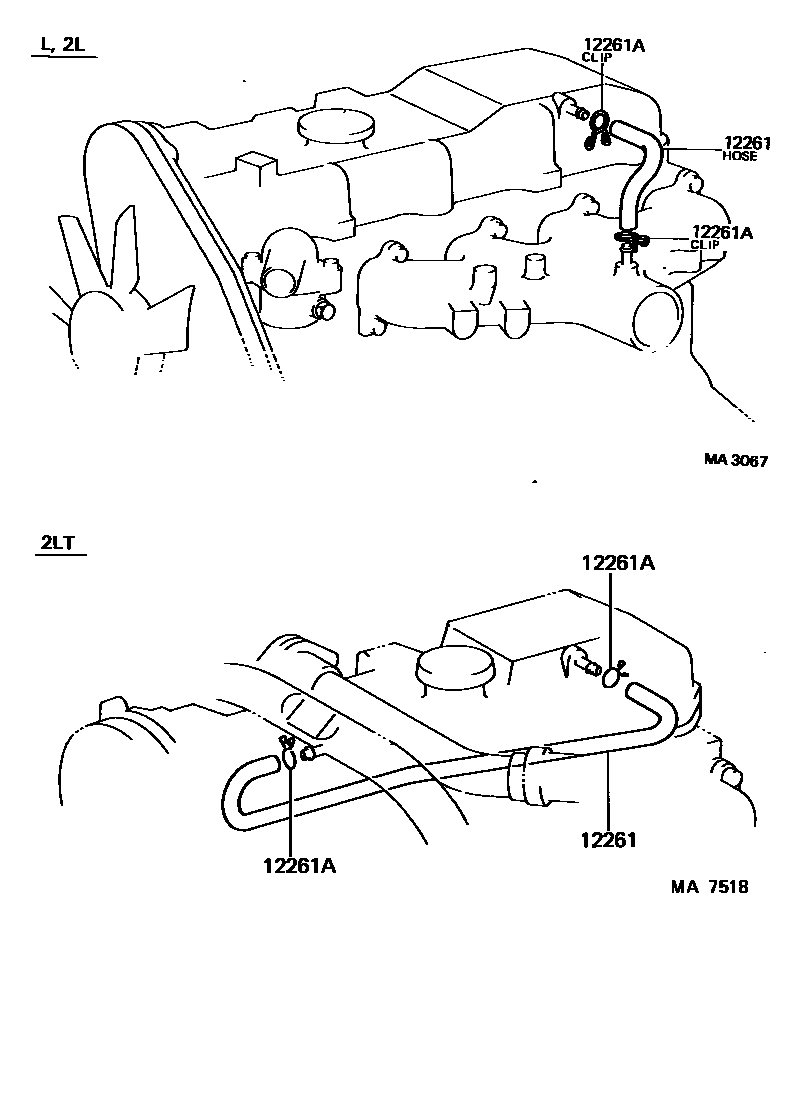

Toyota HILUX Ventilation Hose EPC diagram — MA7518
Ventilation Hose — MA7518 (198311 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-15022 · 12204-71010
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose12261-54010 · 12261-54040 · 12261-71021 · 12261-72010 · 12261-73021
12261AClip or clip (for vent hose)90467-15006 · 90467-15120
12262Ventilation hose No. 212262-71010 · 12262-71020 · 12262-73010
12262AClamp (for vent hose No. 2)90467-15006
