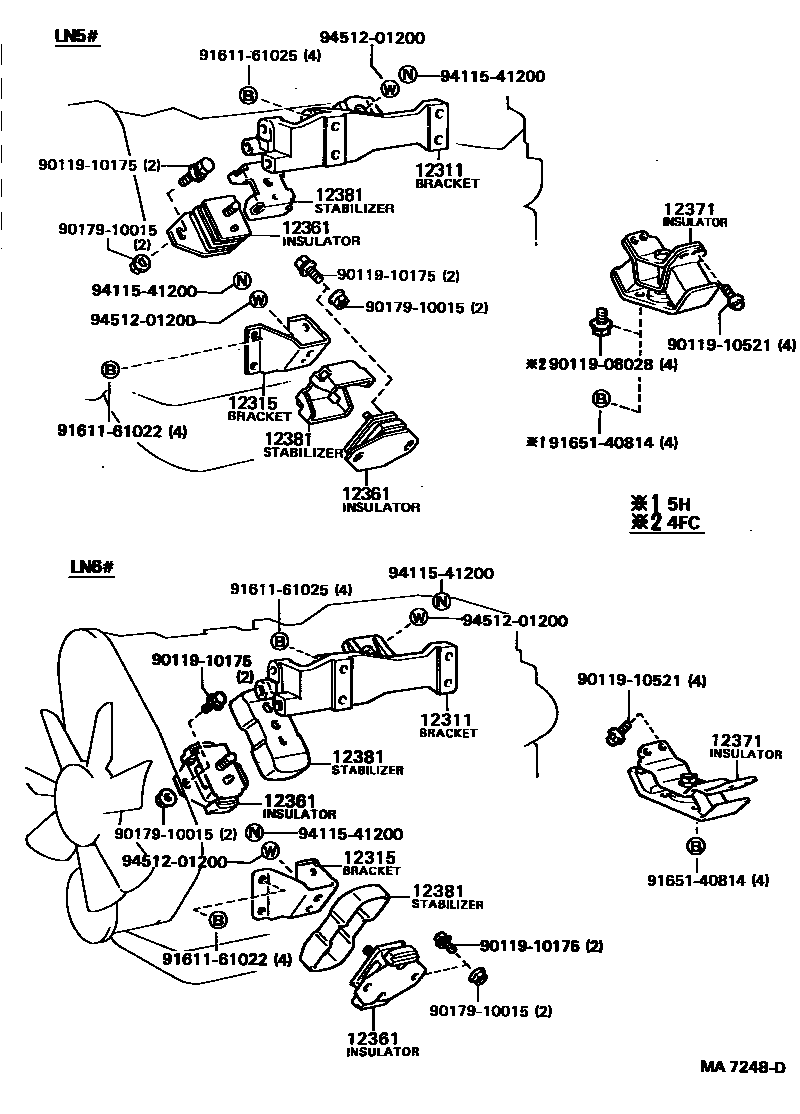

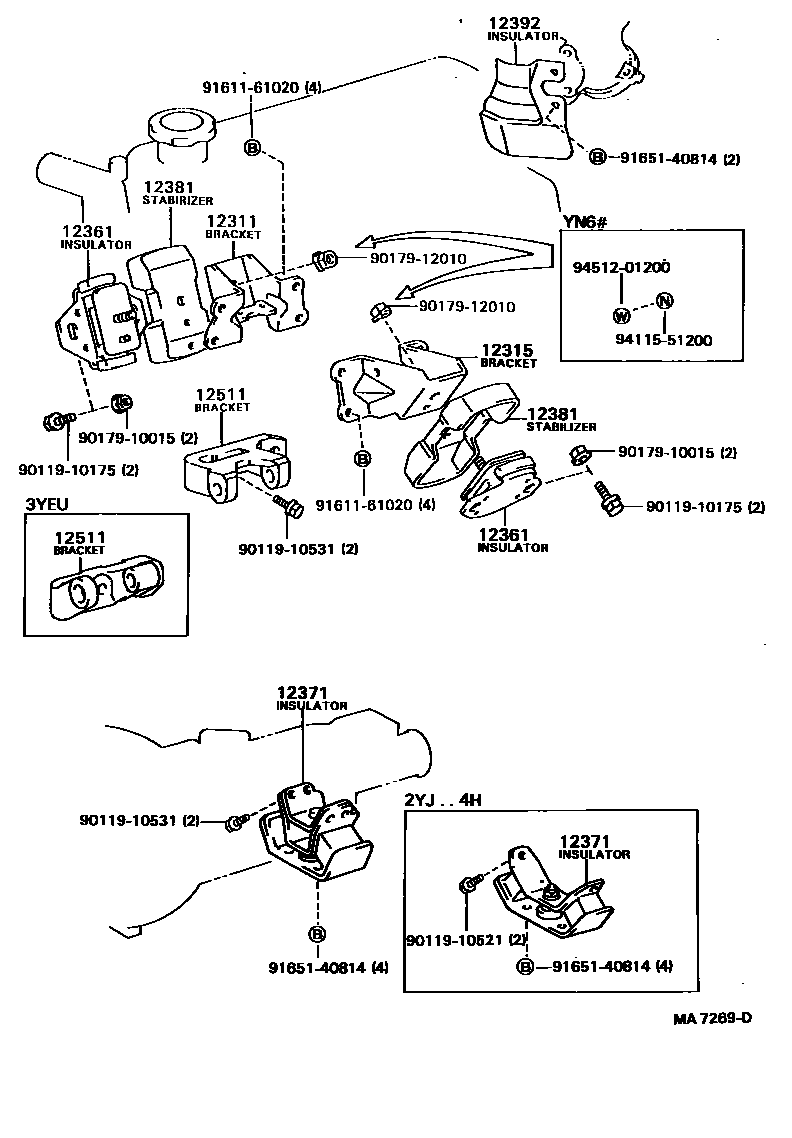

Toyota HILUX Engine Mounting — Figure 1107
Toyota HILUX EPC diagram 1107, Engine Mounting, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12311-54090 · 12311-71010 · 12311-73010 · 12311-73011 |
| 12315 | Engine No. 1 left front suspension bracket | 12312-54020 · 12312-54021 · 12315-71010 · 12315-73010 · 12315-73020 |
| 12361 | Engine front mounting vibration isolation pad | 12361-35040 · 12361-35050 · 12361-54110 · 12361-54120 · 12362-73020 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-31040 · 12371-34030 · 12371-35020 · 12371-35041 · 12371-35050 · 12371-54060 |
| 12381 | engine mount stabilizer bar | 12381-54010 · 12381-54020 · 12381-73010 |
| 12392 | Engine left front mounting heat insulation pad | 12391-72010 |
| 12511 | No. 1 generator bracket | 12501-73011 · 12511-71010 |
