Toyota HILUX Cylinder Head — Figure 1104

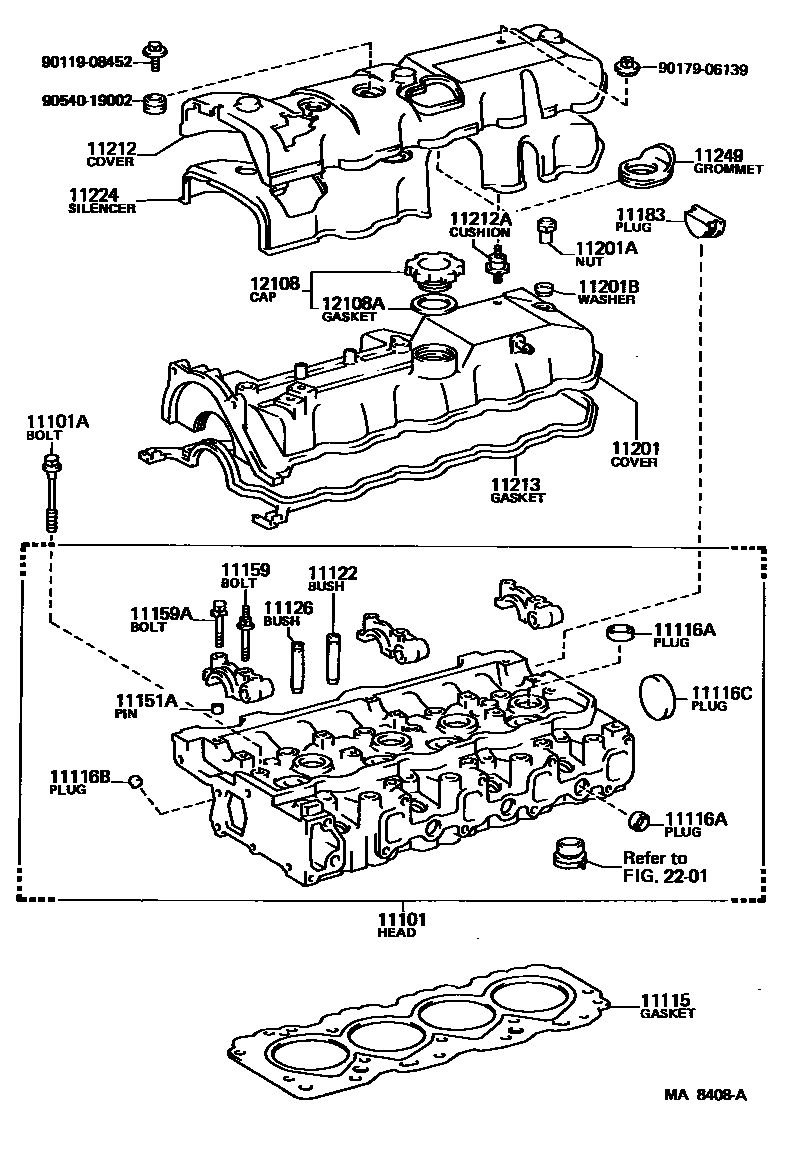

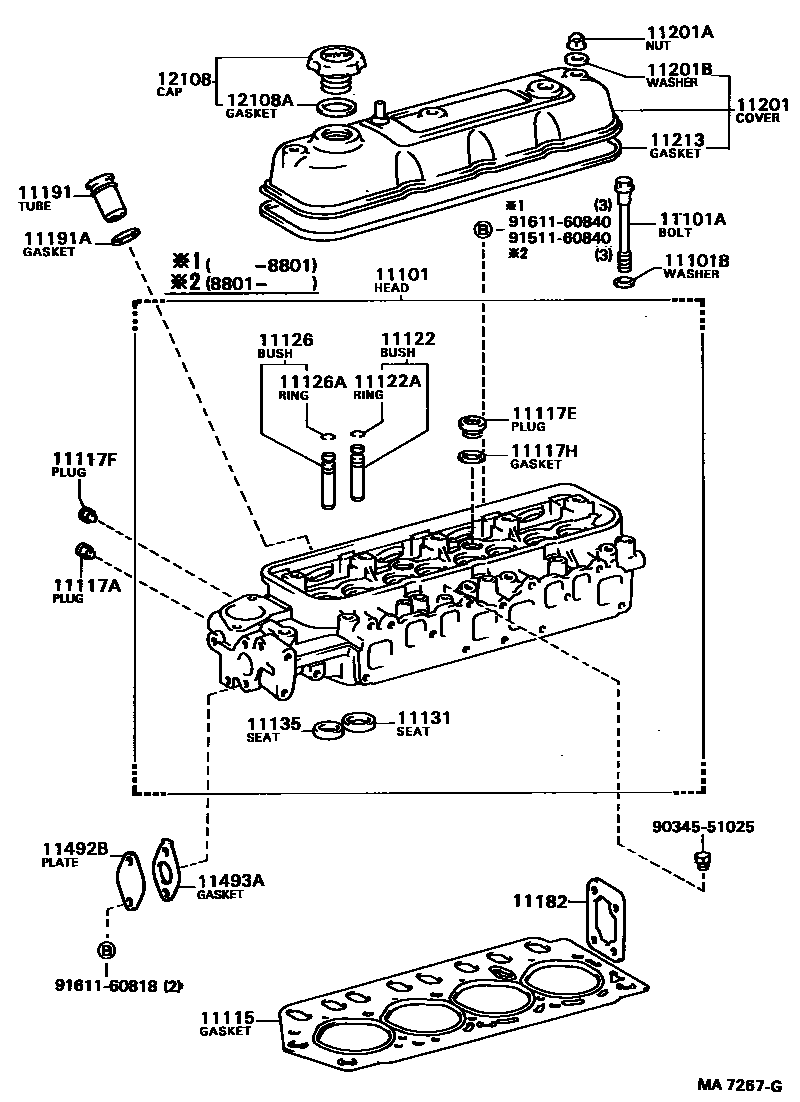

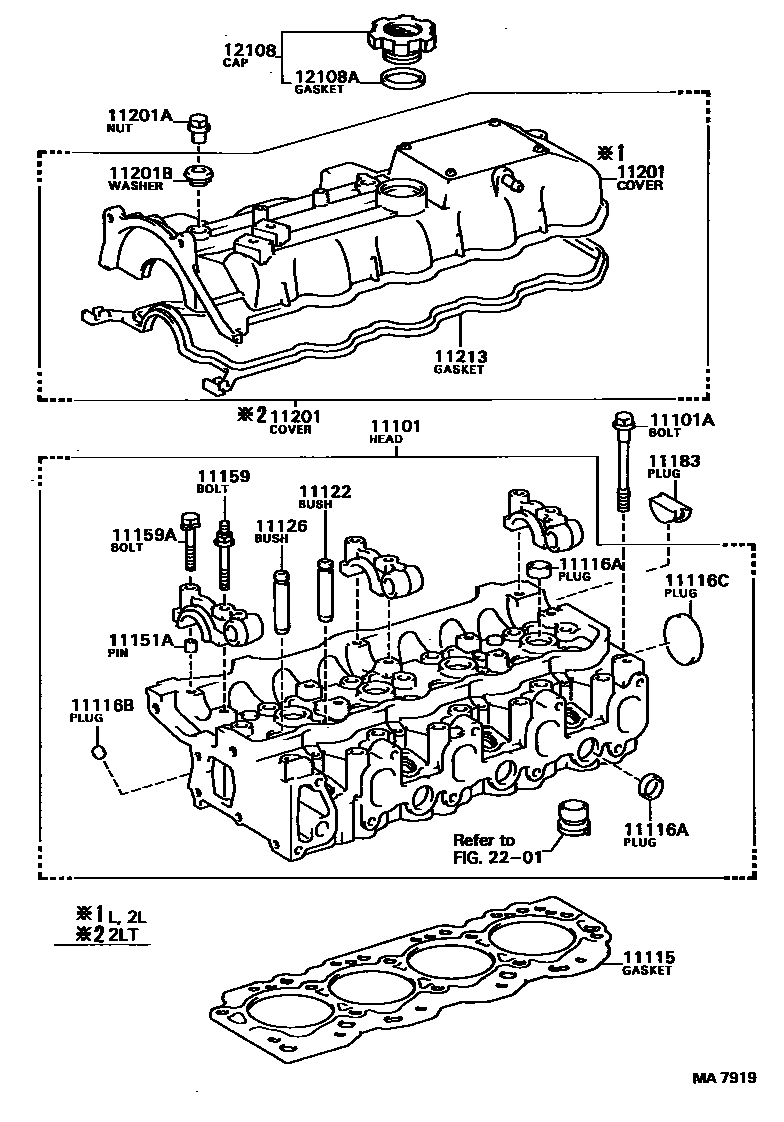

Toyota HILUX EPC diagram 1104, Cylinder Head, with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-54040 · 11101-54050 · 11101-54061 · 11101-54062 · 11101-71010 · 11101-72010 · 11101-72011 · 11101-73010 · 11101-73020 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90105-12056 · 90910-02060 · 90910-02090 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-13021 |
| 11115 | GASKET, CYLINDER HEAD | 11115-54011 · 11115-54012 · 11115-54020 · 11115-71010 · 11115-71011 |
| 11116A | No. 1 sealing plug | 96411-42500 |
| 11116B | No. 2 sealing plug | 96411-41200 |
| 11116C | No. 3 sealing plug | 96411-45000 |
| 11117A | No. 1 headed tapered thread plug | 90344-53011 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-20002 |
| 11117F | No. 2 headed straight thread plug | 90340-16002 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-54011 · 11122-71020 · 11123-54011 · 11123-71020 |
| 11122A | Shaft snap ring (for valve guide bushing) | 90520-12049 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-54011 · 11123-54011 · 11126-71020 · 11127-71020 |
| 11126A | Shaft snap ring (for valve guide bushing) | 90520-12049 |
| 11131 | intake valve seat | 11131-63010 · 11131-72010 · 11132-63010 |
| 11135 | Exhaust valve seat | 11135-71010 · 11135-72010 · 11136-71010 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-11001 |
| 11159 | Studs (for mounting cylinder head to camshaft bearing cap) | 90116-08137 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90119-08191 |
| 11182 | Rear cylinder head gasket | 11182-71010 |
| 11183 | PLUG, SEMICIRCULAR | 11183-54011 |
| 11191 | spark plug sleeve | 11191-22010 |
| 11191A | Gasket (for spark plug bushing) | 90430-31141 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-54050 · 11201-54080 · 11201-54090 · 11201-59065 · 11201-79035 |
| 11201A | Cap nut (for cylinder head cover) | 90176-08007 · 90176-08014 |
| 11201B | Gasket (for cylinder head cover) | 90210-09001 · 90210-13001 |
| 11212 | No. 2 cylinder head cover | 11212-54020 |
| 11212A | Cylinder head cover cushion | 11228-54010 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-54020 · 11213-54030 · 11213-71020 |
| 11224 | Cylinder head cover silencer | 11224-54020 |
| 11249 | Cylinder head cover gasket | 11249-54010 |
| 11492B | coolant sealing plate | 11492-71010 |
| 11493A | Coolant sealing plate gasket | 11493-71010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-13030 · 12180-61010 · 12180-70010 · 12180-71010 · 12180-71011 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 12195-71010 · 12195-71020 · 90430-37140 |
