Toyota HILUX Short Block Assembly — Figure 1102

Toyota HILUX EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

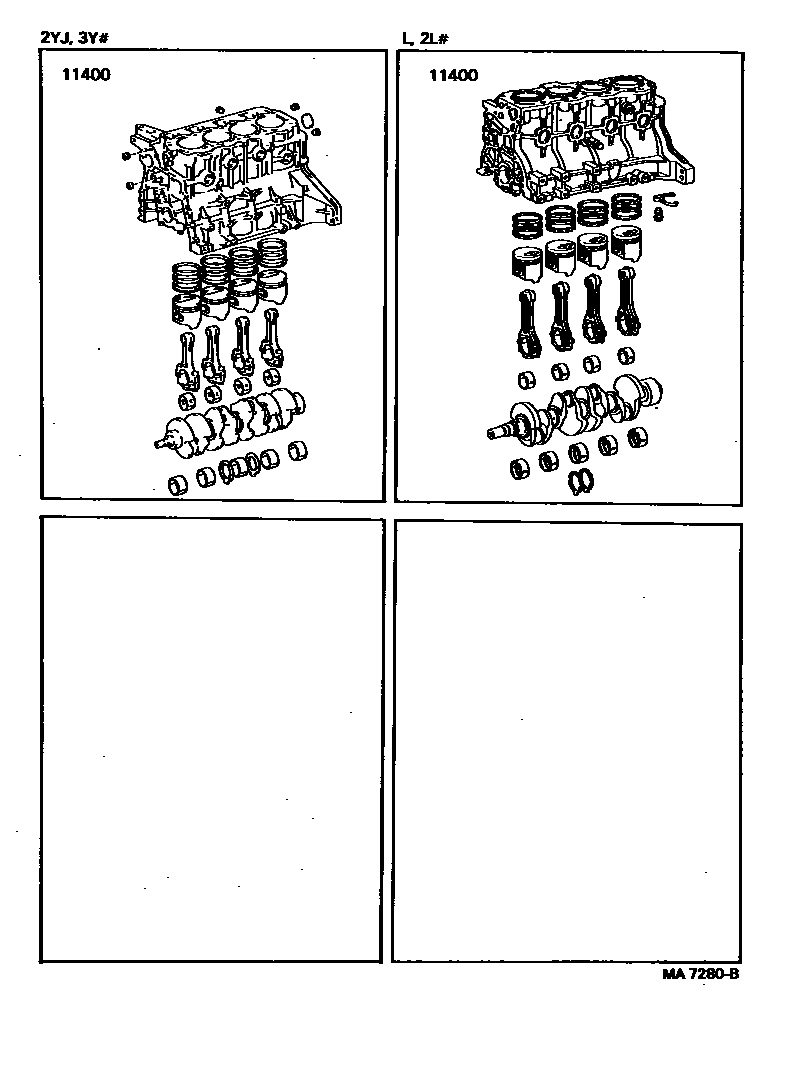

Toyota HILUX Short Block Assembly EPC diagram — MA7280B
Short Block Assembly — MA7280B (198311 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-54013 · 11400-54014 · 11400-54042 · 11400-54043 · 11400-54060 · 11400-54061 · 11400-54062 · 11400-72020 · 11400-72021 · 11400-73010 · 11400-73011 · 11400-73030 · 11400-73031
