Toyota HILUX Partial Engine Assembly — Figure 1101

Toyota HILUX EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

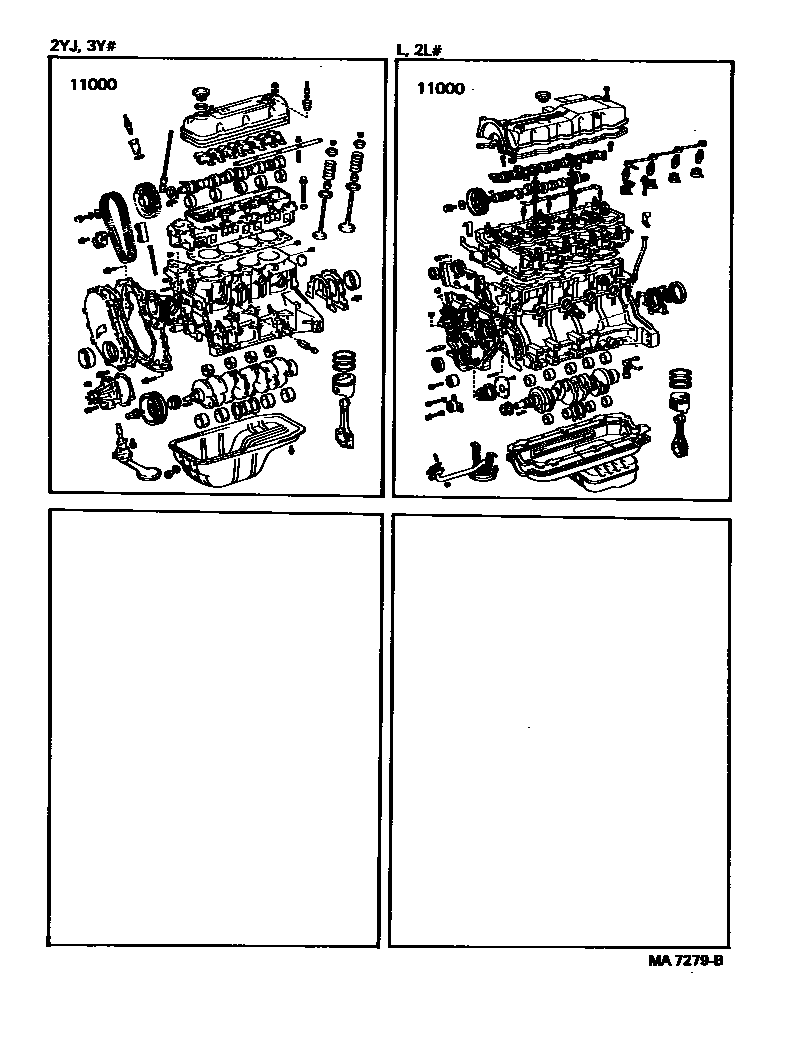

Toyota HILUX Partial Engine Assembly EPC diagram — MA7279B
Partial Engine Assembly — MA7279B (198311 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-54360 · 19000-54370 · 19000-54371 · 19000-54380 · 19000-54381 · 19000-54382 · 19000-54470 · 19000-54471 · 19000-54472 · 19000-72100 · 19000-72101 · 19000-72300 · 19000-73070 · 19000-73071 · 19000-73090 · 19000-73091 · 19000-73430 · 19000-73620 · 19000-73640
