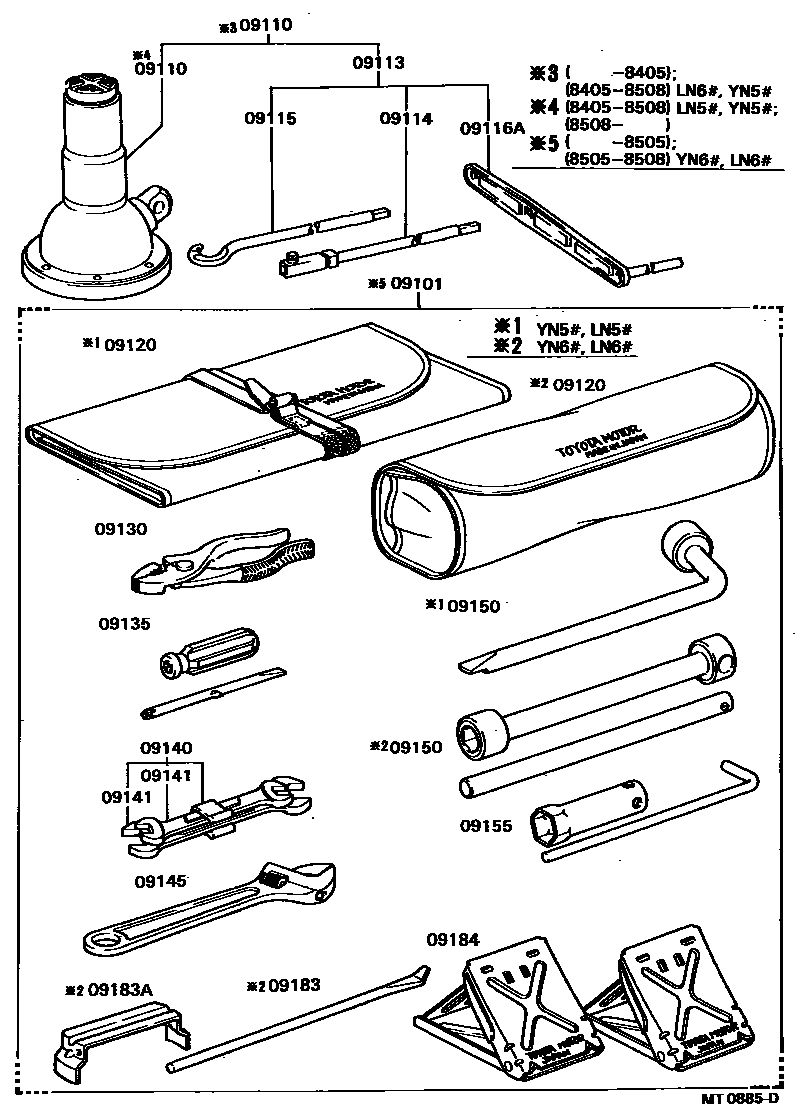

Toyota HILUX Standard Tools — Figure 0901
Toyota HILUX EPC diagram 0901, Standard Tools, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09101 | Standard kit without jack | 09101-26160 · 09101-26163 · 09101-35250 · 09101-35251 · 09101-35252 · 09101-35253 · 09101-35280 · 09101-35290 |
| 09110 | Jack Assembly | 09110-35091 · 09110-35121 · 09111-35071 · 09111-35110 · 09111-35130 · 09111-89101 |
| 09113 | Jack Handle | 09113-35070 · 09113-35110 |
| 09114 | Jack Handle Extension Sub-Assembly | 09114-35020 · 09114-35030 · 09114-35031 · 09114-60050 |
| 09115 | Jack Handle Rod Sub-Assembly | 09115-35030 · 09115-35040 · 09115-35080 · 09115-35090 |
| 09116A | Jack Handle Rod | 09116-35030 · 09116-35031 · 09116-35041 |
| 09120 | Tool Bag | 09120-26021 · 09120-35050 · 09120-36030 |
| 09130 | Pliers | 99913-11500 |
| 09135 | Screwdriver | 99915-10700 |
| 09140 | Wrench assembly | 09140-27010 |
| 09141 | Wrench | 99914-11012 · 99914-11417 |
| 09145 | adjustable wrench | 99911-10200 · 99911-11200 |
| 09150 | Wheel Nut Wrench | 09150-35020 · 09150-60010 |
| 09155 | Spark Plug Wrench | 09155-41010 |
| 09183 | Wheel Cap Remover | 09183-00030 |
| 09183A | Wheel cover removal and assembly tools | 09183-35010 · 09183-60010 |
| 09184 | Wheel Chock | 09184-00010 · 09184-00031 |
