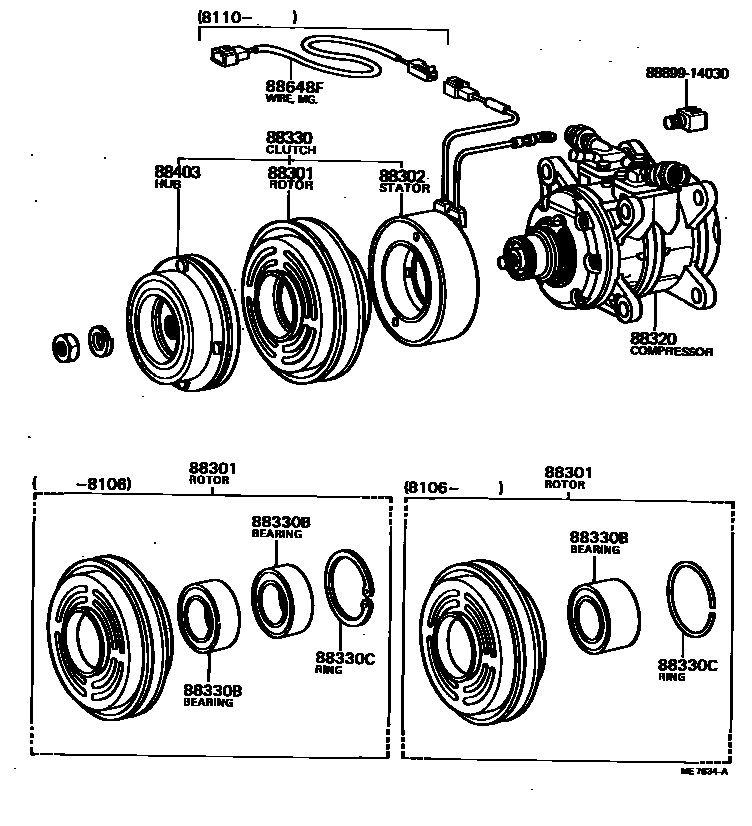

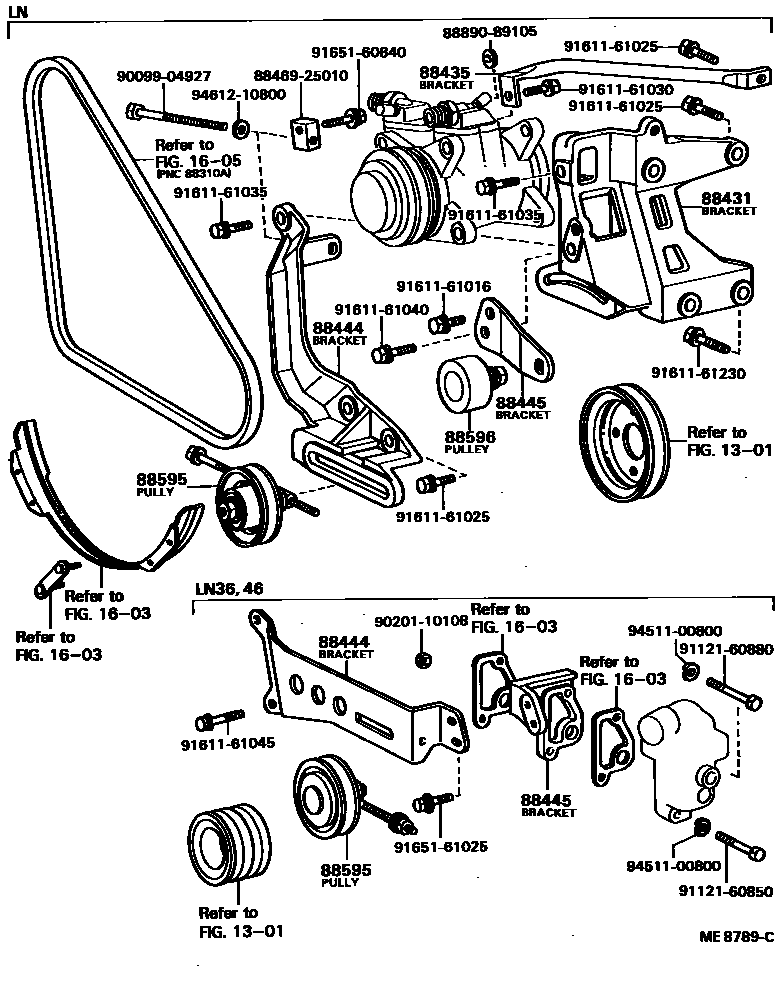

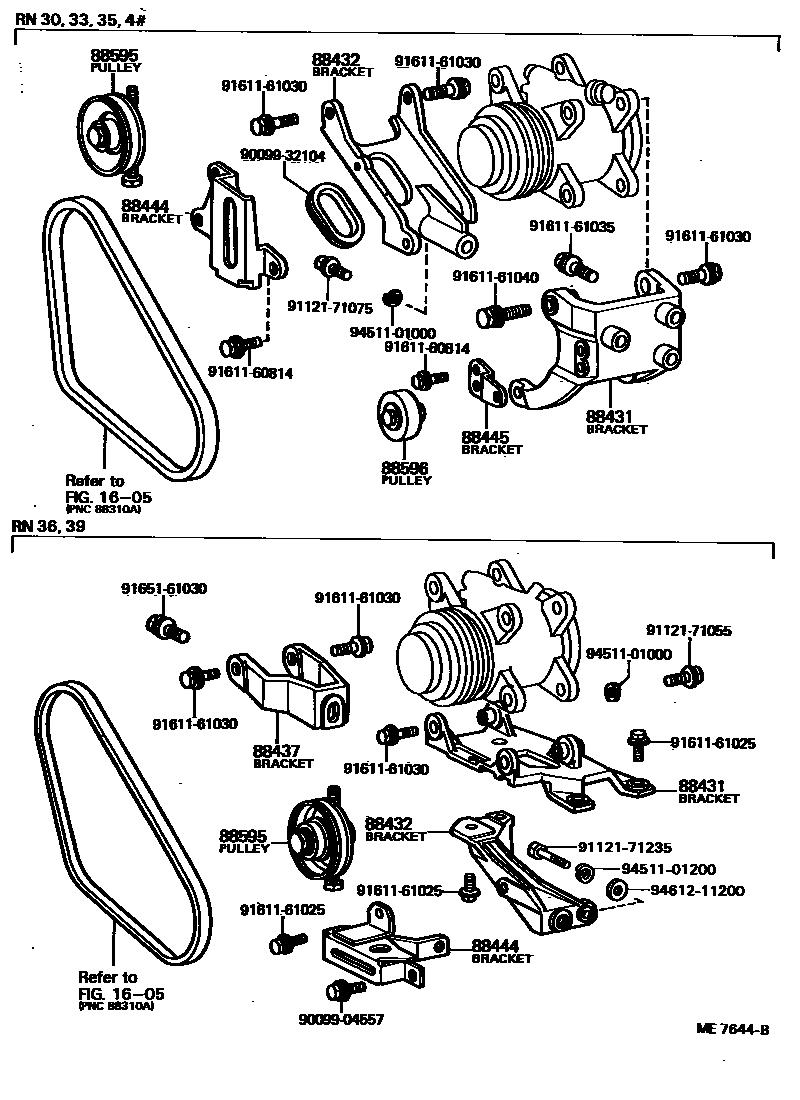

Toyota HILUX Heating & Air Conditioning - Compressor — Figure 8719
Toyota HILUX EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-12040 · 88412-14010 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-14050 · 88411-22040 |
| 88320 | Cooler Compressor Assembly | 88320-35010 · 88320-35011 · 88320-35030 · 88320-35050 · 88320-35061 · 88320-35080 · 88320-35100 |
| 88330 | Magnetic Clutch Assembly | 88410-14090 · 88410-22060 |
| 88330B | Electromagnetic clutch bearing | 90099-10117 · 90099-10133 |
| 88330C | Snap ring (for electromagnetic clutch) | 90099-07094 · 90099-07114 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-14030 · 88403-26030 |
| 88431 | Compressor No. 1 mounting bracket | 88431-25020 · 88431-35010 · 88431-35030 |
| 88432 | Compressor No. 2 mounting bracket | 88431-35020 · 88431-35050 |
| 88435 | Compressor No. 5 mounting bracket | 88433-25030 · 88433-35010 |
| 88437 | Compressor No. 7 mounting bracket | 88437-35010 |
| 88444 | Idler gear bracket | 88444-22030 · 88444-25020 · 88444-25040 · 88444-26040 · 88444-35010 |
| 88445 | Idler gear bracket | 88444-25030 · 88444-26050 · 88444-35020 |
| 88595 | Cooler compressor idler pulley | 88440-25010 · 88440-26030 · 88440-30250 |
| 88596 | No. 2 idler gear assembly | 88440-20060 · 88440-25020 |
| 88648F | Electromagnetic clutch wiring harness | 88648-89107 |
