Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718

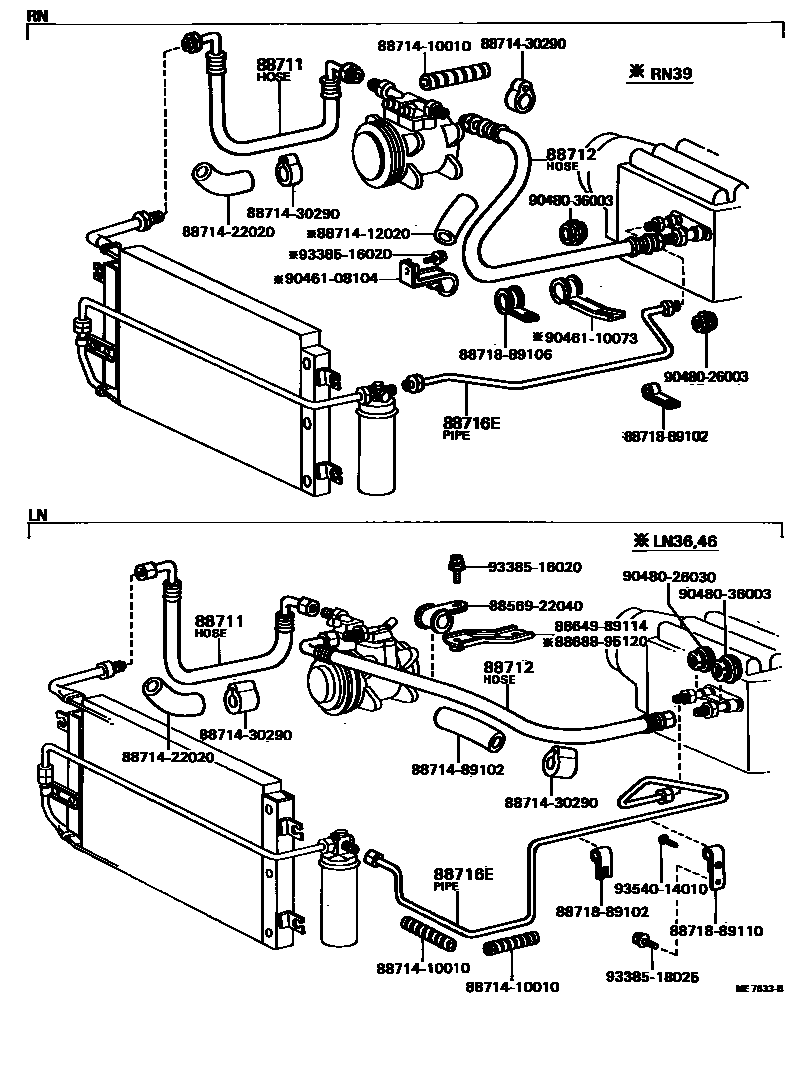

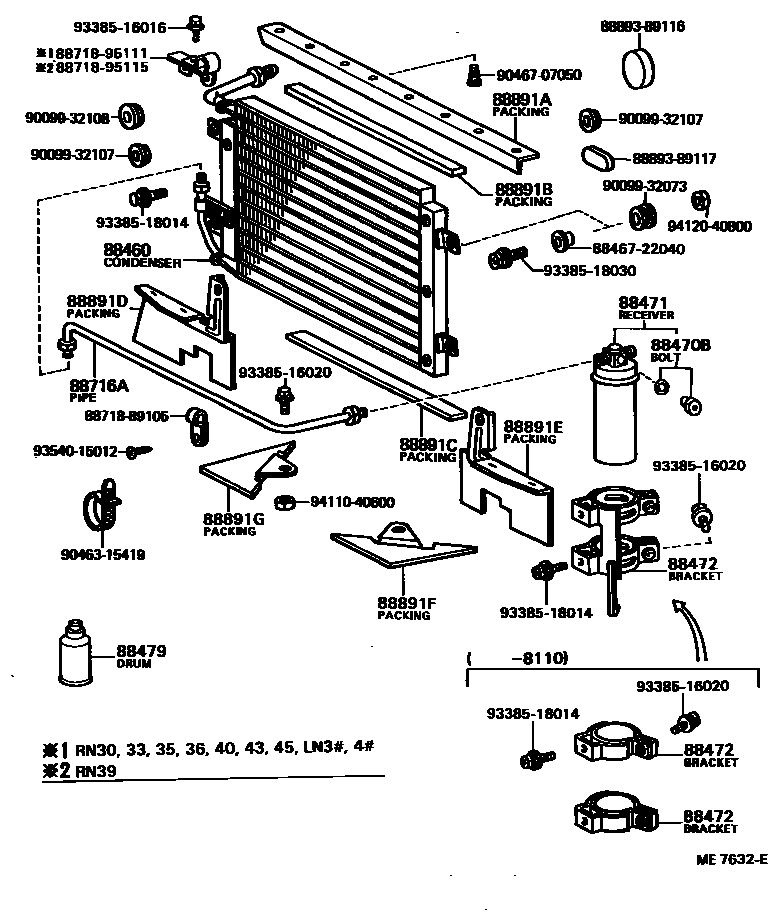

Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88460-89107 |
| 88470B | fuse bolt | 90099-04579 |
| 88471 | Air conditioning fluid storage tank | 88470-12031 · 88470-20070 |
| 88472 | No. 1 liquid storage tank bracket | 88472-89103 · 88472-89104 · 88472-89106 · 88472-89107 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-89109 · 88711-89111 · 88711-89113 · 88711-95111 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88382-36010 · 88712-89106 · 88712-89109 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-89119 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-89121 · 88716-89126 · 88716-95111 |
| 88891A | Seal A (for cooler) | 88893-89113 |
| 88891B | Seal B (for cooler) | 88893-89114 · 88893-89118 · 88893-89120 |
| 88891C | Seal C (for cooler) | 88893-89115 · 88893-89116 · 88893-89118 |
| 88891D | Seal D (for cooler) | 88898-89109 |
| 88891E | Seal E (for cooler) | 88898-89110 |
| 88891F | Seal F (for cooler) | 88898-89111 · 88898-89114 |
| 88891G | Seal G (for cooler) | 88898-89112 · 88898-89115 |
