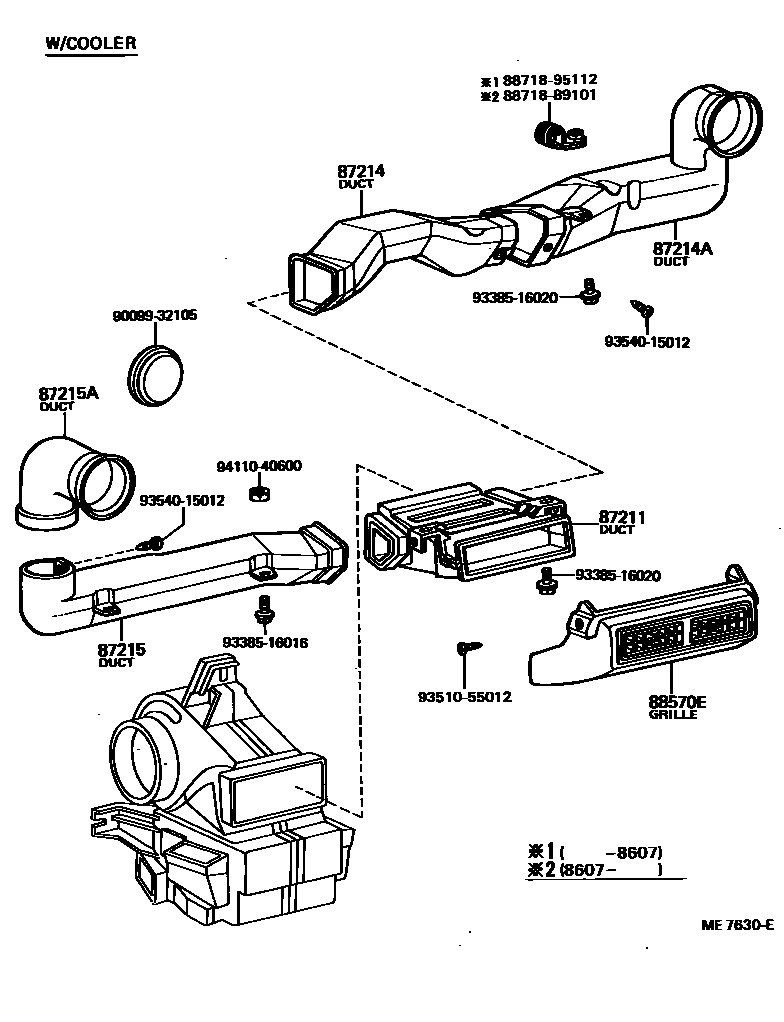

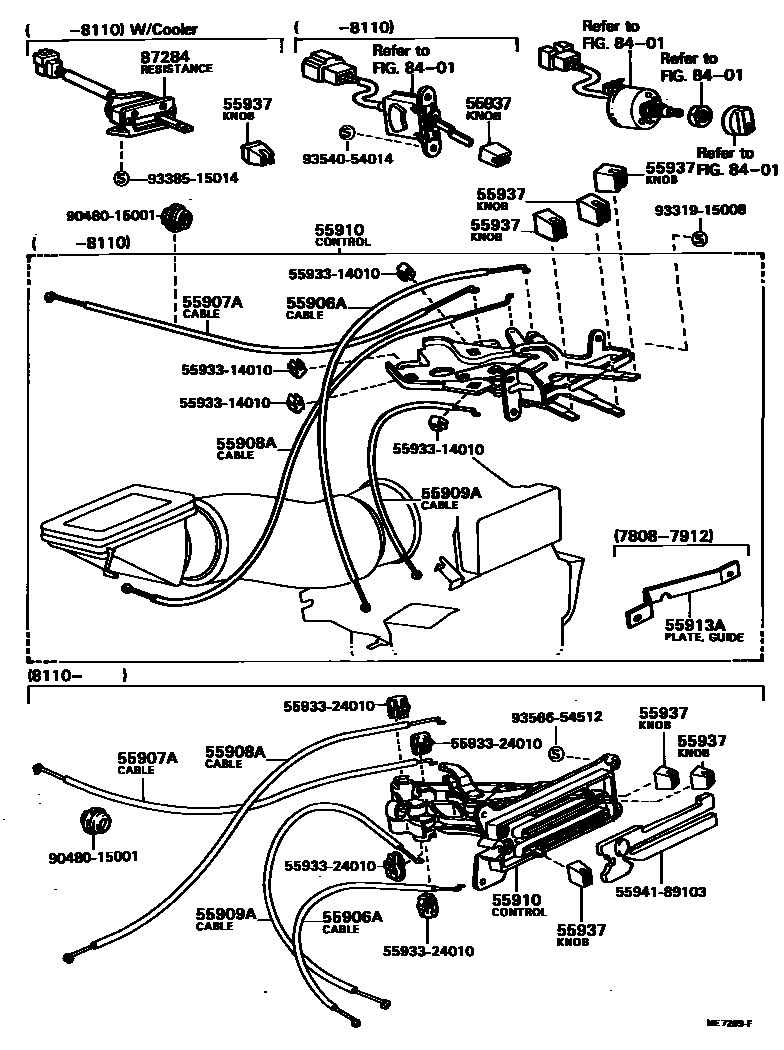

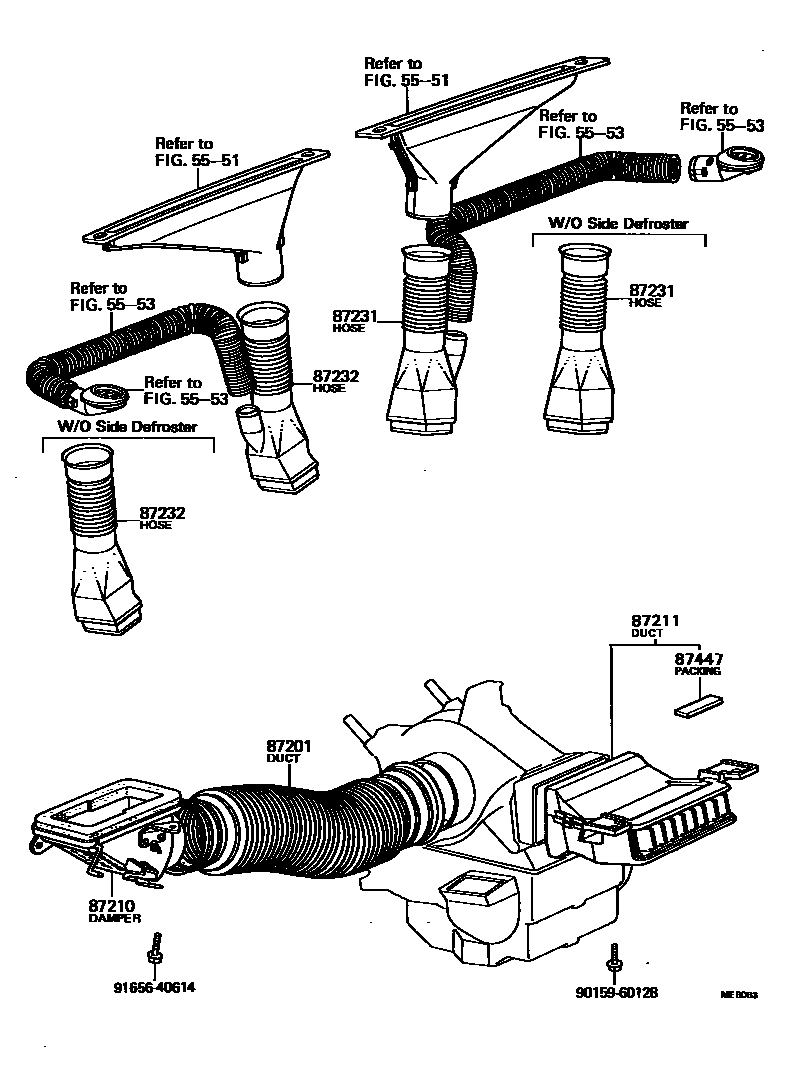

Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55906A | Defroster damper control cable sub-assembly | 55906-89104 · 55906-89105 |
| 55907A | Water valve control cable sub-assembly | 55907-89107 · 55907-89109 |
| 55908A | Intake air valve control cable sub-assembly | 55908-89102 · 55908-89103 |
| 55909A | Air mix damper control cable sub-assembly | 55909-89103 · 55909-89104 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-89109 · 55910-89113 |
| 55913A | Heater control lever guide | 55913-89104 |
| 55937 | Heater lever button | 55905-12070 · 55905-20140 |
| 87201 | No. 1 air duct sub-assembly | 87211-89101 |
| 87210 | choke assembly | 87210-89102 · 87210-89103 |
| 87211 | No. 1 air duct | 88575-89101 |
| 87214 | Air duct No. 1 on the right | 88576-89101 · 88576-95112 |
| 87214A | Air duct No. 2 on the right | 88576-89102 · 88576-95113 |
| 87215 | Air duct No. 1 on the left | 88576-89103 |
| 87215A | Air duct No. 2 on the left | 88576-89104 |
| 87231 | Heater right side defroster hose | 87231-89106 · 87231-89107 |
| 87232 | Defroster hose, left side of heater | 87232-89106 · 87232-89107 |
| 87284 | Variable resistor sub-assembly | 88622-89101 |
| 87447 | Air duct seals | 55697-89102 |
| 88570E | Air outlet grille assembly | 88570-89103 |
