Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714

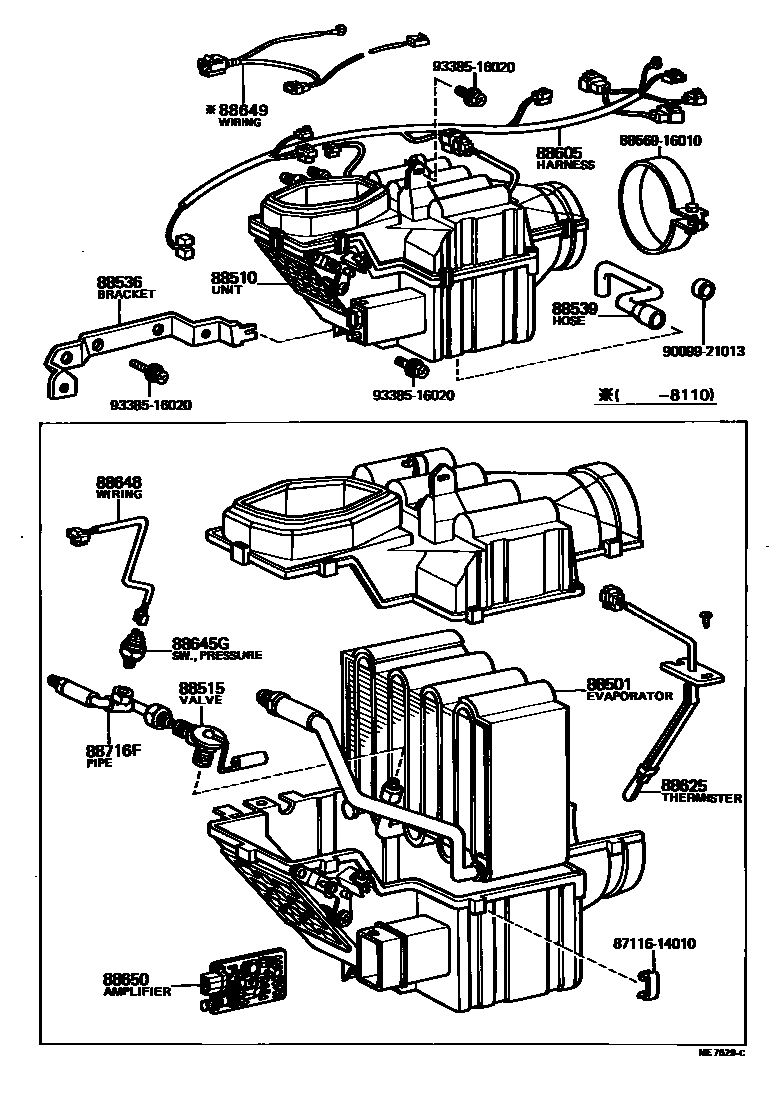

Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-89101 · 88501-89103 · 88501-89108 |
| 88510 | Cooler device assembly | 88510-89109 · 88510-89111 · 88510-89114 |
| 88515 | Cooler expansion valve | 88515-20040 |
| 88536 | Cooling device bracket No. 1 | 88536-89120 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-89101 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-89110 · 88605-89114 · 88605-89117 · 88605-89120 |
| 88625 | Cooler No. 1 Thermistor | 88626-89101 |
| 88645G | pressure switch | 88645-22010 · 88645-22020 |
| 88648 | No. 1 cooler wiring harness | 88648-10070 · 88648-12110 |
| 88649 | No. 2 cooler wiring harness | 88648-89103 |
| 88650 | Cooler stabilized amplifier assembly | 88650-16010 · 88650-20100 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-89124 |
