Toyota HILUX 暖风和空调系统 - 组件 — Figure 8711
Toyota HILUX EPC diagram 8711, 暖风和空调系统 - 组件, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

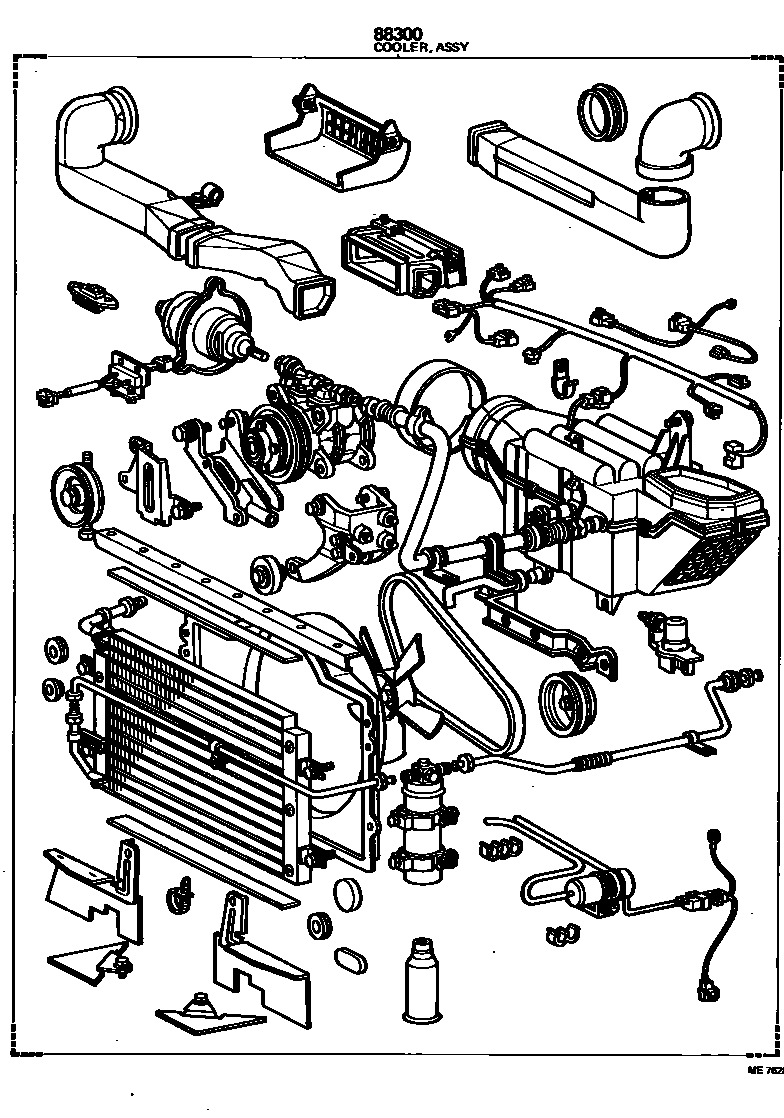

| 88300 | Air conditioning and accessories assembly | 88300-89120 · 88300-89130 · 88300-89134 · 88300-89139 · 88300-89149 · 88300-89165 · 88300-95116 · 88300-95123 · 88300-95126 |

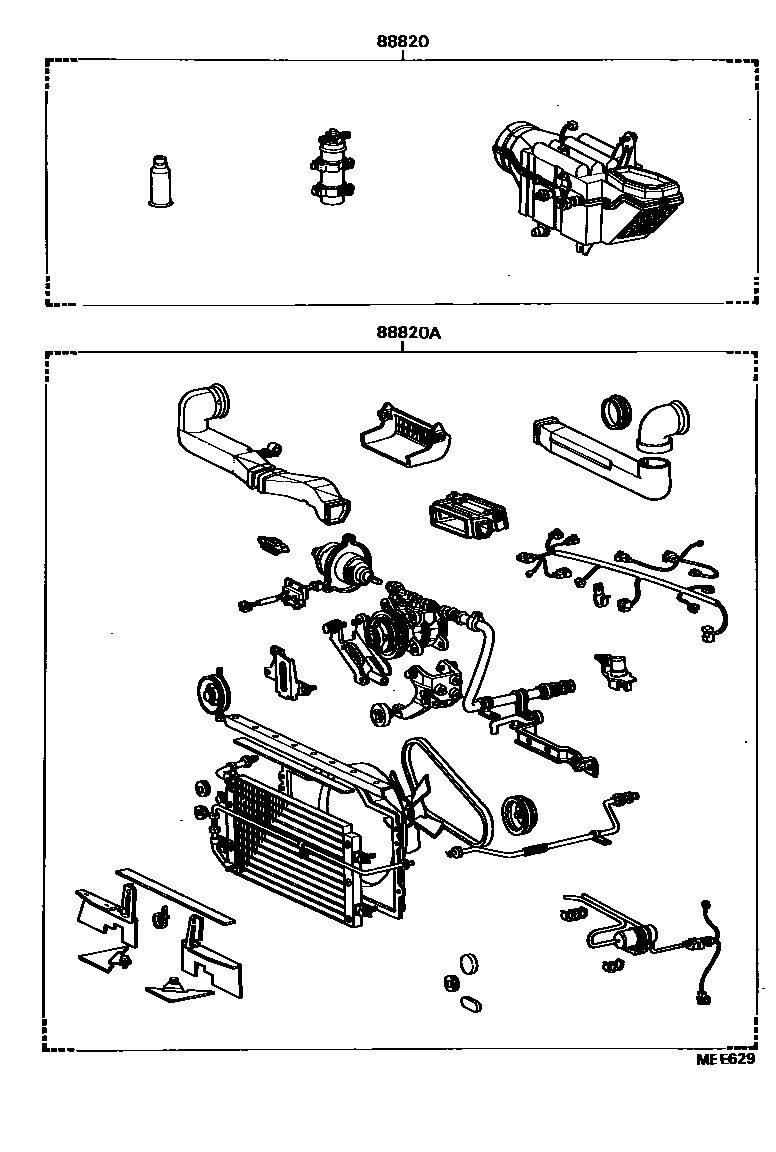

| 88820 | No. 1 air conditioner and accessories sub-assembly | 88820-89105 · 88820-89106 |
| 88820A | No. 2 air conditioner and accessories sub-assembly | 88830-89111 · 88830-89112 · 88830-89116 |
