Toyota HILUX 后视镜 — Figure 8701

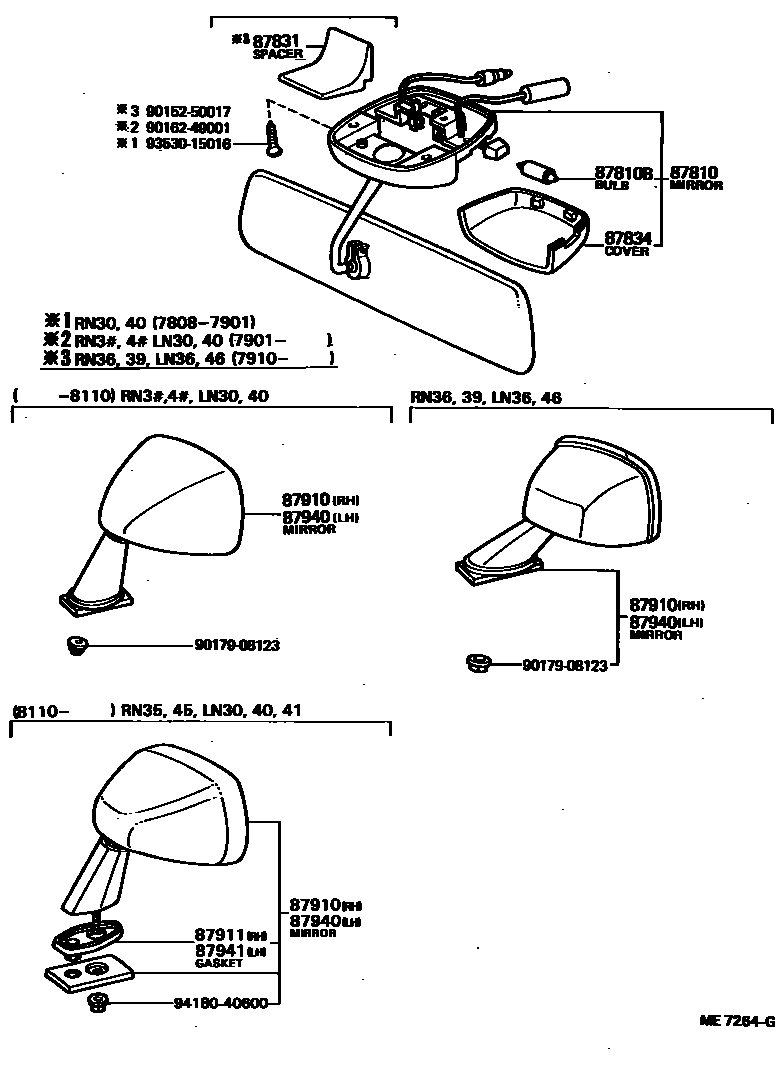

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810B | Interior rearview mirror light bulb | 90981-16013 · 99132-13050 |
| 87831 | Spacer (for interior rearview mirror) | 87831-95010 |
| 87834 | Interior rearview mirror stay fixing cover | 87814-12020 |
| 87910 | Right exterior rearview mirror assembly | 87910-39165 · 87910-39315 · 87910-89108 |
| 87911 | Right exterior mirror pad | 87911-89104 |
| 87940 | Left exterior rearview mirror assembly | 87940-39125 · 87940-39265 · 87940-89111 |
| 87941 | Left exterior mirror pad | 87941-89102 |
