Toyota HILUX 收音机、放大器和冷凝器 — Figure 8601

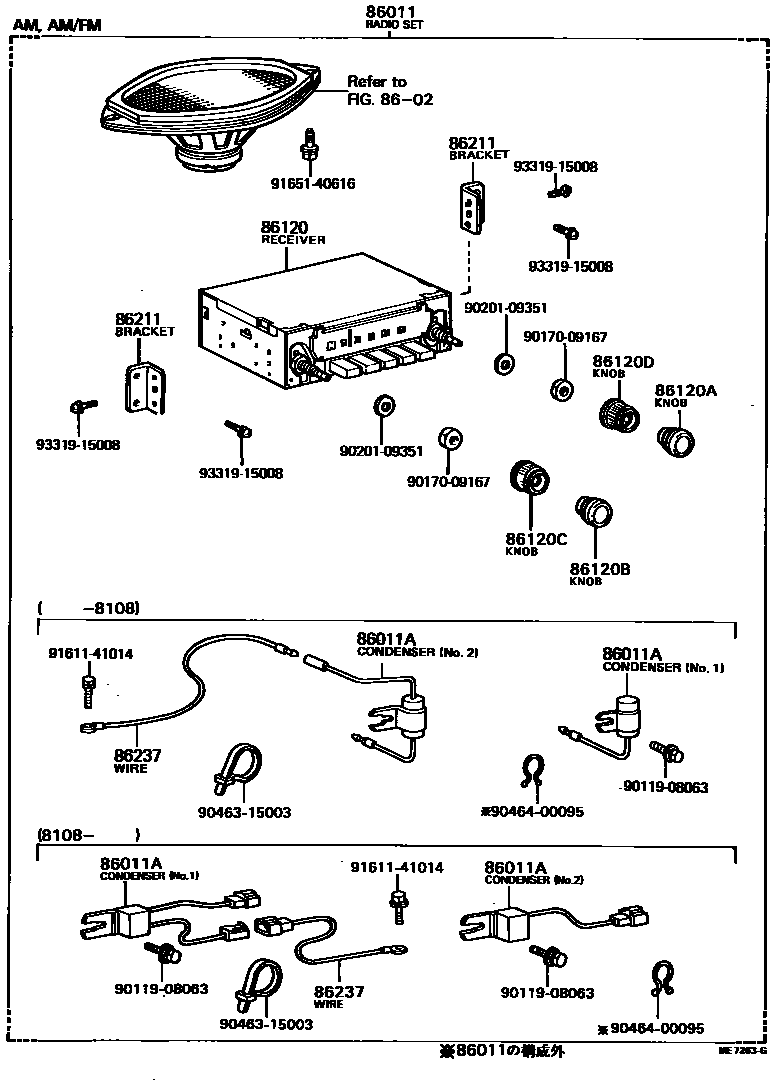

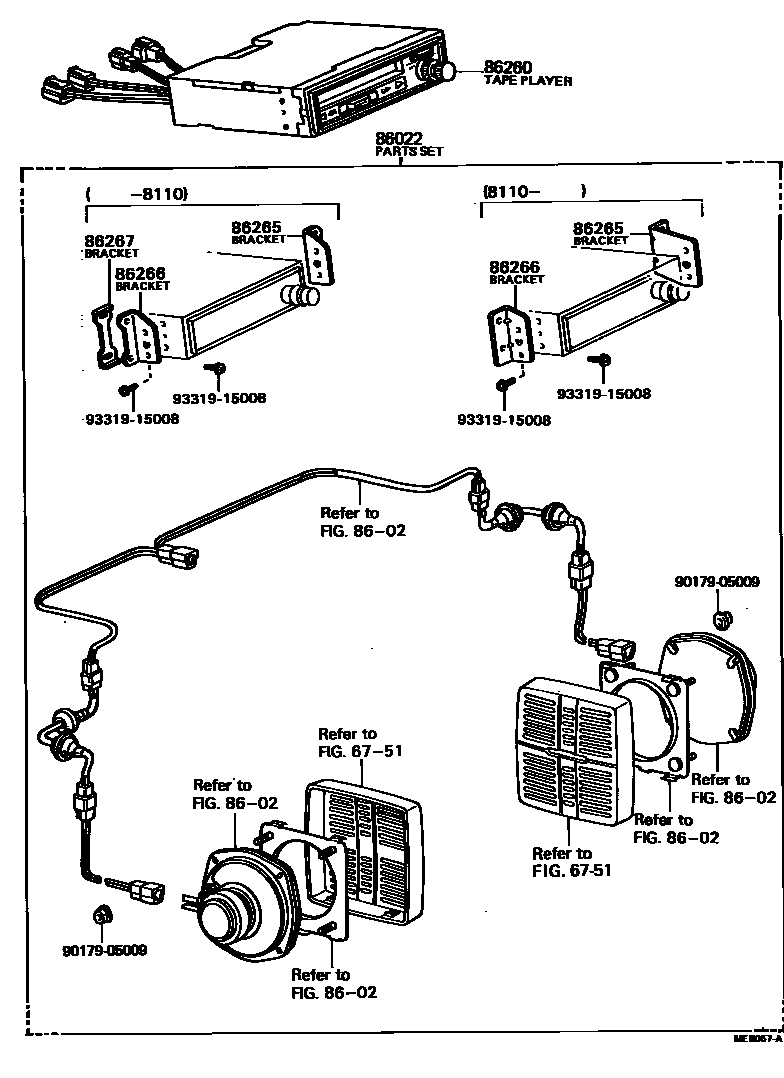

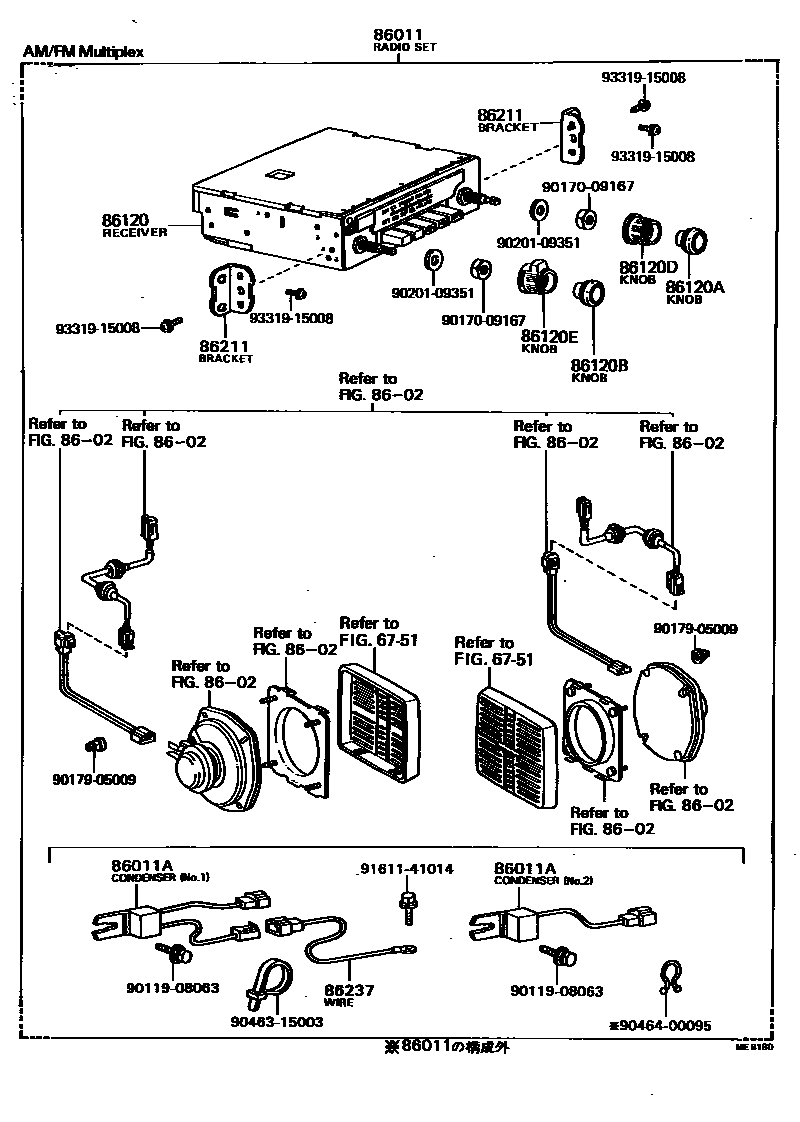

Toyota HILUX EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011 | Radio and set parts assemblies | 86011-39035 · 86011-39045 · 86011-39145 · 86011-39155 |
| 86011A | radio settings phase modulator | 90980-04011 · 90980-04029 · 90980-04038 · 90980-04040 |
| 86022 | Tape player set parts components | 86022-39055 · 86022-39085 |
| 86120 | Radio assembly | 86120-90A00 · 86120-90A01 · 86120-95400 · 86120-95A00 · 86120-95A02 |
| 86120A | Radio switch knob | 86125-89101 · 86125-95A00 |
| 86120B | Radio tuning knob No. 1 | 86125-89101 · 86125-95A00 |
| 86120C | Radio tuning knob No. 2 | 86124-89104 · 86124-95A00 |
| 86120D | radio tone knob | 86124-89104 · 86124-95A00 |
| 86120E | radio balance knob | 86124-89102 |
| 86211 | No. 1 radio bracket | 86211-89104 · 86211-89107 |
| 86237 | capacitor harness | 86237-89101 · 86237-89103 · 86237-89104 |
| 86260 | Tape player assembly | 86260-14090 · 86260-95A01 |
| 86265 | Tape player stand No. 1 | 86265-89103 · 86265-89109 |
| 86266 | Tape player stand No. 2 | 86265-89104 · 86265-89110 |
| 86267 | Tape player stand No. 3 | 86265-89106 |
