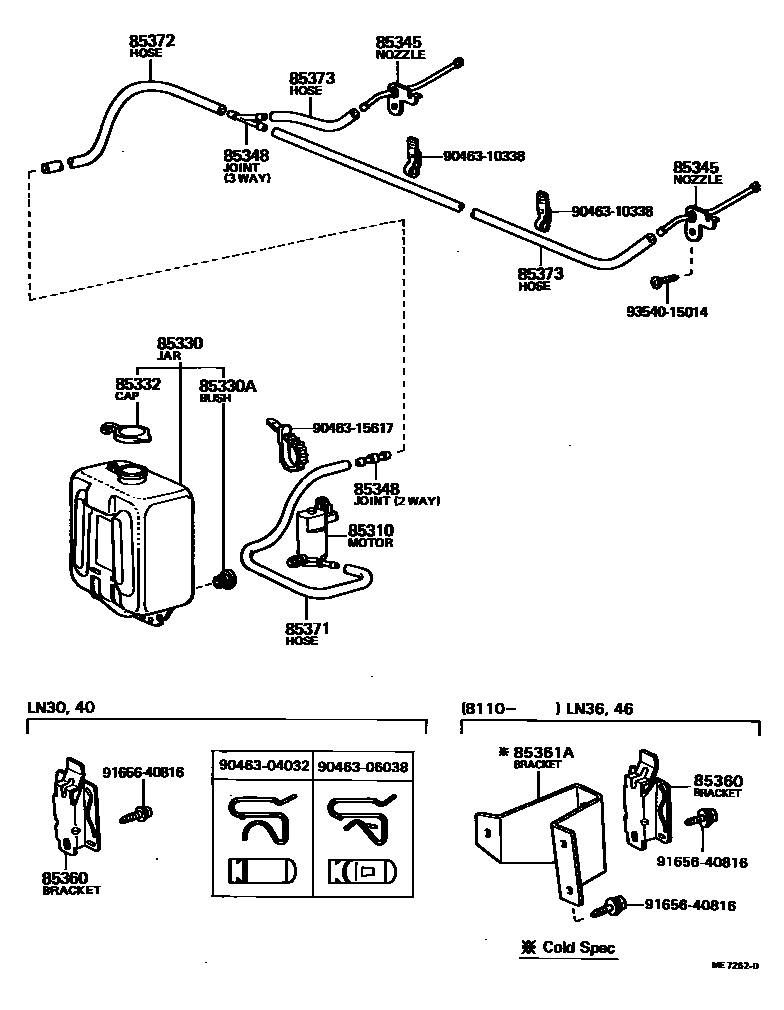

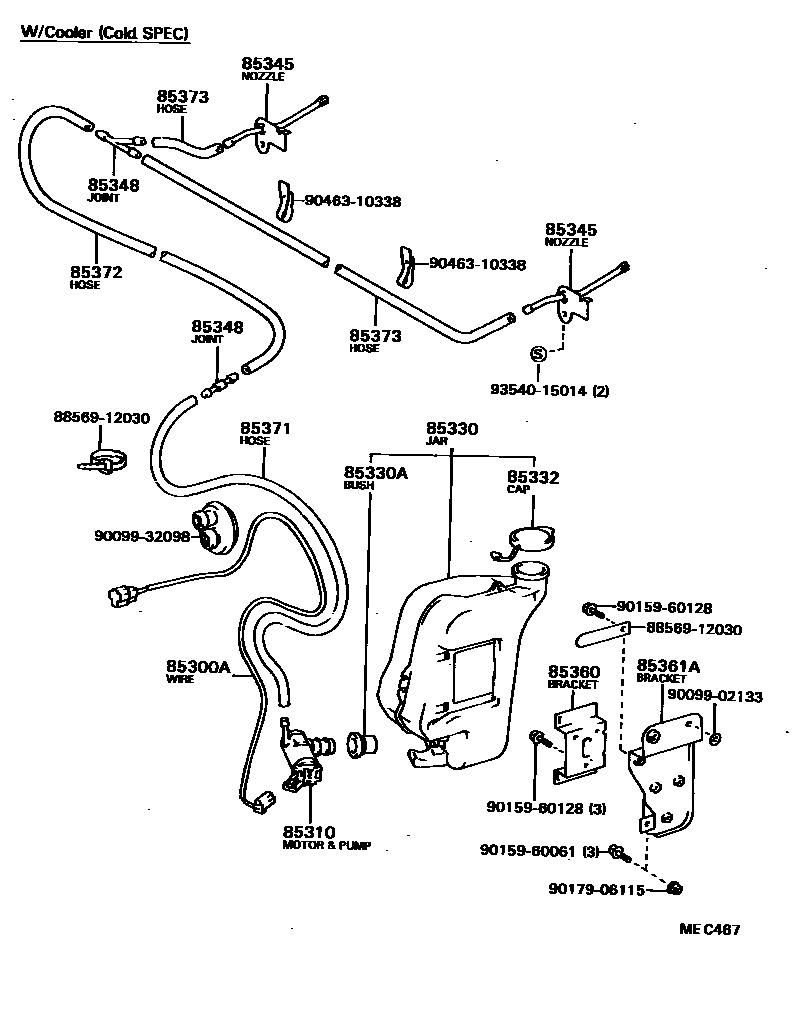

Toyota HILUX 挡风玻璃清洗器 — Figure 8503
Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85300A | Windshield washer motor wiring harness | 82374-89101 |
| 85310 | Windshield washer motor and pump assembly | 85310-20100 · 85310-22080 · 85310-25010 |
| 85330 | Windshield washer fluid tank assembly | 85330-89104 · 85331-89101 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85033-36120 · 85332-30050 |
| 85345 | windshield washer nozzle | 85341-89104 |
| 85348 | Windshield washer hose connector No. 1 | 85355-14010 · 85355-87201 |
| 85360 | Windshield washer bracket assembly | 16611-95110 · 53752-12030 · 53752-89101 · 85361-89103 |
| 85361A | Windshield washer bracket No. 1 | 74465-89102 · 85362-89101 |
| 85371 | Windshield washer hose (from motor to connector) | 90446-06013 · 90446-06051 |
