Toyota HILUX 开关和继电器和ECU — Figure 8401

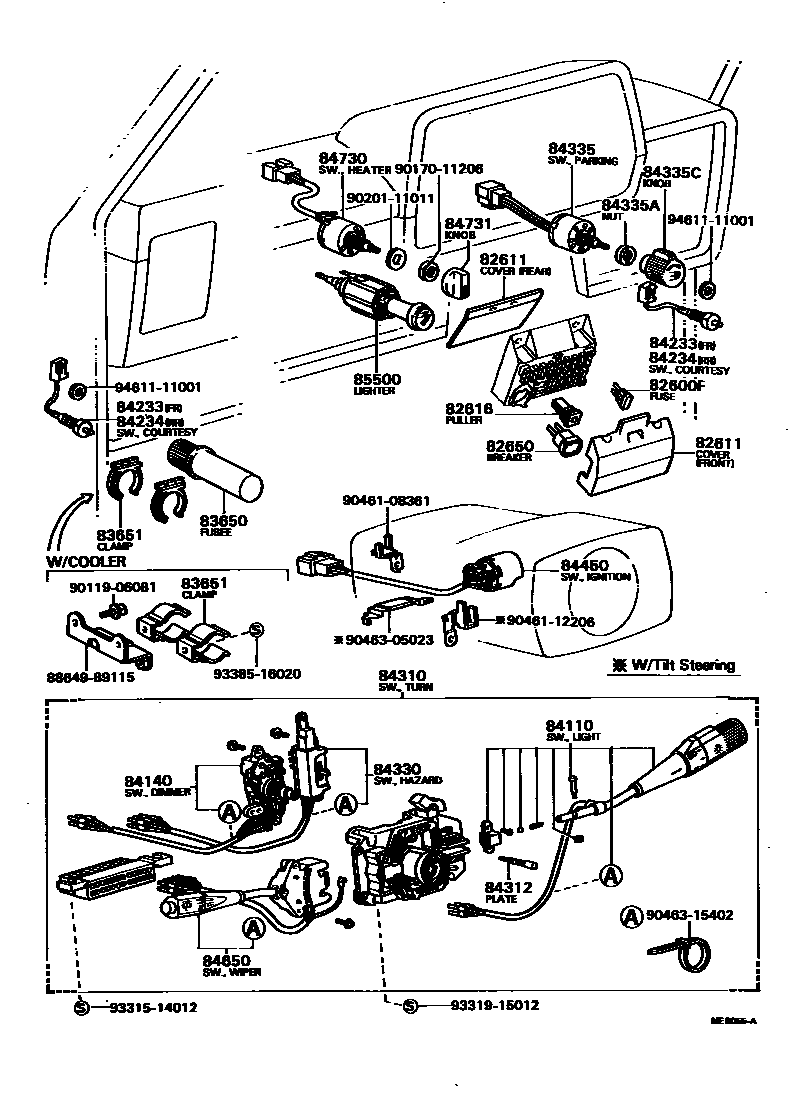

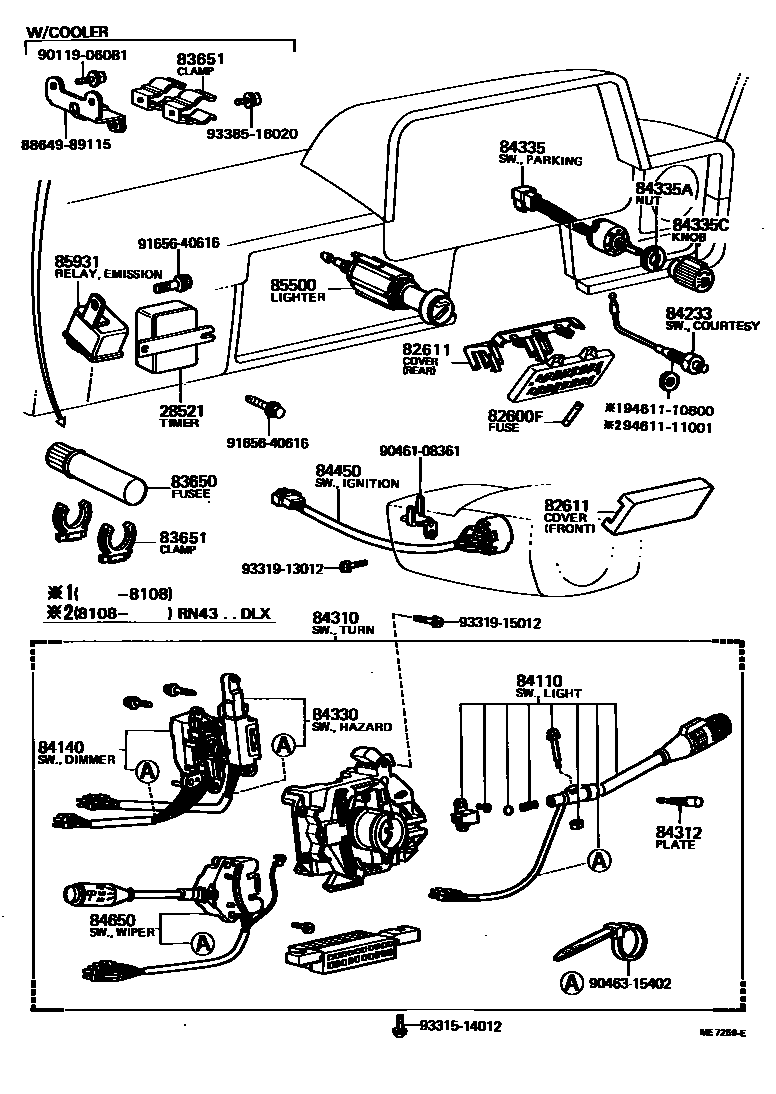

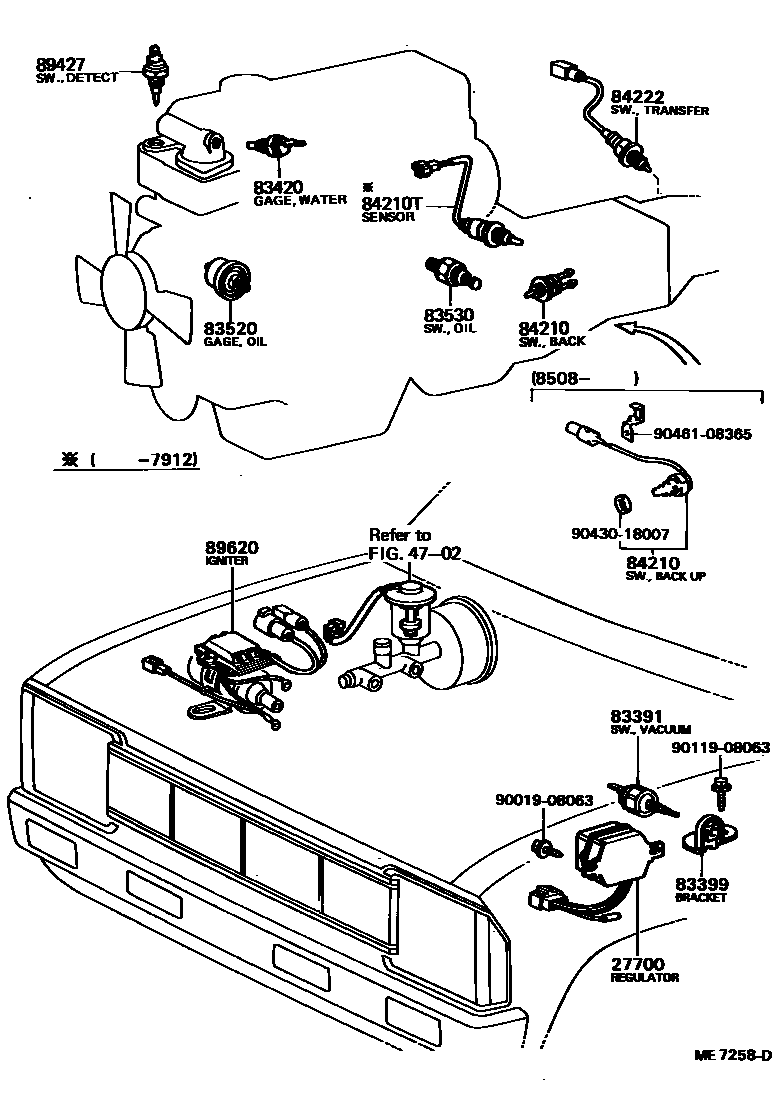

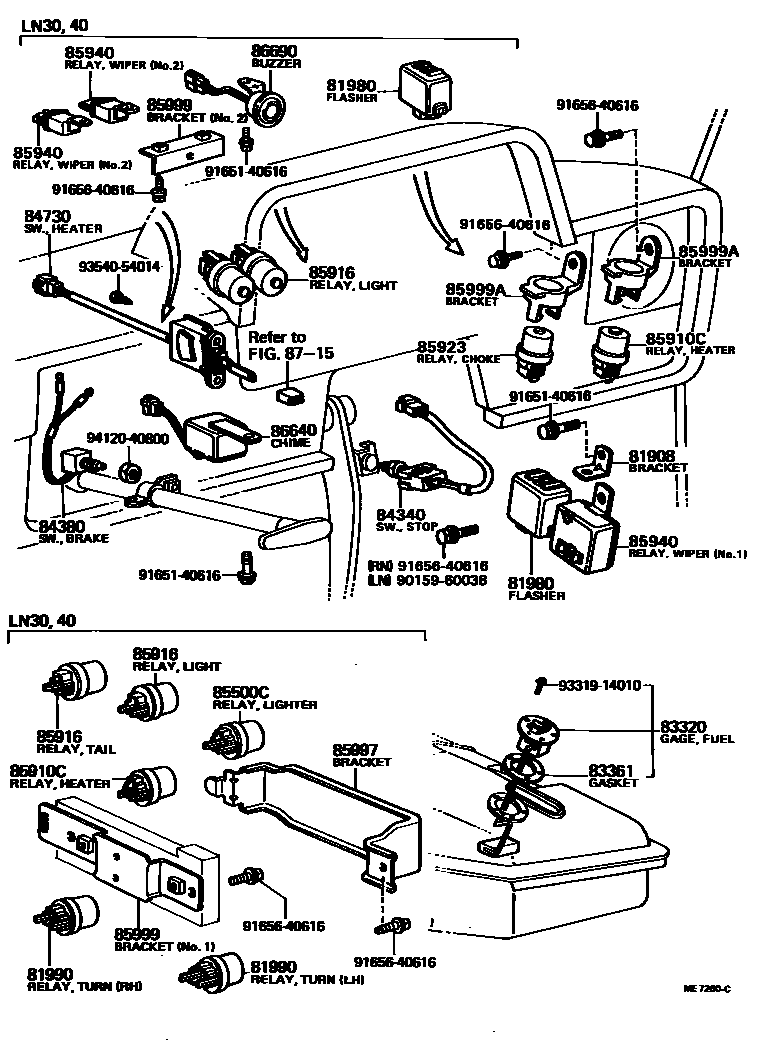

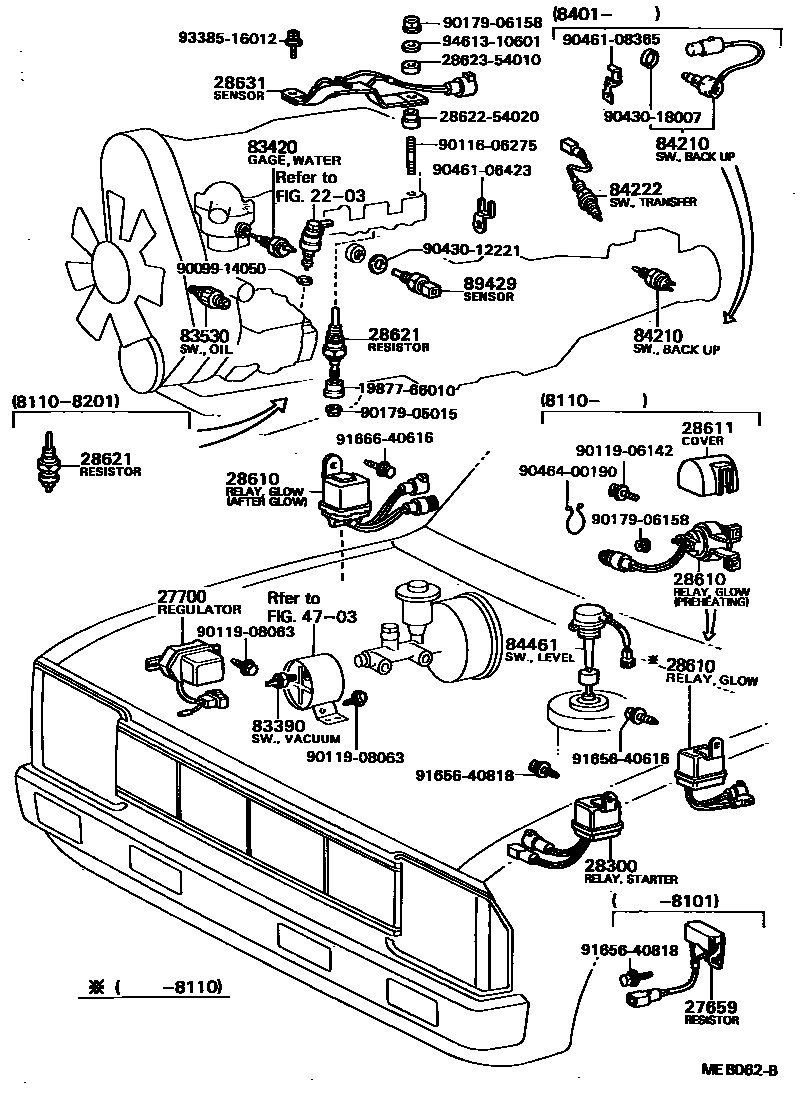

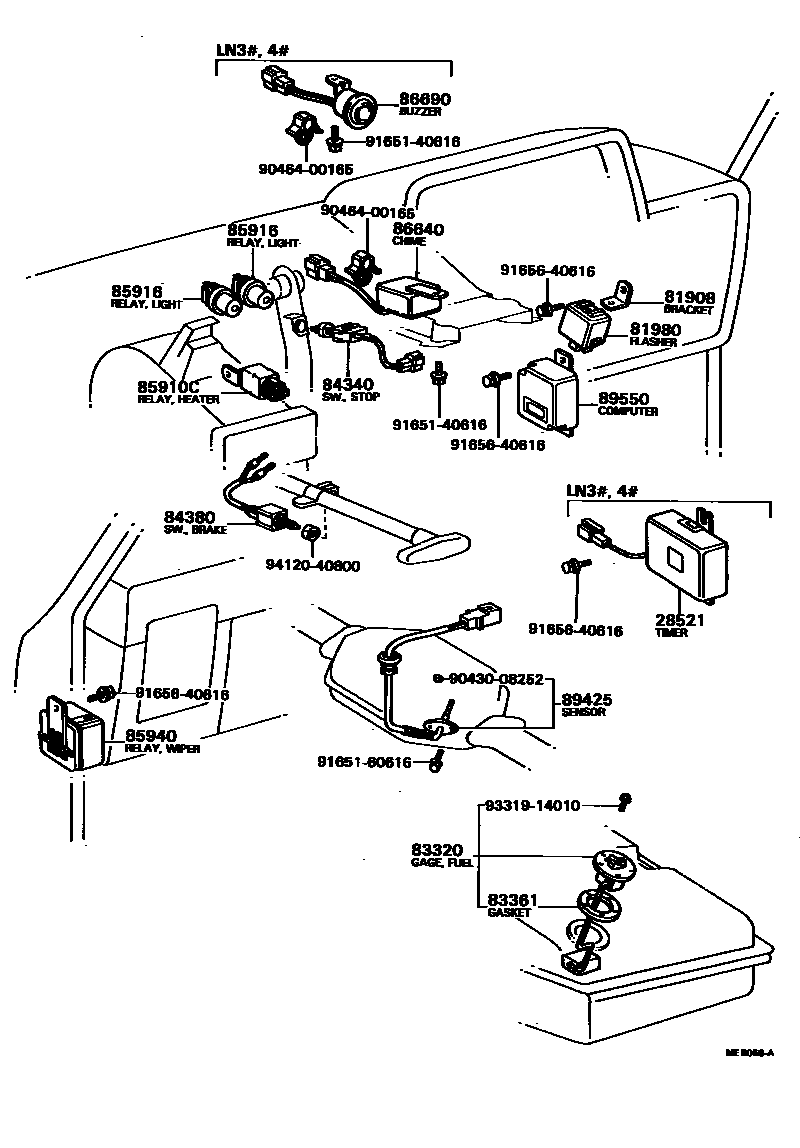

Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 6 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27659 | Solenoid valve resistor | 27659-54050 · 27659-54060 |
| 27700 | Generator voltage regulator assembly | 27700-13010 · 27700-13050 · 27700-56050 |
| 28300 | Starter relay assembly | 28300-54020 · 28300-54040 |
| 28521 | Preheat timer | 28521-54051 · 28521-54061 · 28521-54131 |
| 28610 | Glow plug relay assembly | 28300-54020 · 28300-54040 · 28610-54080 · 28610-54090 · 28610-54180 |
| 28611 | Glow plug relay cover | 28611-54011 |
| 28621 | glow plug resistor | 28621-54030 · 28621-54031 |
| 28631 | glow plug current sensor | 28631-54031 |
| 81908 | Flash bracket sub-assembly | 85999-89101 |
| 81980 | Turn signal flasher relay assembly | 81980-16010 · 81980-22060 · 81980-22070 · 81980-36060 |
| 81990 | Turn signal light relay assembly | 90987-02003 |
| 82600F | Spare fuse | 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 · 99118-62005 · 99118-62910 · 99118-62915 |
| 82611 | fuse box cover | 82611-89105 · 82611-89106 · 82611-89108 · 82611-89109 |
| 82616 | fuse puller | 82616-12010 |
| 82650 | No. 1 circuit breaker assembly | 82650-35010 |
| 83320 | Fuel gauge sensor assembly | 83320-39175 · 83320-39176 · 83320-39185 · 83320-39186 · 83320-39195 · 83320-39196 |
| 83361 | fuel gauge sensor gasket | 77169-14020 · 83361-20030 |
| 83390 | Vacuum warning switch assembly | 83390-30020 |
| 83391 | Vacuum switch | 83391-14010 |
| 83399 | Vacuum switch bracket | 83399-20070 |
| 83420 | Water temperature sensor assembly | 83420-16010 · 83420-20011 · 83420-20020 |
| 83520 | Oil pressure gauge sensor assembly | 83520-55011 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-14010 · 83530-14030 · 83530-36011 |
| 83650 | fuse | 90986-01003 |
| 83651 | fuse clip | 90044-65032 · 90468-23001 |
| 84110 | No. 1 light control switch assembly | 84112-19075 · 84112-19076 · 84112-19245 · 84112-39045 · 84112-39046 · 84112-39135 |
| 84140 | Headlight dimmer switch assembly | 84140-19015 · 84140-29095 · 84140-39025 · 84140-39055 |
| 84210 | Reversing light switch assembly | 84210-10060 · 84210-26010 · 84210-26020 · 84210-35010 · 84210-35020 · 84210-60021 |
| 84210T | Shift point sensor assembly | 84220-35011 · 84220-35040 |
| 84222 | No. 1 transfer case indicator switch | 84222-35011 · 84222-35012 |
| 84233 | Door control light switch assembly (for front door) | 84230-20040 · 84230-89102 · 84231-20060 |
| 84234 | Door control light switch assembly (for rear door) | 84230-89102 · 84231-20060 |
| 84310 | Turn signal switch assembly | 84310-10210 · 84310-10211 · 84310-10220 · 84310-10221 · 84310-14190 · 84310-35120 · 84310-35130 · 84310-35140 · 84310-35141 |
| 84312 | Speaker contact piece | 84312-20011 |
| 84330 | Hazard warning signal switch assembly | 84332-19015 · 84332-39045 · 84332-39095 · 84332-39115 |
| 84335 | Parking light switch assembly | 84332-89108 |
| 84335A | Parking light switch fixing bolt or nut | 90170-11003 |
| 84335C | Parking light switch button | 84331-89106 · 84331-89107 |
| 84340 | brake light switch assembly | 84340-22060 · 84340-22071 · 84340-22072 · 84340-36030 |
| 84380 | Brake warning test switch assembly | 84380-35010 |
| 84450 | Ignition or starter switch assembly | 84450-14021 · 84450-60080 |
| 84461 | Liquid level warning switch | 84461-30030 · 84461-30040 |
| 84650 | Windshield wiper switch assembly | 84652-19135 · 84652-19136 · 84652-19145 · 84652-19146 · 84652-19335 · 84652-39025 · 84652-39026 · 84652-39155 · 84652-39165 |
| 84730 | Heater blower switch assembly | 84732-89104 · 84732-89106 · 84732-89107 |
| 84731 | Heater blower switch button | 84731-12010 |
| 85500 | Cigarette lighter assembly | 85500-20042 · 85500-30340 |
| 85500C | Cigarette lighter relay | 90987-02003 |
| 85910C | Relay assembly (for heater blower motor) | 85913-12010 · 90987-02001 · 90987-02003 · 90987-02004 |
| 85916 | Light control relay | 90987-01001 · 90987-01002 · 90987-01003 |
| 85923 | Choke control relay | 90987-02001 |
| 85931 | Emission control relay | 85925-12010 |
| 85940 | Windshield wiper relay assembly | 85940-26010 · 85940-36010 · 85940-36021 · 85940-89101 |
| 85997 | Relay bracket cover | 85997-89101 |
| 85999 | Combination relay bracket | 55767-89105 · 55767-89106 |
| 85999A | No. 2 relay bracket | 85999-12050 · 85999-26010 |
| 86640 | Warning bell assembly | 86640-10012 |
| 86690 | Speed indicator light buzzer assembly | 86650-36010 · 86650-36020 |
| 89425 | Exhaust gas temperature sensor | 89425-39095 · 89425-39105 · 89425-39225 |
| 89427 | Temperature detection switch | 89428-12030 · 89428-28020 |
| 89429 | oil temperature sensor | 89422-30020 |
| 89550 | Emission control ECU assembly | 89550-35200 |
| 89620 | Ignition assembly | 89620-35130 |
