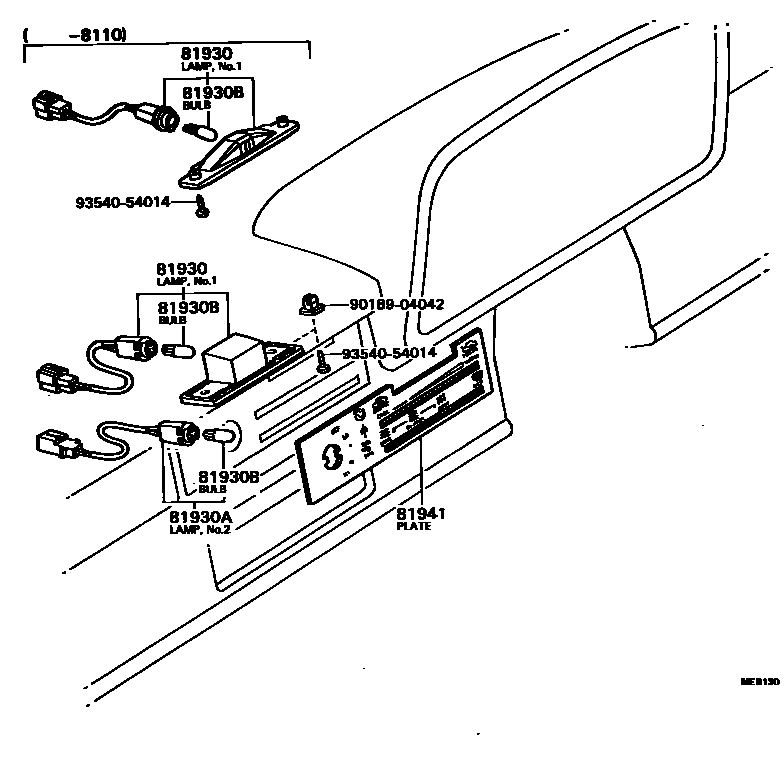

Toyota HILUX indicator light — Figure 8302
Toyota HILUX EPC diagram 8302, indicator light, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81930 | No. 1 heater control indicator light assembly | 81930-89106 · 81930-89107 · 81930-89108 · 81930-89110 |
| 81930A | No. 2 heater control indicator light assembly | 81930-89111 |
| 81930B | Heater control indicator light bulb | 90981-11014 · 90981-11018 · 90981-11022 |
| 81941 | Heater controller nameplate | 55519-89103 · 55519-89105 |
