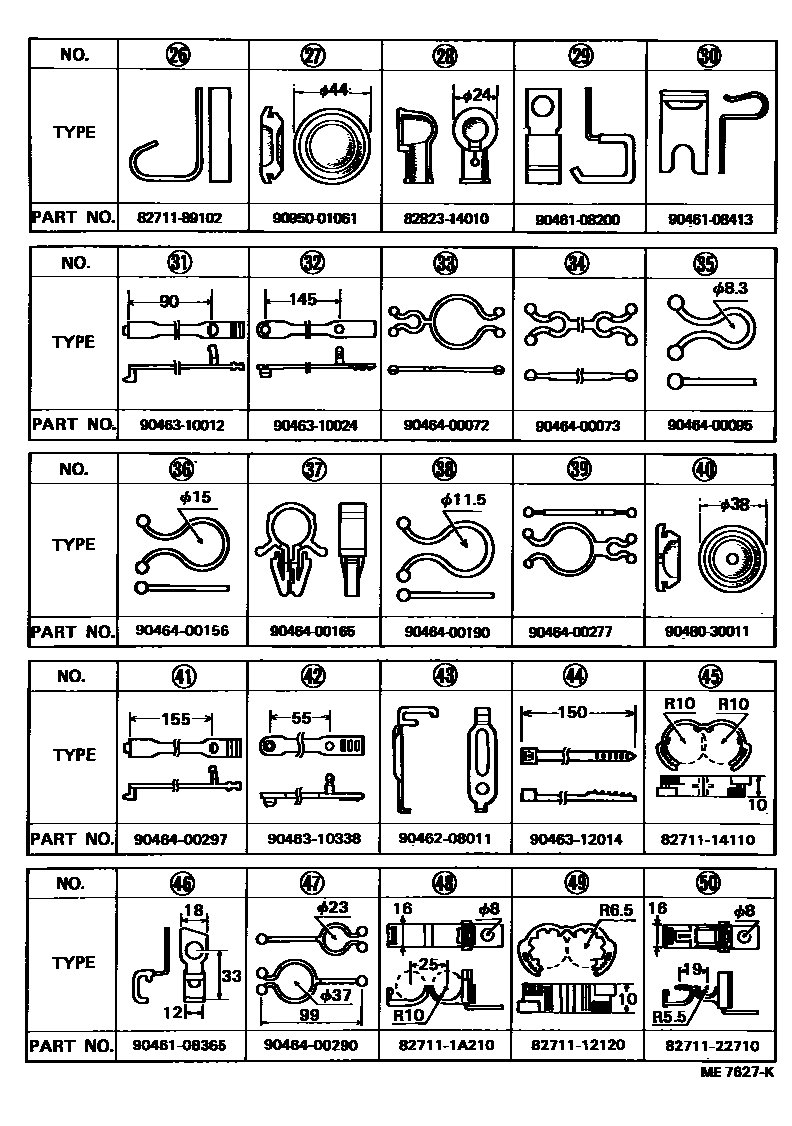

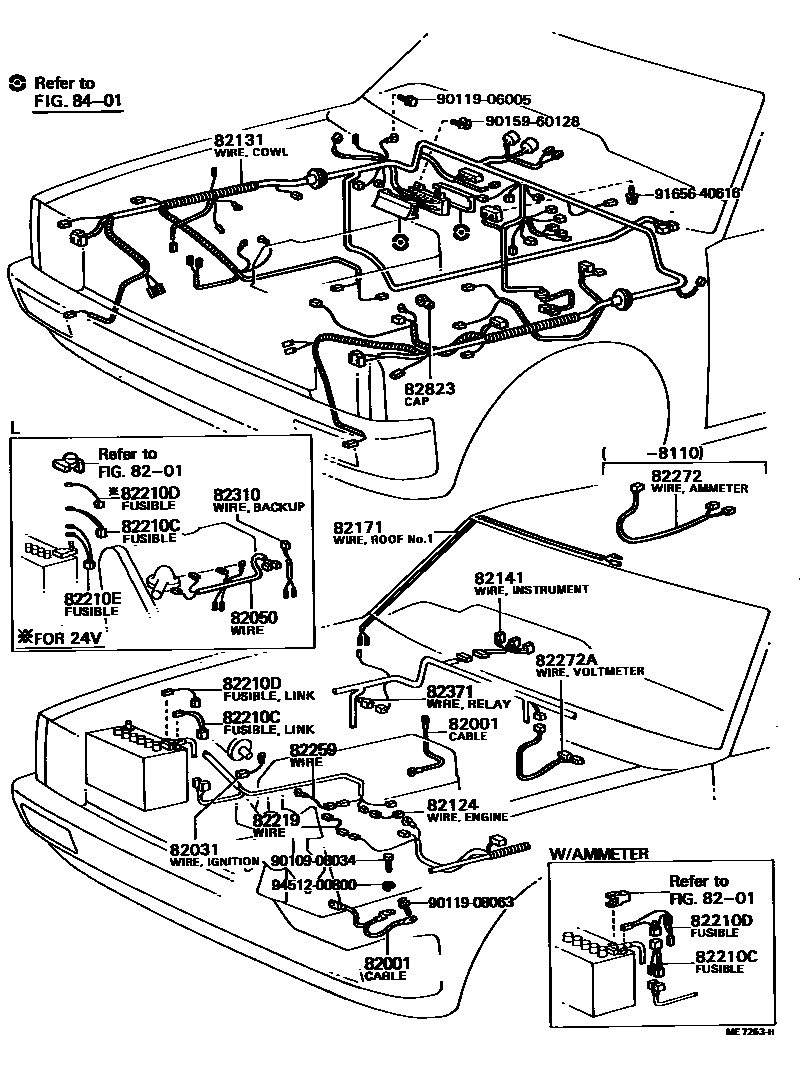

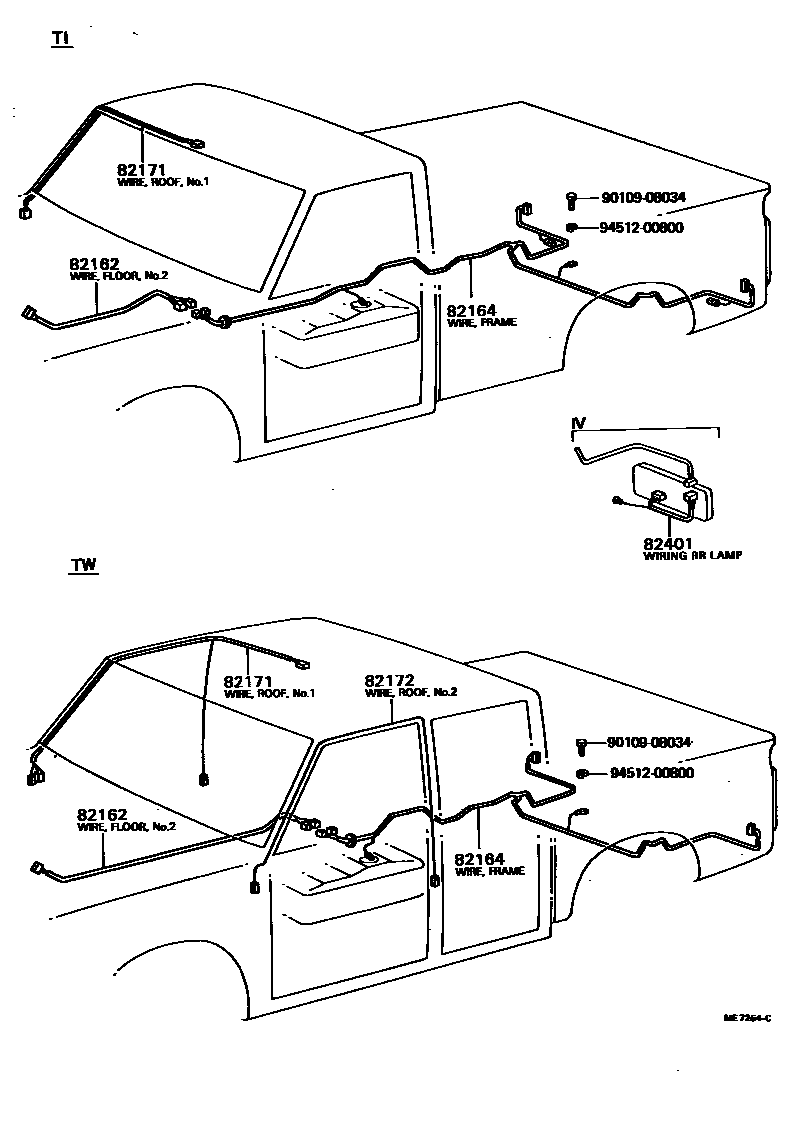

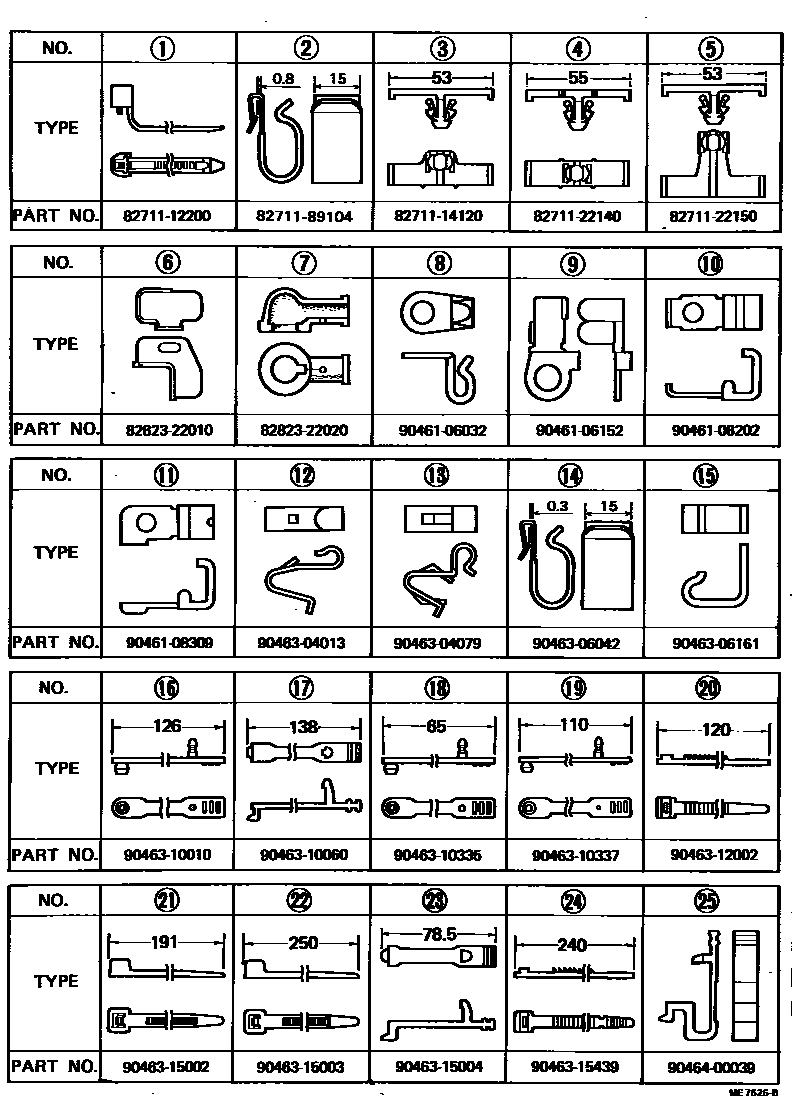

Toyota HILUX 线束和卡夹 — Figure 8202
Toyota HILUX EPC diagram 8202, 线束和卡夹, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07031 · 90980-07130 · 90980-07152 · 90980-07165 · 90980-07174 · 90980-07197 |
| 82031 | Ignition coil harness sub-assembly | 82031-12490 |
| 82050 | Engine wiring harness assembly | 82050-89101 · 82050-89107 · 82121-89103 · 82121-89158 · 82121-95112 |
| 82124 | Engine No. 4 wiring harness | 82124-95110 |
| 82131 | Front panel wiring harness | 82131-89116 · 82131-89117 · 82131-89141 · 82131-89142 · 82131-89209 · 82131-89210 · 82131-89297 · 82131-89421 · 82131-95116 · 82131-95132 · 82131-95183 · 82210-89193 · 82210-89349 · 82210-89350 · 82210-89351 · 82210-89415 · 82210-89416 · 82210-89444 · 82210-95146 · 82210-95174 |
| 82141 | Dashboard wiring harness | 82142-95110 · 82142-95111 |
| 82162 | Floor wiring harness No. 2 | 82162-95110 · 82162-95111 |
| 82164 | Frame wiring harness set | 82164-89101 · 82164-89104 · 82164-89105 · 82164-89112 · 82164-95110 · 82410-89173 · 82410-89174 · 82410-89175 · 82410-95135 |
| 82171 | Roof No. 1 wiring harness | 82171-89101 · 82171-89102 · 82171-89103 · 82171-89104 · 82510-89106 |
| 82172 | Roof No. 2 wiring harness | 82172-89101 · 82172-89102 |
| 82210C | fuse | 90982-08046 · 90982-08078 · 90982-08092 · 90982-08173 |
| 82210D | fuse | 90982-08079 · 90982-08093 · 90982-08122 |
| 82210E | fuse | 90982-08116 · 90982-08175 |
| 82219 | Temperature sensor harness | 82219-22020 |
| 82259 | Distributor wiring harness | 82259-89101 |
| 82272 | Ammeter harness | 82272-95110 |
| 82272A | Voltmeter harness | 82133-95110 |
| 82310 | Wire harness assembly (to reversing light switch) | 82439-89104 |
| 82371 | Wiper relay wiring harness | 82371-89101 |
| 82401 | Rear combination light wiring harness | 82403-89107 |
| 82823 | No. 1 terminal cover | 82823-14010 |
