Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201

Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 2 images and 6 PNC and OE references.

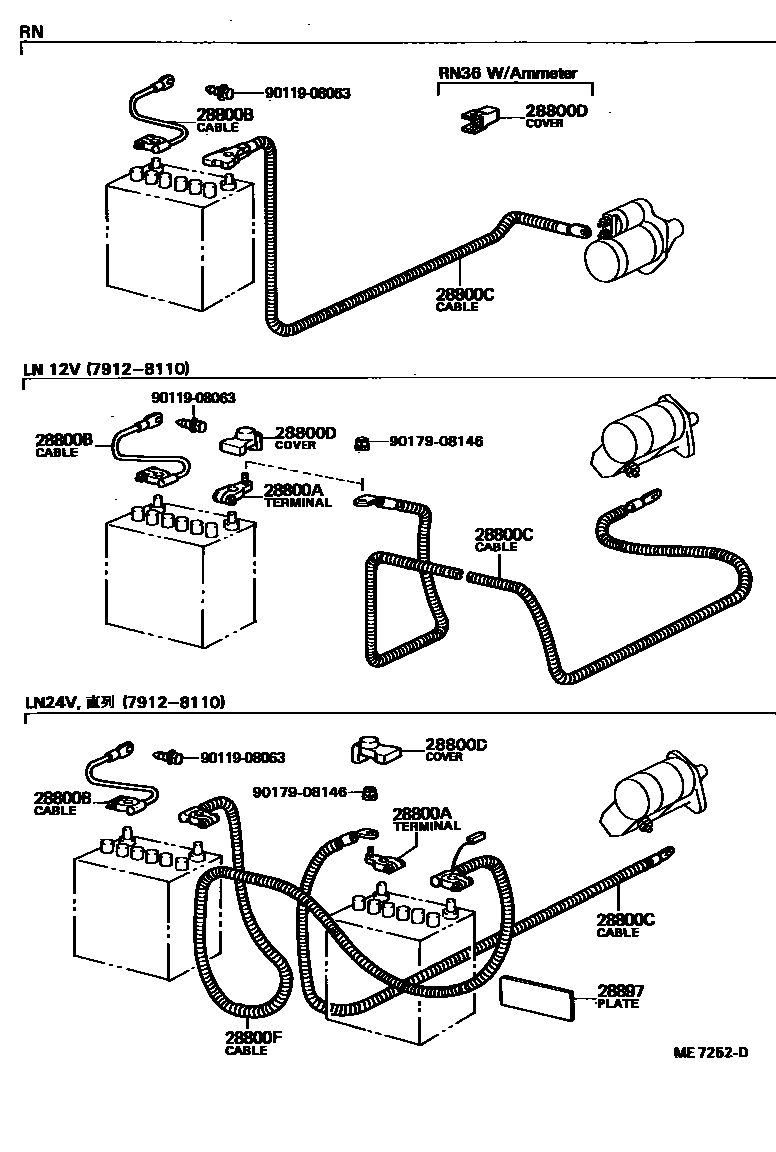

Toyota HILUX 蓄电池和蓄电池电缆 EPC diagram — ME7252D
蓄电池和蓄电池电缆 — ME7252D (197808 – 999999)

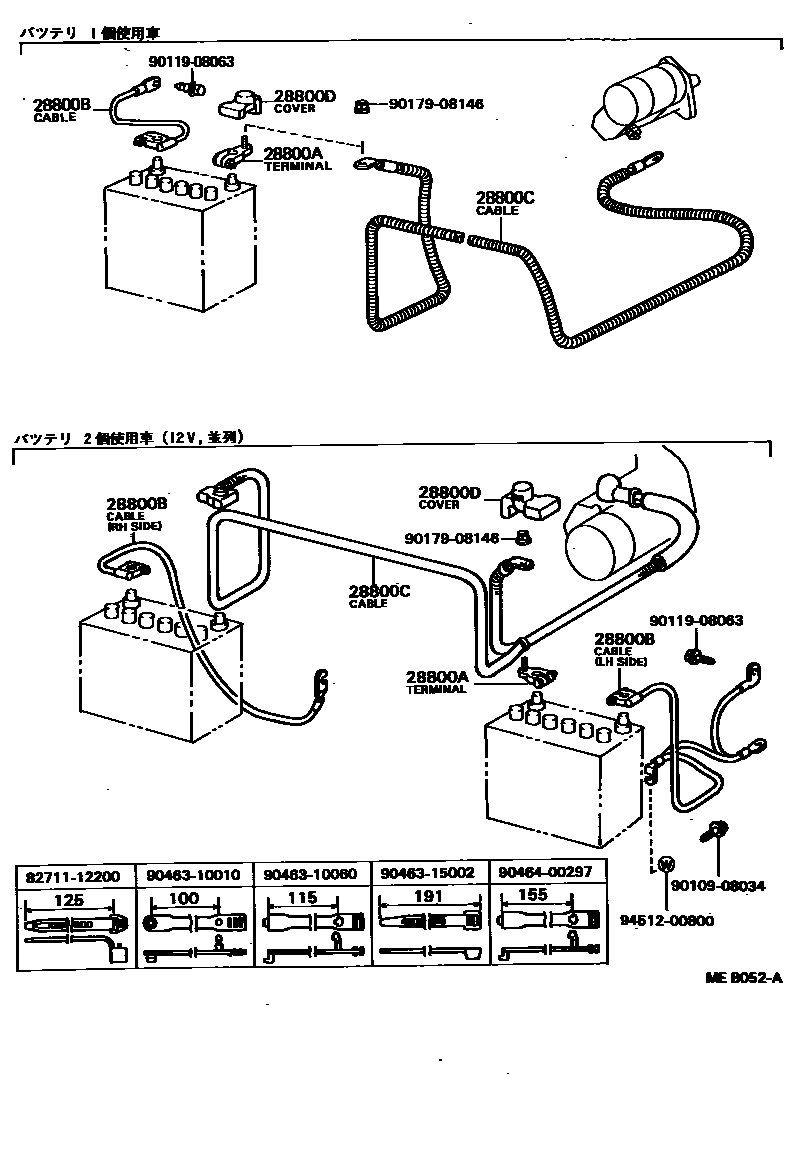

Toyota HILUX 蓄电池和蓄电池电缆 EPC diagram — MEB052A
蓄电池和蓄电池电缆 — MEB052A (198110 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800Abattery positive terminal90982-05005
28800BCable between battery and ground82123-95110 · 90982-02156 · 90982-02157 · 90982-02208 · 90982-02210
28800CCable between battery and starter (for battery to main switch)82122-95112 · 90982-01260 · 90982-01261 · 90982-01329 · 90982-01387 · 90982-01403 · 90982-01404 · 90982-01405 · 90982-01412 · 90982-02210
28800DConnector cover (for battery terminals)82821-12130 · 82821-89101 · 82821-89102
28800FCables between batteries90982-03015
28897Battery warning nameplate28897-54030 · 28897-89101
