Toyota HILUX 后组合灯 — Figure 8111

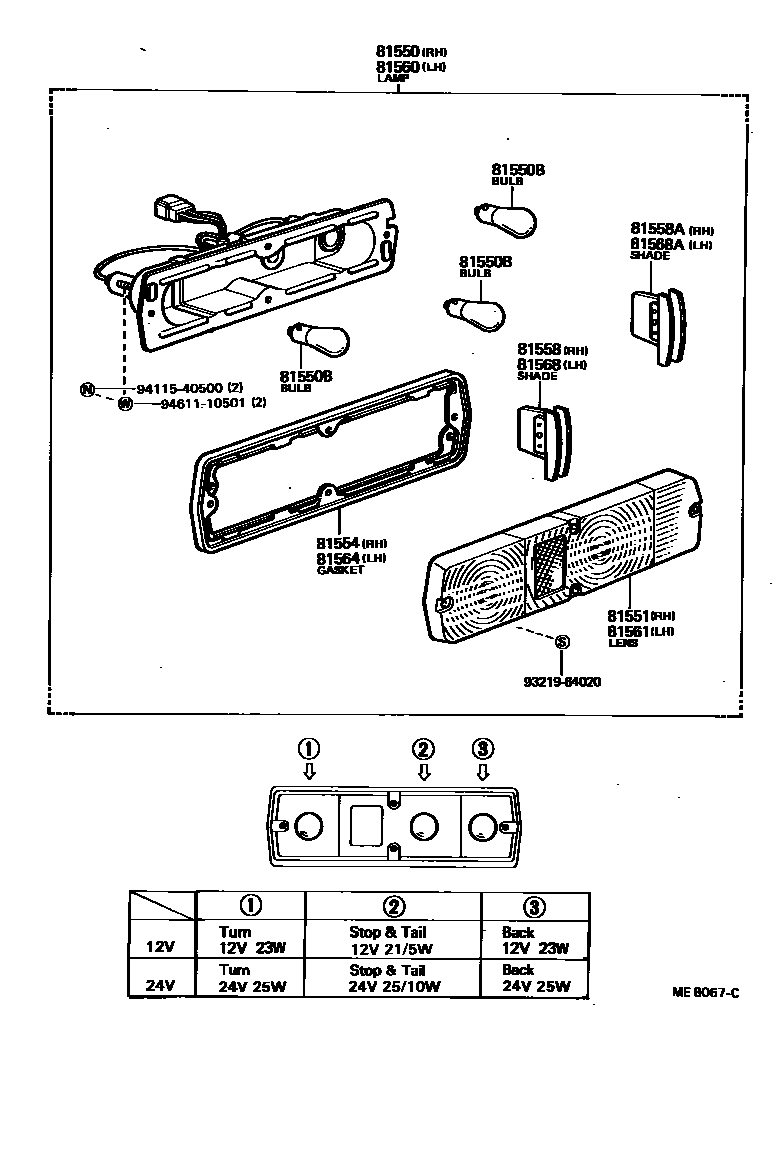

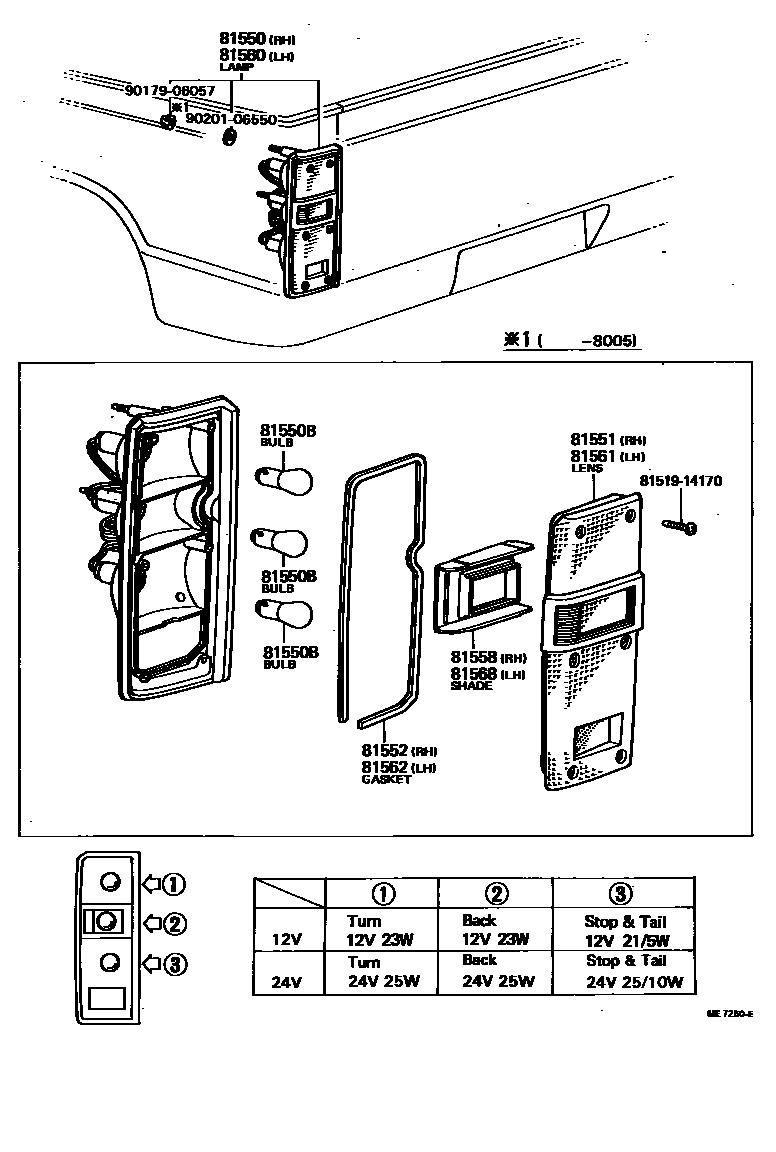

Toyota HILUX EPC diagram 8111, 后组合灯, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-29407 · 81550-29617 · 81550-39495 · 81550-39595 · 81550-39605 · 81550-39635 |
| 81550B | Bulb (for rear combination lights) | 99132-11230 · 99132-21210 · 99134-11250 · 99134-22250 |
| 81551 | Right rear combination lamp shade | 81551-25060 · 81551-89122 |
| 81552 | Right rear combination lamp shade gasket | 81552-89122 |
| 81554 | Right rear combination lamp body gasket | 81552-25060 |
| 81558 | No. 1 right rear combination light lampshade | 81557-25060 · 81557-89122 |
| 81558A | No. 2 right rear combination light lampshade | 81557-25060 |
| 81560 | Left rear combination light assembly | 81560-29397 · 81560-29607 · 81560-39465 · 81560-39555 · 81560-39565 · 81560-39595 |
| 81561 | Left rear combination lamp shade | 81561-25040 · 81561-89122 |
| 81562 | Left rear combination lamp shade gasket | 81552-89122 |
| 81564 | Left rear combination lamp body gasket | 81562-25040 |
| 81568 | No. 1 left rear combination light lampshade | 81557-25060 · 81557-89122 |
| 81568A | No. 2 left rear combination light lampshade | 81557-25060 |
