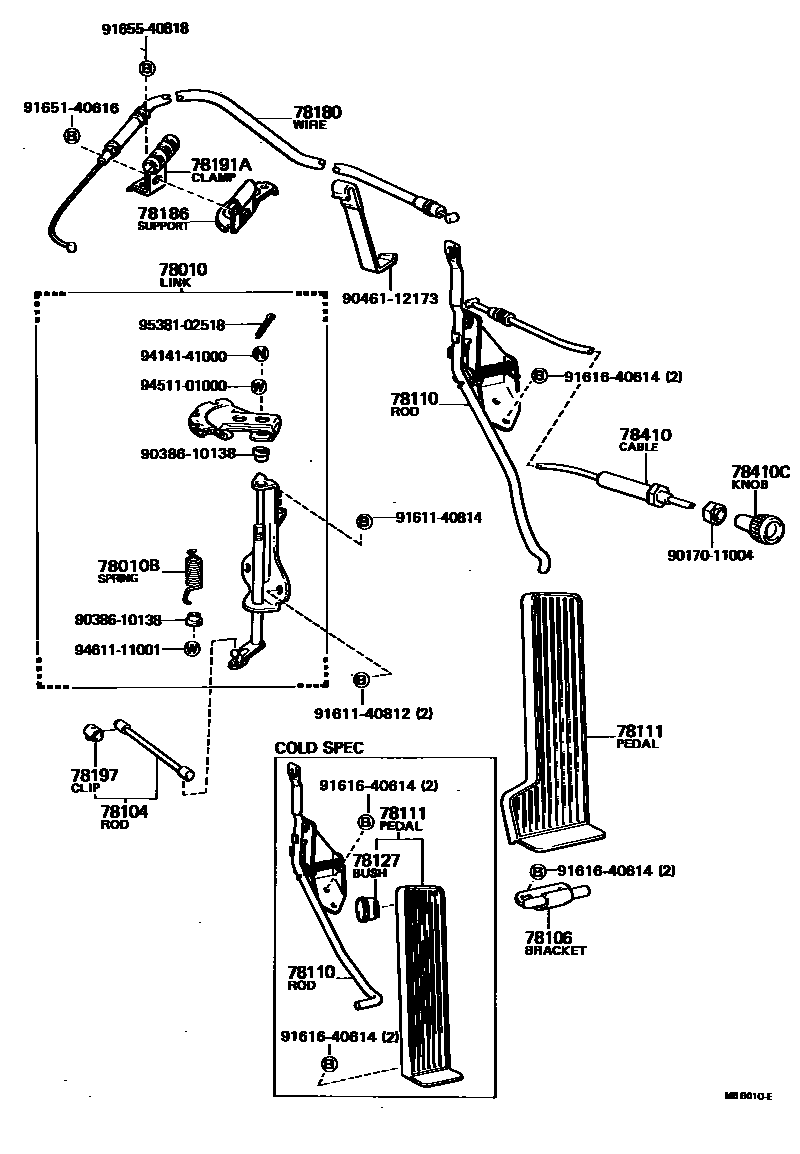

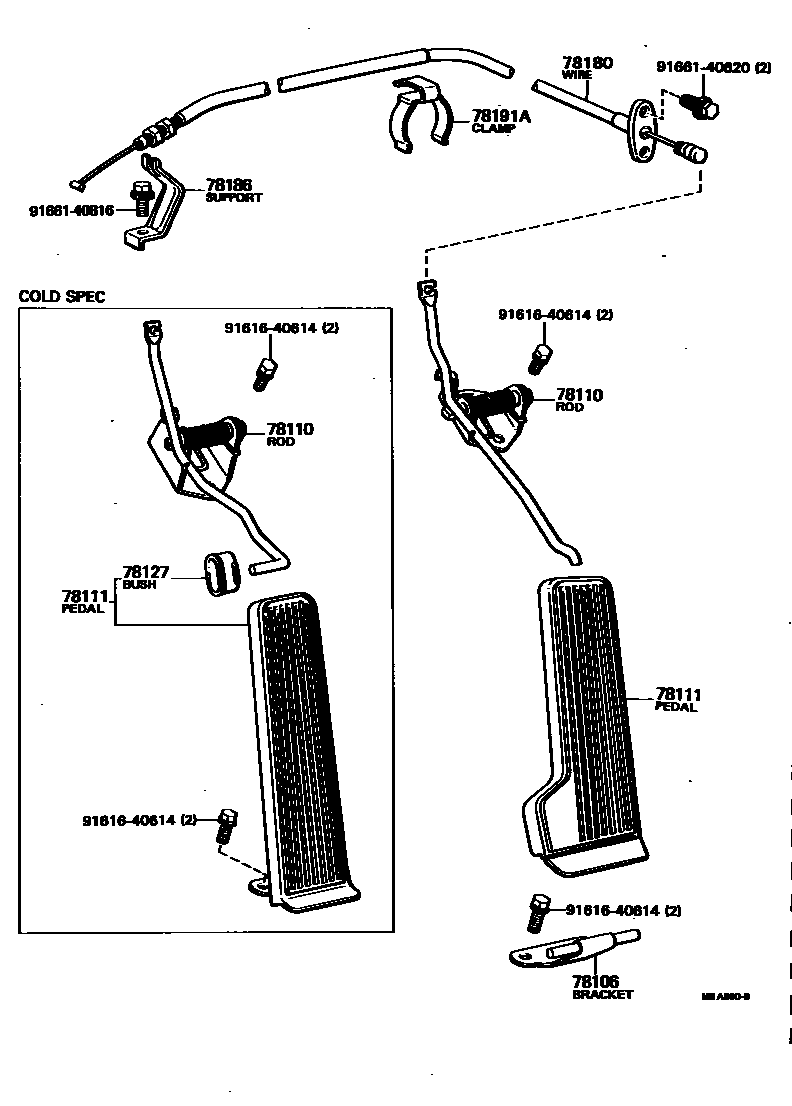

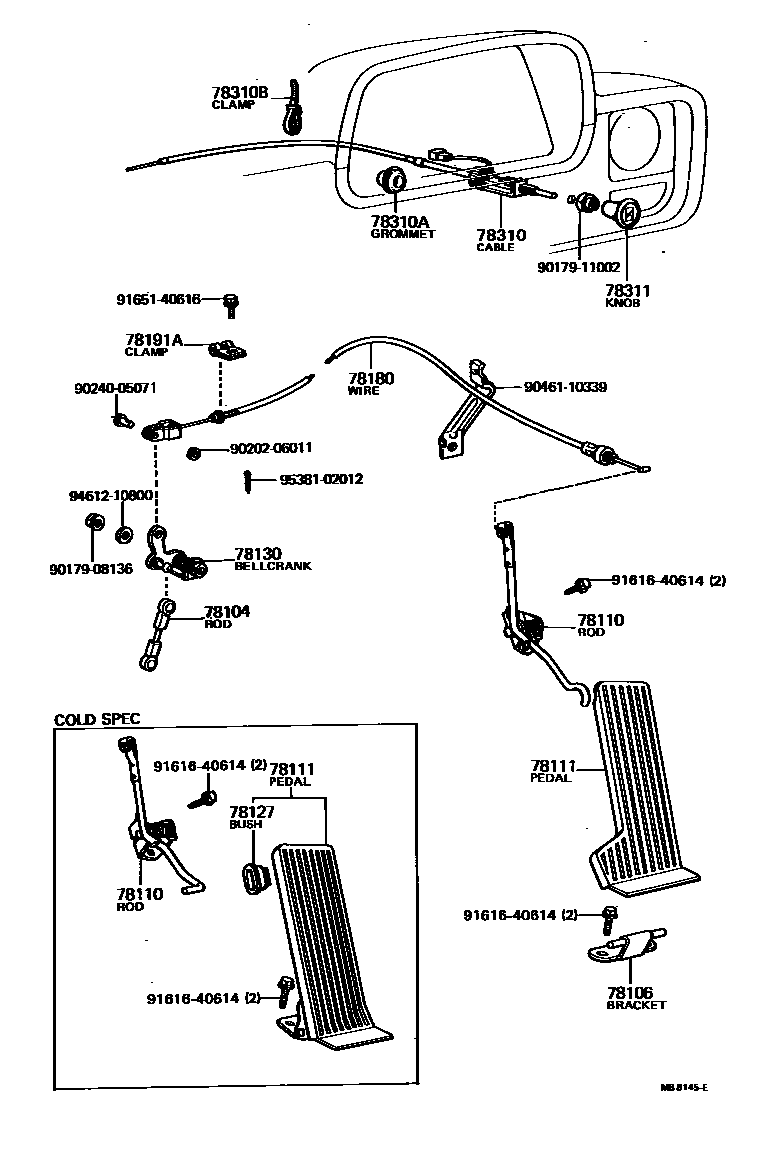

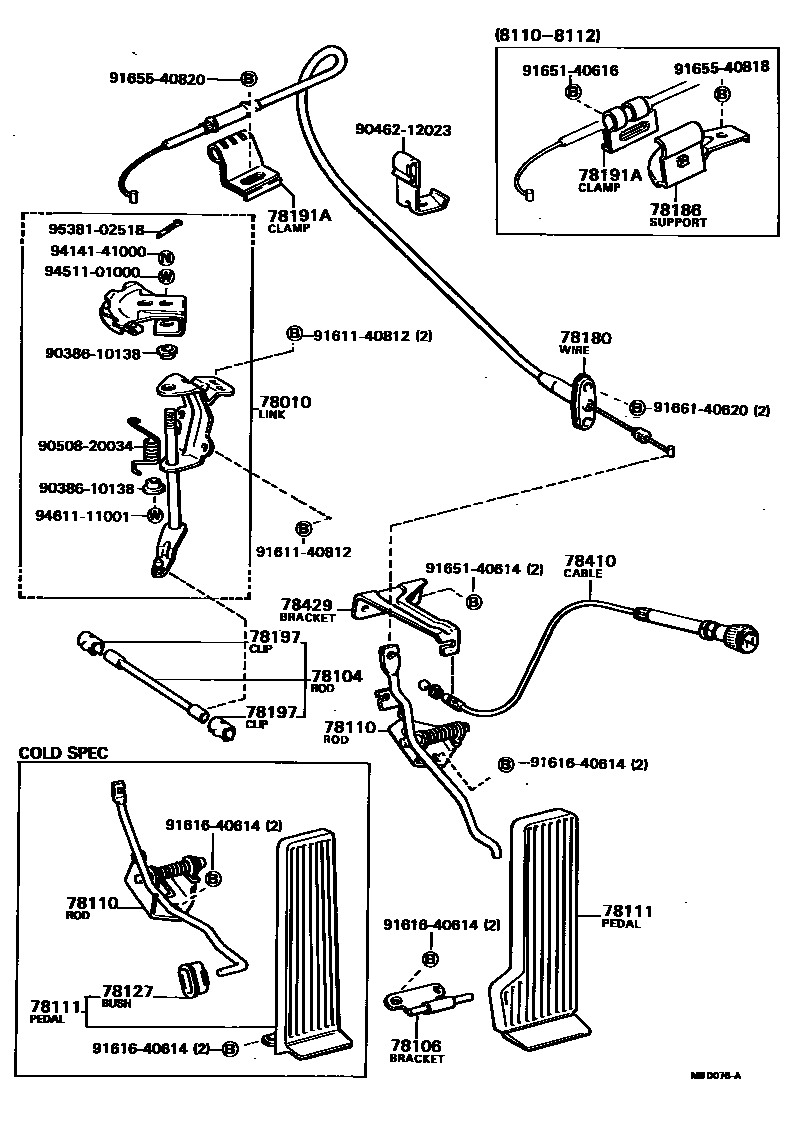

Toyota HILUX accelerator pedal connecting rod — Figure 7851
Toyota HILUX EPC diagram 7851, accelerator pedal connecting rod, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010 | accelerator pedal connecting rod | 78100-89101 · 78100-89102 · 78100-89104 · 78100-95110 |
| 78010B | Torsion spring (for accelerator pedal linkage) | 90508-20016 · 90508-20034 · 90508-23080 |
| 78104 | No. 2 accelerator pedal connecting rod sub-assembly | 78104-30100 · 78104-89104 · 78104-89105 |
| 78106 | Accelerator pedal bracket sub-assembly | 78011-89101 · 78011-95110 |
| 78110 | Accelerator pedal lever assembly | 78120-89101 · 78120-89104 · 78120-89105 · 78120-89107 · 78120-95117 · 78120-95122 · 78120-95128 · 78120-95130 |
| 78111 | accelerator pedal | 78010-89103 · 78010-89105 · 78010-95111 · 78010-95113 · 78111-89102 · 78111-89103 |
| 78127 | No. 2 accelerator pedal bushing | 78127-20010 |
| 78130 | Accelerator pedal right-angle lever assembly | 78130-89108 |
| 78180 | Throttle cable assembly | 78180-89117 · 78180-89120 · 78180-89122 · 78180-89127 · 78180-89140 · 78180-95116 · 78180-95118 · 78180-95120 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78184-95110 · 78186-89106 |
| 78191A | Clip (for throttle cable assembly) | 90461-08148 · 90461-10287 · 90461-10559 · 90463-08235 |
| 78197 | Accelerator pedal ball joint clip | 78197-10010 |
| 78310 | Choke door cable assembly | 78310-89108 · 78310-89111 |
| 78310A | Choke cable retaining ring | 90480-15001 |
| 78310B | Choke cable clip | 90463-12002 |
| 78311 | Choke control cable button | 78311-89101 · 78311-89102 |
| 78410 | Throttle valve control cable assembly | 78401-89101 · 78401-89103 · 78410-95113 |
| 78410C | Throttle Cable Section | 78402-95400 · 78411-30020 |
| 78429 | Throttle lever bracket | 78484-95113 |
