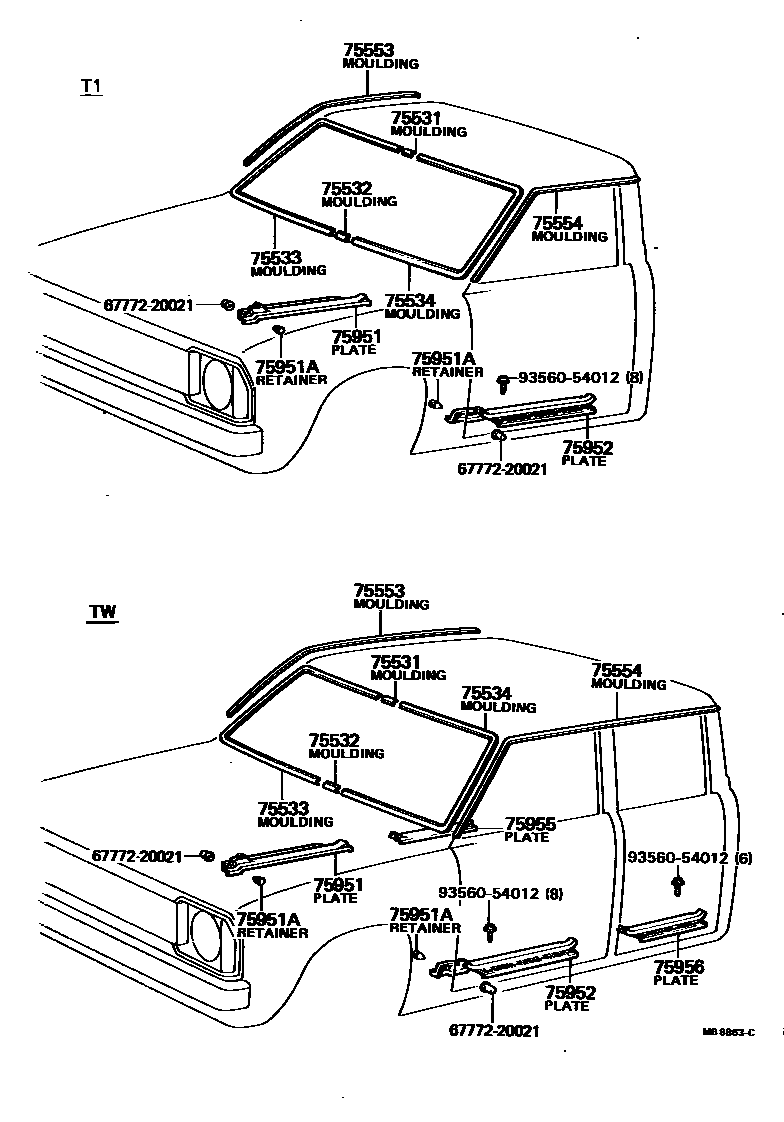

Toyota HILUX 防护条 — Figure 7552
Toyota HILUX EPC diagram 7552, 防护条, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75581-10010 |
| 75532 | Lower windshield protection strip | 75581-10010 |
| 75533 | Windshield right outer protective strip | 75533-89104 |
| 75534 | Windshield left outer protective strip | 75534-89102 |
| 75553 | Drainage groove side decorative strip on the right side of the roof | 75551-89105 · 75551-89106 · 75551-89107 |
| 75554 | Drainage groove side decorative strip on the left side of the roof | 75552-89105 · 75552-89106 · 75552-89107 |
| 75623A | Right front fender outer rear protective strip | 75615-95111 |
| 75624A | Left front fender outer rear protective strip | 75616-95111 |
| 75651 | Right side outer protective strip | 75651-89103 |
| 75651A | No. 1 right rear side panel outer protective strip | 75653-95114 |
| 75651B | No. 2 right rear side panel outer protective strip | 75653-95115 |
| 75652 | Left side outer protective strip | 75652-89103 |
| 75652A | No. 1 left rear side panel outer protective strip | 75654-95114 |
| 75652B | No. 2 left rear side panel outer protective strip | 75654-95115 |
| 75731A | Right front door outer protective strip | 75731-89102 |
| 75732A | Left front door outer protective strip | 75732-89102 |
