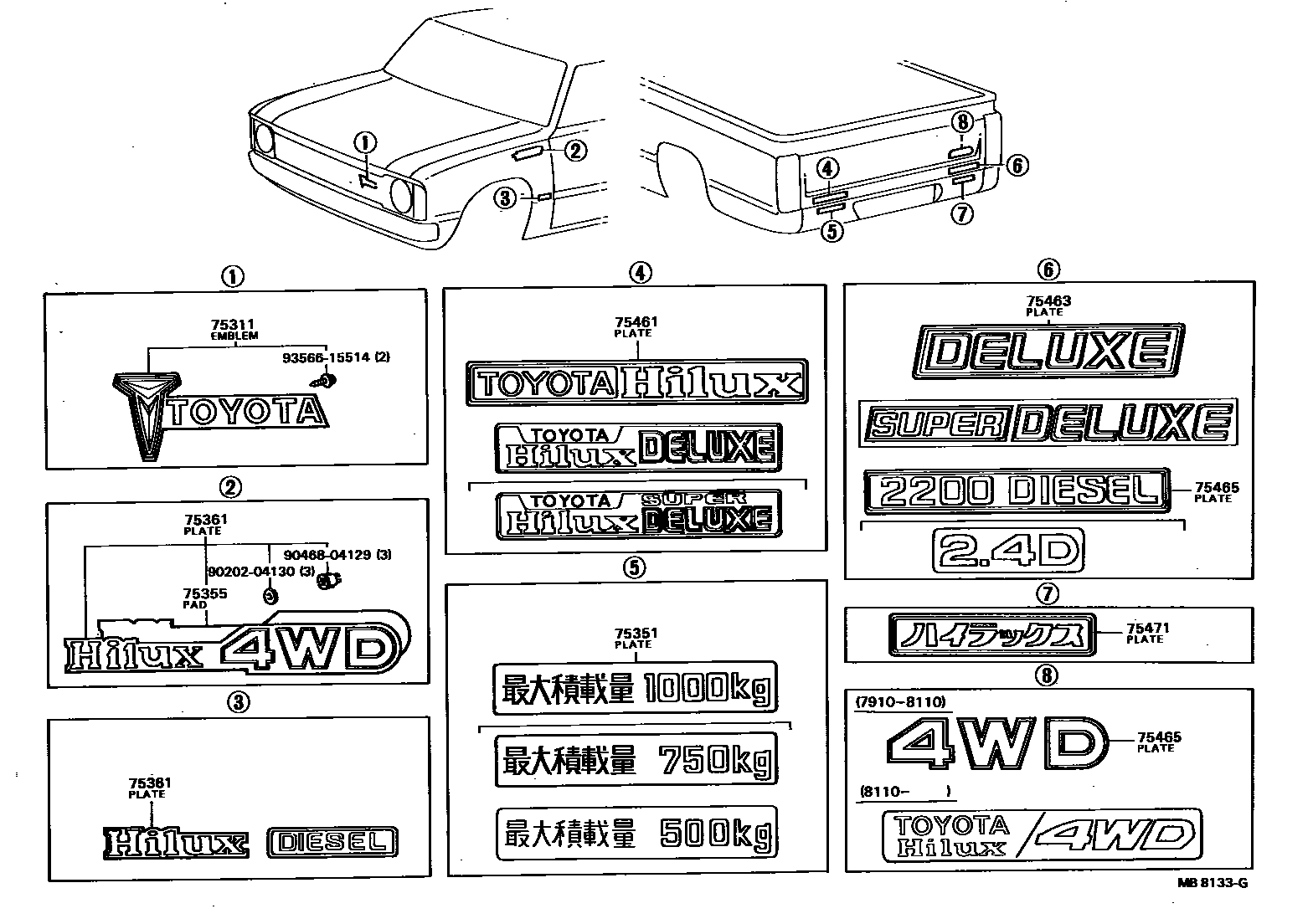

Toyota HILUX 徽标和铭牌 — Figure 7551
Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-39045 · 75311-39105 · 75311-39115 |
| 75351 | Rear No. 6 nameplate (maximum load) | 75471-89104 · 75471-89110 · 75471-95112 · 75471-95113 |
| 75355 | Front fender trim insert | 75365-95111 |
| 75361 | Front fender No. 1 nameplate (model mark) | 75351-89104 · 75351-89108 · 75351-89109 · 75351-89111 · 75351-95113 |
| 75461 | Rear No. 2 nameplate (model mark) | 75471-89107 · 75472-89114 · 75472-89115 · 75472-89116 · 75472-89117 |
| 75463 | Rear No. 4 nameplate (grade mark) | 75474-89101 |
| 75465 | No. 5 nameplate (organization) | 75471-89105 · 75473-89106 · 75475-95110 · 75475-95112 |
| 75471 | Rear body No. 1 nameplate (model mark) | 75475-89101 |
